- Product Details
- {{item.text}}
Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Wisely Software
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wisely
-
Weight (KG):
-
18 KG
-
Marking Area:
-
50mm*50mm/100*100mm
-
Core Components:
-
Laser Source
-
Product name:
-
small laser marking machine
-
Laser source:
-
JPT fiber laser source
-
Laser Power:
-
20W /30w/ (Optional)
-
Marking material:
-
Metal Plastic
-
Laser wavelength:
-
1064nm
-
Keywords:
-
20w30w50w Laser Marking Machine
-
Marking Speed:
-
7000mm\s
-
Working area:
-
50*50mm or 100*100mm
-
Packing:
-
Safety export carton
-
Delivery:
-
By Air/Express
Quick Details
-
Working Accuracy:
-
0.006
-
Graphic Format Supported:
-
PLT, DXF, BMP, HPGL
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
Wisely Software
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Wisely
-
Weight (KG):
-
18 KG
-
Marking Area:
-
50mm*50mm/100*100mm
-
Core Components:
-
Laser Source
-
Product name:
-
small laser marking machine
-
Laser source:
-
JPT fiber laser source
-
Laser Power:
-
20W /30w/ (Optional)
-
Marking material:
-
Metal Plastic
-
Laser wavelength:
-
1064nm
-
Keywords:
-
20w30w50w Laser Marking Machine
-
Marking Speed:
-
7000mm\s
-
Working area:
-
50*50mm or 100*100mm
-
Packing:
-
Safety export carton
-
Delivery:
-
By Air/Express
Product Overview
2021 Wisely Laser New product wholesale price industrial small portable mini hand held fiber laser marking machine logo printer

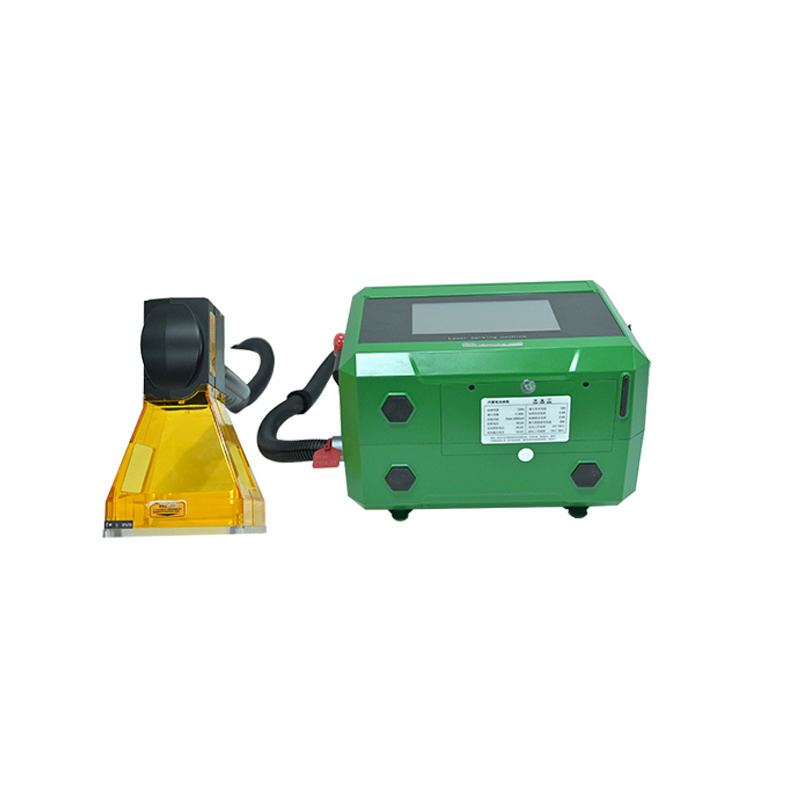

Mini Hand-held Fiber Laser marker is quite portable for marking on the big items, Easy operation could let you mark the items very quick and every place.
Battery built-in could work without the power connection within 5 hours(Max).
Net weight is just 14.5KG,very easy to move and transport.
Easy operation with simple settings on the software
APPLICATIONS:
WISELY Laser Marking Machine for Metal & Plastics. It can work with most metal marking applications, such as Stainless Steel, Brass, Aluminium, Steel, Iron etc, and can also mark on many nonmetallic materials, such as ABS, Nylon, PES, PVC, Makrolon, etc.
1) Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.
2) Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
3) Instrument: Panel Board, Nameplates, Precision equipment, etc.
4) Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5) Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
6) Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
1) Electronic Components: Resistors, Capacitors, Chips, Printed Circuit Boards, Computer Keyboard, etc.
2) Mechanical Parts: Bearings, Gears, Standard Parts, Motor, etc.
3) Instrument: Panel Board, Nameplates, Precision equipment, etc.
4) Hardware Tools: Knives, Tools, Measuring Tools, Cutting Tools, etc.
5) Automobile Parts: Pistons and Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.
6) Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Mini Hand-held Fiber Laser Marker
|
|
1
|
Power
|
20w/30w
|
|
2
|
Laser Wavelength
|
1064nm
|
|
3
|
Standard Marking Area
|
50*50mm/100*100mm
|
|
4
|
Marking Speed
|
7000m/s
|
|
5
|
Fiber laser Source
|
JPT from China
|
|
6
|
Scan Head
|
Wisely Scan Head
|
|
7
|
Controller(Software)
|
Wisely controller&Software
|
|
8
|
File Fomat
|
BMP/DXF/JPEG/PLT/HPGL
|
|
9
|
System Operation Environment
|
WINCE
|
|
10
|
Interface
|
USB/Ethernet
|
|
11
|
Cooling mode
|
Air-cooling
|
|
12
|
Operation Temperature
|
0-40
|
|
13
|
Voltage
|
<300W
|
|
14
|
Packing SIze
|
59*36*34CM
|
|
15
|
Gross Weight
|
18KG
|
Details Images
FAQ
About Battery:
1. What is the capacity of the battery?
12AH
2. How many hours can the battery support the machine to work?
Max. 5 Hours
3. How many hours do we need to charge the battery from 0 to 100%?
4 Hours
4. How many times can the battery be charged from 0 to 100%?
About 500 times
About the MINI Hand-held Laser Marker.
1. Lifespan of JPT fiber laser source: Max. 200 000H
2. Warranty Period: 12 months since the production date
