Quick Details
-
Luminous Efficacy(lm/w):
-
0
-
Place of Origin:
-
China
-
Brand Name:
-
PHILIPS
-
Power factor 100% load (nom.):
-
0.95
-
Input Voltage:
-
220-240 V
-
Ignition voltage (max.):
-
5.0 kV
-
Ignition voltage (min.):
-
3.0 kV
-
Earth Leakage Current (Max):
-
0.5 mA
-
Constant wattage deviation:
-
-5%/+5%
-
Power losses (nom.):
-
5 W
-
Inrush current peak (max.):
-
26 A
-
Cable length from device to lamp:
-
2 m
-
Rated ballast-lamp power:
-
70 W
Quick Details
-
Warranty(Year):
-
1
-
Use:
-
Metal Halide Lamps
-
Matched Tube:
-
Other
-
Luminous Efficacy(lm/w):
-
0
-
Place of Origin:
-
China
-
Brand Name:
-
PHILIPS
-
Power factor 100% load (nom.):
-
0.95
-
Input Voltage:
-
220-240 V
-
Ignition voltage (max.):
-
5.0 kV
-
Ignition voltage (min.):
-
3.0 kV
-
Earth Leakage Current (Max):
-
0.5 mA
-
Constant wattage deviation:
-
-5%/+5%
-
Power losses (nom.):
-
5 W
-
Inrush current peak (max.):
-
26 A
-
Cable length from device to lamp:
-
2 m
-
Rated ballast-lamp power:
-
70 W
HID-PV C 35 _C CDM 220-240V 50_60Hz
HID-PV C 70 _S CDM 220-240V 50_60Hz
HID-PV C 150 _S CDM 220-240V 50_60Hz

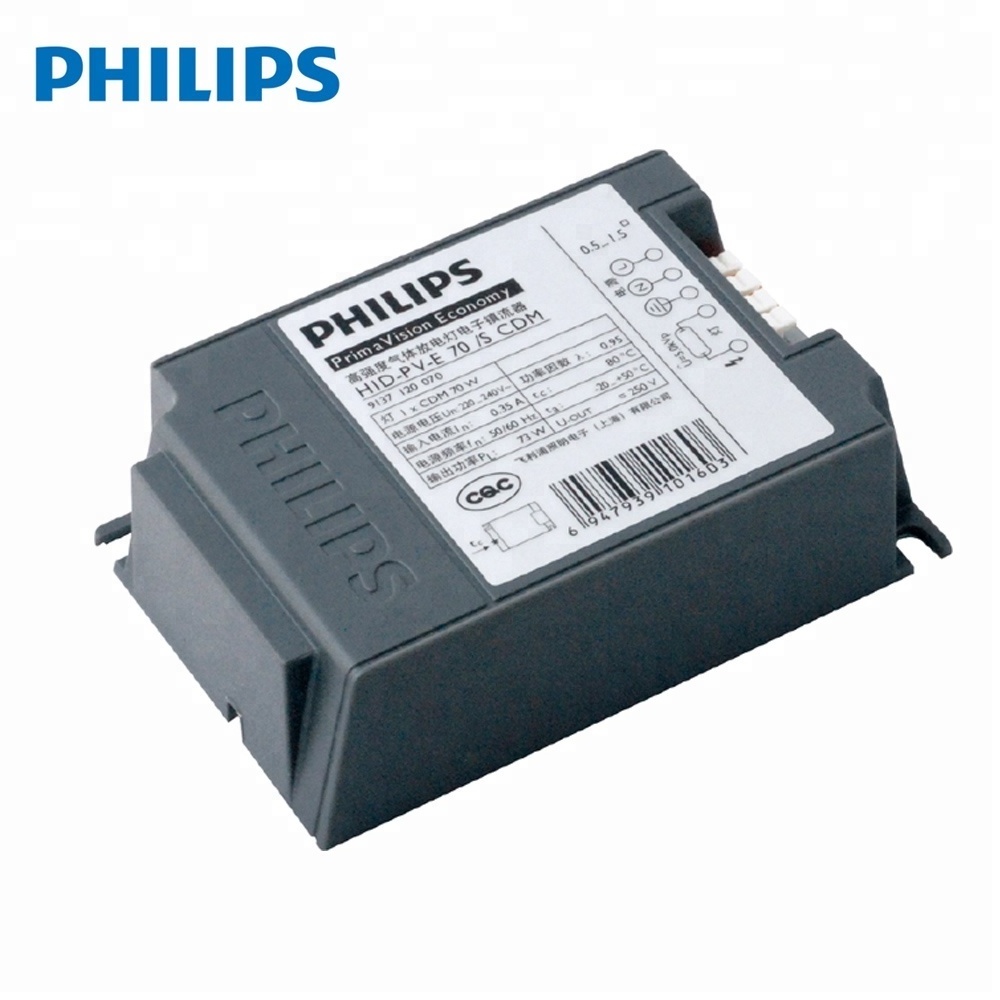

HID-PV E 70 _S CDM 220-240V 50_60Hz
High-quality, compact and lightweight HID electronic gear for optimal and reliable
performance of 20, 35, 50 and 70 W CDM lamps
Product data
General Information
Lamp Type CDM
Suitable For Outdoor Use Yes
Number Of Products On MCB (16A Type-C) (Nom) 20 piece/unit
Automatic Restart Yes
Operating and Electrical
Input Voltage 220 to 240 V
Input Frequency 50 to 60 Hz
Minimum Mains Voltage Operation (Min) 180 V
Operating Frequency (Nom) 50-60 kHz
Power Factor 100% Load (Nom) 0.95
Ignition Voltage (Max) 5 kV
Ignition Voltage (Min) 3 kV
Ignition Switch-Off Time (Nom) 20 min
Mains Voltage Performance (AC) 198-254V
Mains Voltage Safety (AC) 180-264V
Earth Leakage Current (Max) 0.5 mA
Output Peak Voltage (Max) 250 V
Inrush Current Width 0.33 ms
Lamp Power Tolerance -3%/+3%
Input Current (Nom) 0.2 A
Inrush Current Peak (Max) 33 A
Wiring
Cable Capacity Output Wires Mutual (Nom) 150 pF
Cable Length From Device To Lamp 2 m
Ballast Contact Wire Cross Section 0.75-2.50 mm²
System characteristics
Rated Ballast-Lamp Power 70 W
Temperature
T-Ambient (Max) 55 °C
T-Ambient (Min) -20 °C
T-Storage (Max) 85 °C
T-Storage (Min) -25 °C
T-Case Lifetime (Nom) 85 °C
T-Case Switch Off (Min) 95 °C
