*Screw,barrel design and manufacturing absorb European advanced technology
*Screw material:38CrMoAlA,Nitriding treated
*Adopt original famous electric components with high steady running quality.
*Omron temperature controller,ABB frequency inverter,low-voltage breaker adopts Schneider
*Gearbox adopt high torque, low noise, hard gear tooth face gear box
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
SNJZ-1220
-
Thickness:
-
1220mm
-
Max .Width of Product:
-
1220mm
-
Thickness of Product:
-
2-5mm
-
Extruder Capacity:
-
380kg/H
-
Dimension:
-
21*4*3.5m
-
Production Name:
-
PVC Artificial Marble Sheet Extrusion Machine
-
Screw Barrel:
-
Bimetalic
-
Gearbox:
-
Intergrated Vertical Gearbox
-
Main Motor:
-
Siemens
-
Main Electrical Part:
-
Siemens Schneider
-
After Sales Service:
-
Engineer Overseas Service
Quick Details
-
Processing Service:
-
Cutting, Moulding
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sinotech
-
Model Number:
-
SNJZ-1220
-
Thickness:
-
1220mm
-
Max .Width of Product:
-
1220mm
-
Thickness of Product:
-
2-5mm
-
Extruder Capacity:
-
380kg/H
-
Dimension:
-
21*4*3.5m
-
Production Name:
-
PVC Artificial Marble Sheet Extrusion Machine
-
Screw Barrel:
-
Bimetalic
-
Gearbox:
-
Intergrated Vertical Gearbox
-
Main Motor:
-
Siemens
-
Main Electrical Part:
-
Siemens Schneider
-
After Sales Service:
-
Engineer Overseas Service

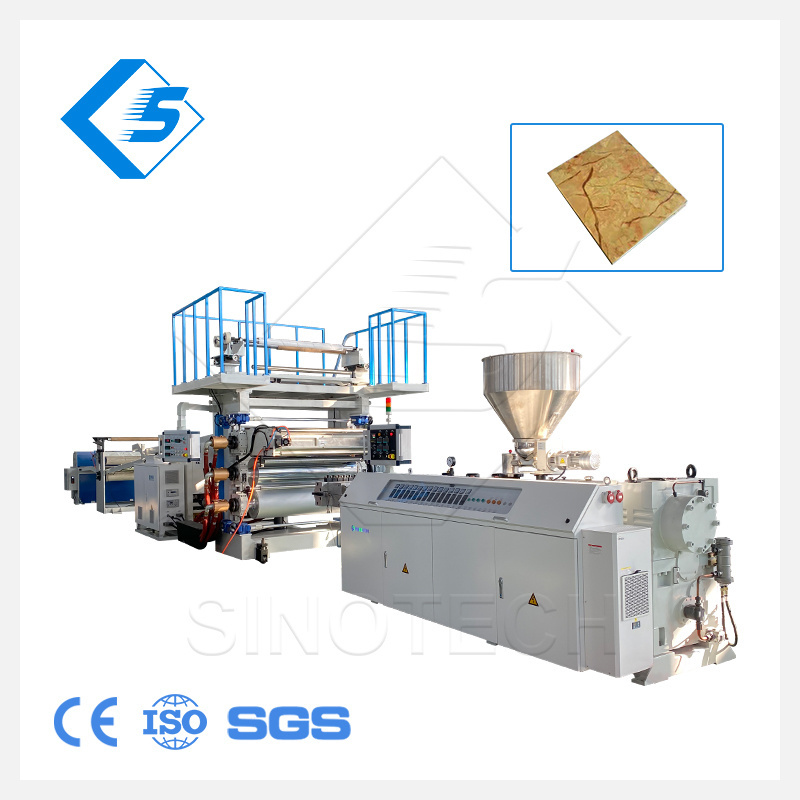

High Quality PVC Artificial Marble Sheet Production Line
PVC Artificial Marble Sheet/Wall Panel/Interior Decoration Board Production Line is used to make PVC imitation marble sheet which have marble, carpet, stones, natural scenery, stereo design on the surface. And the board is popular in the hospital, school, office buildings, shopping malls,supermarkets, transportation and other public places.
Advantages of marbel sheet/board:
(1) Green environmental protection, does not contain formaldehyde,non-toxic harmless, non radioactive pollution, no pollution to the environment, belong to the green environmental protection products, can be recycled
(2) PVC super wear-resistant floor surface has a layer of special by high-tech processing transparent wear-resistant layer, withwear resistance strong, so PVC floor more and more popular in the hospital,in school, office buildings, shopping malls,supermarkets, transportation and other places
(3) Waterproof, moisture-proof, water is not deformation, non slip PVC material,strong anti slippery , can eliminate the
elderly,children's anxiety.
(4) Strong elastic shock, comfortable.
(5) Safety, insulation, flame retardant, corrosion resistance, acid and alkali
(6) Novel color, a variety of colors available for selection, brilliant color,natural and vivid color, any spell group shape,
highlight the individuality color.
(7) Installation convenience,convenient construction sawing, planing, nail, glue free paint.
(8) Long service life can reach more than 20 years.
(1) Green environmental protection, does not contain formaldehyde,non-toxic harmless, non radioactive pollution, no pollution to the environment, belong to the green environmental protection products, can be recycled
(2) PVC super wear-resistant floor surface has a layer of special by high-tech processing transparent wear-resistant layer, withwear resistance strong, so PVC floor more and more popular in the hospital,in school, office buildings, shopping malls,supermarkets, transportation and other places
(3) Waterproof, moisture-proof, water is not deformation, non slip PVC material,strong anti slippery , can eliminate the
elderly,children's anxiety.
(4) Strong elastic shock, comfortable.
(5) Safety, insulation, flame retardant, corrosion resistance, acid and alkali
(6) Novel color, a variety of colors available for selection, brilliant color,natural and vivid color, any spell group shape,
highlight the individuality color.
(7) Installation convenience,convenient construction sawing, planing, nail, glue free paint.
(8) Long service life can reach more than 20 years.
The difference between pvc artificial marble sheet and real marble sheet:
|
Real marble sheet ×
|
Artificial marble sheet √
|
|
Real marble will suffer sulfur dioxide and the price is higher
|
1.The surface of artificial sheet could be changed according to customer's request freely.
In addition,it is very important that the installation is very easier and save a lot of labor cost.
2. PVC is economic and environment friendly.It will take more market share gradually. 3. The lamination is achieved online and don't need any glue or other laminator.After producing this board,if you use UV machine,it would make the board much harder and brighter. |
Final Products
PVC imitation marble sheet is 100% water proof, rigid-surfaced, nonflammable and nontoxic new material, which is widely used for interior decoration in house, hotel, resort facility, and offices.
Main Technical Parameter
|
Model
|
Unit
|
SNJZ-1220
|
|
Suitable material
|
|
PVC
|
|
Max .width of product
|
mm
|
1220
|
|
Thickness of product
|
mm
|
2--5
|
|
Extruder capacity
|
Kg/h
|
380
|
|
Installed capacity(approx)
|
kw
|
168
|
|
Dimension (L*W*H)(approx)
|
m
|
21*4*3.5
|
|
Total weight(approx)
|
t
|
17
|
|
Name
|
Quantity
|
|
SRL-Z type of hot/cool mixer
|
1set
|
|
Crusher
|
1set
|
|
Miller
|
1set
|
|
Air compressor
|
1set
|
Details
*Connection method of T-die and machine head: Flange type with bolt connection
*Die model: Cloth rack type
*Width of die layer: 1350mm
*Height of die lip open: 2mm-8 mm
*Die model: Cloth rack type
*Width of die layer: 1350mm
*Height of die lip open: 2mm-8 mm
*The roller surface with quenching treatment, then chrome plated and polished
*The hardness of base material >HRC50
*The inner structure of roller : reinforced type
*Model :Stand alone type
*Heat-conducting medium :High temperature heat conducting oil
*Cooling medium :Soft water
*Temperature control accuracy :±1 degree
*Heating unit :1,Stainless steel electric heating rod
*Heating power:16KW*3=48KW
*Heat-conducting medium :High temperature heat conducting oil
*Cooling medium :Soft water
*Temperature control accuracy :±1 degree
*Heating unit :1,Stainless steel electric heating rod
*Heating power:16KW*3=48KW
*Speed control by frequency inverter
*Compacting driving by pneumatic
*With adopts wear-resisting rubber roller
*Traction method : Active friction traction
*Roller size : Φ237mm*1500mm
*Material of roller : Rubber
*Clamping method : Pneumatic clamping
*Driving method Motor :2KW
*Traction speed : 0.4m-3.5m/min .
*Roller size : Φ237mm*1500mm
*Material of roller : Rubber
*Clamping method : Pneumatic clamping
*Driving method Motor :2KW
*Traction speed : 0.4m-3.5m/min .
*Max cutting width : 1500mm
*Max. Cutting length : 2500mm
*Cutting thickness range : 2mm -8mm
*Motor power : 4KW
*Fixed length switch : Photoelectric sensor
*Max. Cutting length : 2500mm
*Cutting thickness range : 2mm -8mm
*Motor power : 4KW
*Fixed length switch : Photoelectric sensor
Processing Flow:
500/1000 Mixer→Auto loader→SJSZ80/156 conical twin screw extruder →Mould→ Three calender(online laminating) →Edge cutter→Hual off machine→ Transversal cutter → Conveyor→UV treatment →Final PVC marble sheet
500/1000 Mixer→Auto loader→SJSZ80/156 conical twin screw extruder →Mould→ Three calender(online laminating) →Edge cutter→Hual off machine→ Transversal cutter → Conveyor→UV treatment →Final PVC marble sheet
