- Product Details
- {{item.text}}
Quick Details
-
Size:
-
12400*2500*3550mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-

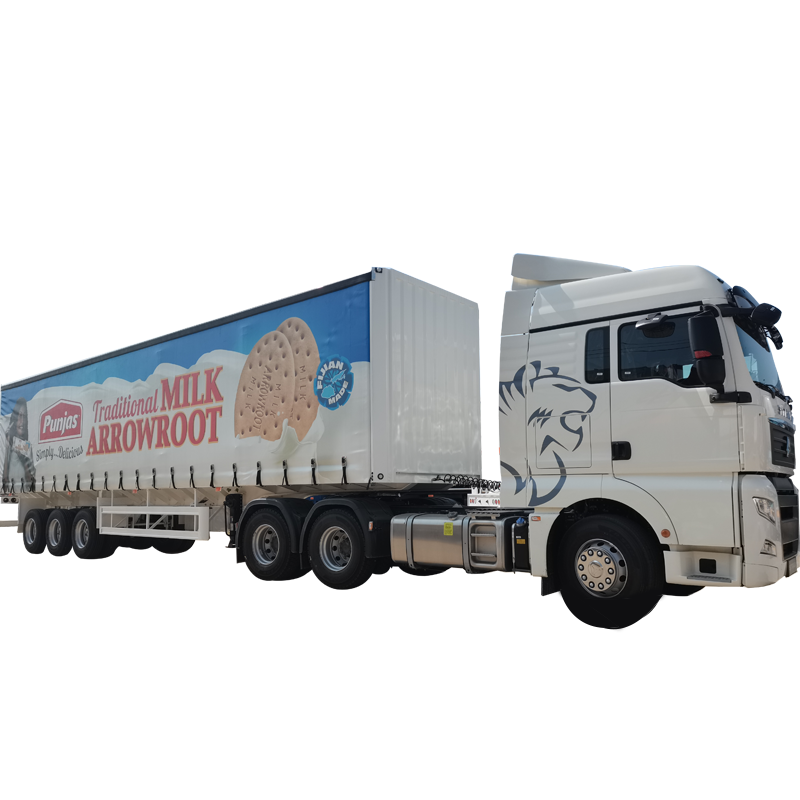

Van Truck Trailer
-
Axle:
-
13T/16T, FUWA/BPW/SHENGRUN, etc
-
Function:
-
Cargo Transport
-
Suspension:
-
Mechanical Suspension
-
Tare Weight:
-
Approx. 6.2 T
-
Color:
-
Customized Color
-
Rim:
-
9.00*22.5/8.00-20/8.5-20
-
King pin:
-
Jost brand 2.0 or 3.5 inch
-
Side wall:
-
600 mm height (can be customized)
-
Twist locks:
-
Optional
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
>30000 kg
-
Brand Name:
-
LuJun
-
Size:
-
12400*2500*3550mm
-
Place of Origin:
-
Shandong, China
-
Product name:
-
Van Truck Trailer
-
Axle:
-
13T/16T, FUWA/BPW/SHENGRUN, etc
-
Function:
-
Cargo Transport
-
Suspension:
-
Mechanical Suspension
-
Tare Weight:
-
Approx. 6.2 T
-
Color:
-
Customized Color
-
Rim:
-
9.00*22.5/8.00-20/8.5-20
-
King pin:
-
Jost brand 2.0 or 3.5 inch
-
Side wall:
-
600 mm height (can be customized)
-
Twist locks:
-
Optional
Product Description
Details Images
Features:
Lujun sidewall trailer choose Q345B carbon high-tensile steel material, welded by automatic Submerged-Arc processes. Sidewall trailer can be used to transport many kinds of objects, from boxes to bulk cargo. Its side panel can be opened, and it is more convenient to unload cargo. Suitable for the mid/long distance transportation of the mid/heavy duty and bulk cargo. The high side cargo trailer can be added with a container turn lock to transport the container. We adopt world famous brand of parts, like JOST, WABCO braking valve etc. This makes the trailer not only increase long serivce life but aslo improve operating efficiency and save maintenance costs.
We have 2 axle sidewall trailer, 3 axle dropside trailer, 4 axle high side trailer, grain trailer and the sidewall drawbar trailer. And load capacity has 30/40/60/80/100 tons for your choice. Customizable color and side wall height.
We are a professional manufacturer of semi trailers, provide customized service, design as the customers’ every request.
We have a professional trailer design department , rich production experience, short delivery time. Our factory has passed ISO9001 quality system certification. Our phone service 24 hours service for you. Our cooperation can be ODM or OEM mode.
Product Paramenters
|
Model
|
Specification of Commodity
|
|
Dimensions(L*W*H)
|
12500x2500x3800mm
|
|
BOX outside/inside （L*W*H）
|
（outside）12150x2500x2400
（inside）11.96*2.33*2.394 Volume64CBM |
|
Loading capacity
|
50tons
|
|
Main Beam
|
The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm,middle plate is 8mm
|
|
Wheel base MM
|
1200/7150+1310+1310/1530
|
|
Front/behind beam
|
2800C/standards 2800
|
|
King pin
|
50/90#
|
|
Axle
|
Fuwa 3*13tons
|
|
Tire
|
12R22.5 12 units
|
|
Steel ring
|
9.0
|
|
Suspension
|
Fuwa brand
|
|
Steel spring number
|
Leaf spring Suspension 10/10/10
|
|
Leg
|
JOST
|
|
ABS
|
Kemi 4S3M
|
|
Relay valve
|
WABCO
|
|
Air Chamber
|
Aluminum alloy Air Chamber 40L * 2
|
|
Brake Air Chamber
|
Four double and two single chamber
|
|
Lamps
|
LED
|
Packing & Delivery
We usually adopt shipping by bulk cargo, flat rack, container container and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity).
Packing:Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
After-sales Service:
1.12months for main parts (engine, axle, body and beam, etc).
2. Technical Support by phone Whatsapp or email around the clock.
3.Lifelong Parts Supports.
4. Engineer available service oversea.
Why Choose Us
With the domestic first-class production equipment and the most advanced production line, we get the leading position in the same
industry. Companies focus on new product development and product upgrading, with technology information station in more than 20
countries in more than 50 areas, in order to obtain the most advanced product information. It has technical cooperation with
dozens of universities and research institutes in China, including Shandong University School of mechanical engineering, Shandong
University of Technology School of transportation and vehicle engineering, and has always been at the leading level in the
industry. The company's main products are all kinds of skeleton trailer and flatbed trailer truck for container transporting, all
kinds of dump trailer truck, all kinds of lowbed trailer and special trailer truck for engineering machinery transportation, all
kinds of liquid tank, dry powder tank, LPG tank, LNG tank, various types of special vehicle transporting all kinds of fruits,
vegetables, building materials, timber, sheet, wire, glass, clothing, daily necessities and so on. The total annual production
volume of the company is 5000 units, of which 1000 units are semi trailer vehicles, 1500 units are container trailers, 800 units
are dump trailers, 800 units are modified vehicles, and 900 units tank trailers and other types of special vehicles. The products
are sold throughout the country and also exported to Nigeria, Russia, Mongolia, Burma, Japan, Korea, Vietnam, New Zealand, South
Africa, Congo, Australia and other fifty-three countries, the company has after-sale service department, commitments to solve
within 24 hours at the distance of 1000 km, no more than 72 hours to solve more than 1000 km.
"Innovation, creature, creating a brand, creating a regional bridgehead" is a strategy that is adhered to by each person from
Lujun. We will keep pace with the times. Using Lujun vehicle, creating continuously glory.
industry. Companies focus on new product development and product upgrading, with technology information station in more than 20
countries in more than 50 areas, in order to obtain the most advanced product information. It has technical cooperation with
dozens of universities and research institutes in China, including Shandong University School of mechanical engineering, Shandong
University of Technology School of transportation and vehicle engineering, and has always been at the leading level in the
industry. The company's main products are all kinds of skeleton trailer and flatbed trailer truck for container transporting, all
kinds of dump trailer truck, all kinds of lowbed trailer and special trailer truck for engineering machinery transportation, all
kinds of liquid tank, dry powder tank, LPG tank, LNG tank, various types of special vehicle transporting all kinds of fruits,
vegetables, building materials, timber, sheet, wire, glass, clothing, daily necessities and so on. The total annual production
volume of the company is 5000 units, of which 1000 units are semi trailer vehicles, 1500 units are container trailers, 800 units
are dump trailers, 800 units are modified vehicles, and 900 units tank trailers and other types of special vehicles. The products
are sold throughout the country and also exported to Nigeria, Russia, Mongolia, Burma, Japan, Korea, Vietnam, New Zealand, South
Africa, Congo, Australia and other fifty-three countries, the company has after-sale service department, commitments to solve
within 24 hours at the distance of 1000 km, no more than 72 hours to solve more than 1000 km.
"Innovation, creature, creating a brand, creating a regional bridgehead" is a strategy that is adhered to by each person from
Lujun. We will keep pace with the times. Using Lujun vehicle, creating continuously glory.
