keyence mdx 3 axis radian co2 for plastic lights jeep accessories uv tire machine 60w mini metal fiber laser marker 8x4
keyence mdx 3 axis radian co2 for plastic lights jeep accessories uv tire machine 60w mini metal fiber laser marker 8x4
keyence mdx 3 axis radian co2 for plastic lights jeep accessories uv tire machine 60w mini metal fiber laser marker 8x4
keyence mdx 3 axis radian co2 for plastic lights jeep accessories uv tire machine 60w mini metal fiber laser marker 8x4
keyence mdx 3 axis radian co2 for plastic lights jeep accessories uv tire machine 60w mini metal fiber laser marker 8x4
keyence mdx 3 axis radian co2 for plastic lights jeep accessories uv tire machine 60w mini metal fiber laser marker 8x4
keyence mdx 3 axis radian co2 for plastic lights jeep accessories uv tire machine 60w mini metal fiber laser marker 8x4
keyence mdx 3 axis radian co2 for plastic lights jeep accessories uv tire machine 60w mini metal fiber laser marker 8x4

keyence mdx 3 axis radian co2 for plastic lights jeep accessories uv tire machine 60w mini metal fiber laser marker 8x4

FOB Reference Price: Get Latest Price
≥1 Sets
US $1188
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cooling Mode:
Air Cooling
Place of Origin:
Hubei, China, Hubei, China
Brand Name:
TOCHTECH
Dimension(L*W*H):
as detail page shows
Weight (KG):
40 KG
Product name:
Laser marking machine
Certification:
CE
Laser source:
IPG Raycus Max JPT
Working Accuracy:
0.001mm
Control Software:
EZCAD

Quick Details

Engraving Area:
Other
Laser Type:
Fiber Laser
Engraving Speed:
as detail page shows
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cooling Mode:
Air Cooling
Place of Origin:
Hubei, China, Hubei, China
Brand Name:
TOCHTECH
Dimension(L*W*H):
as detail page shows
Weight (KG):
40 KG
Product name:
Laser marking machine
Certification:
CE
Laser source:
IPG Raycus Max JPT
Working Accuracy:
0.001mm
Control Software:
EZCAD

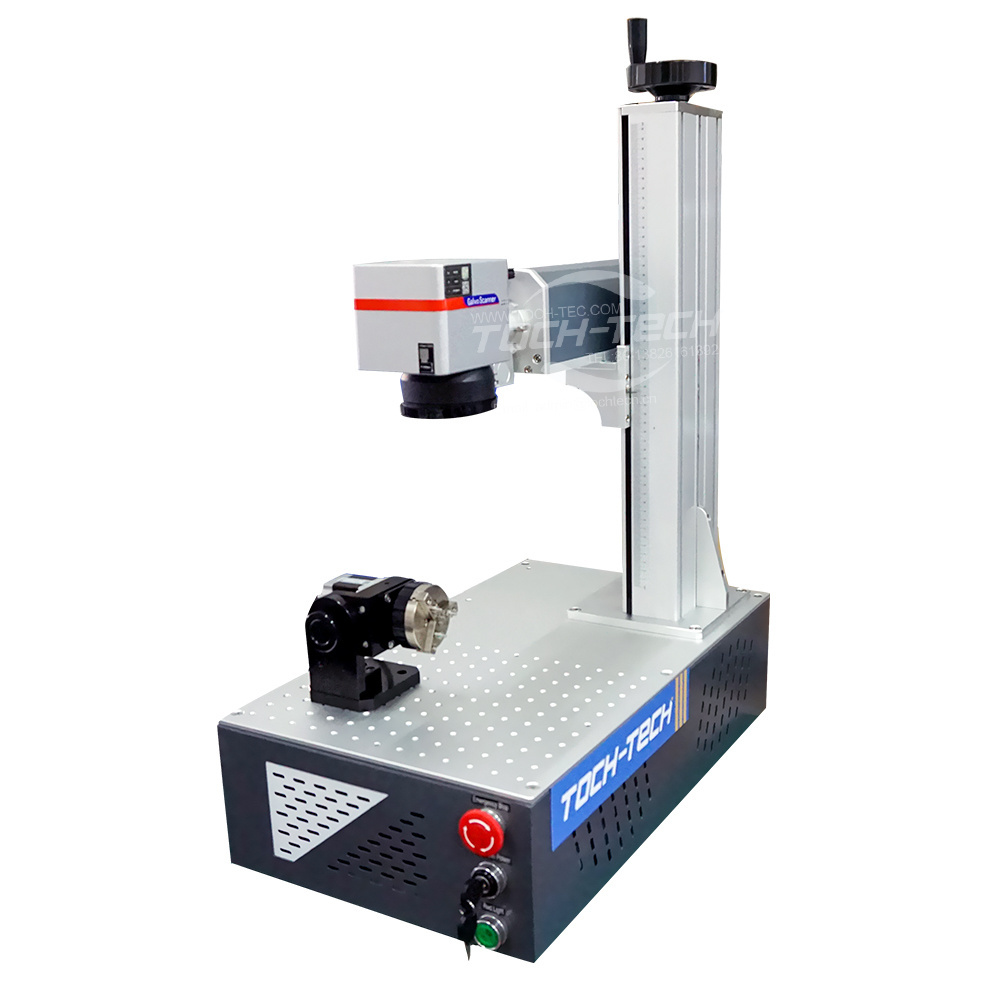

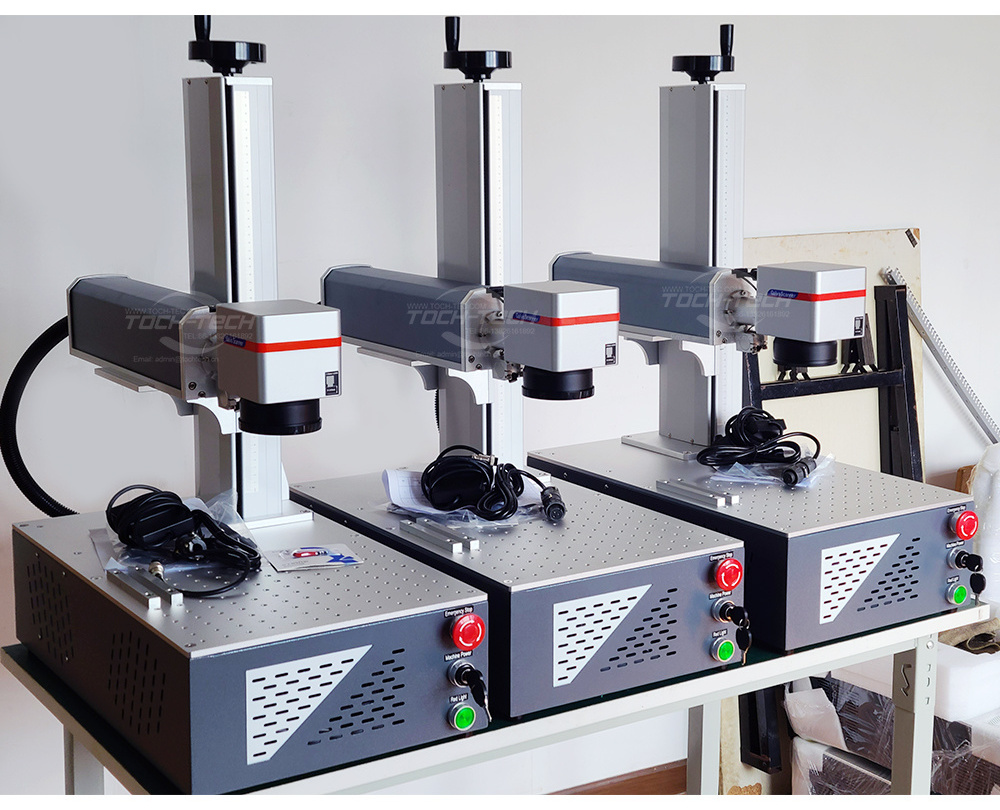

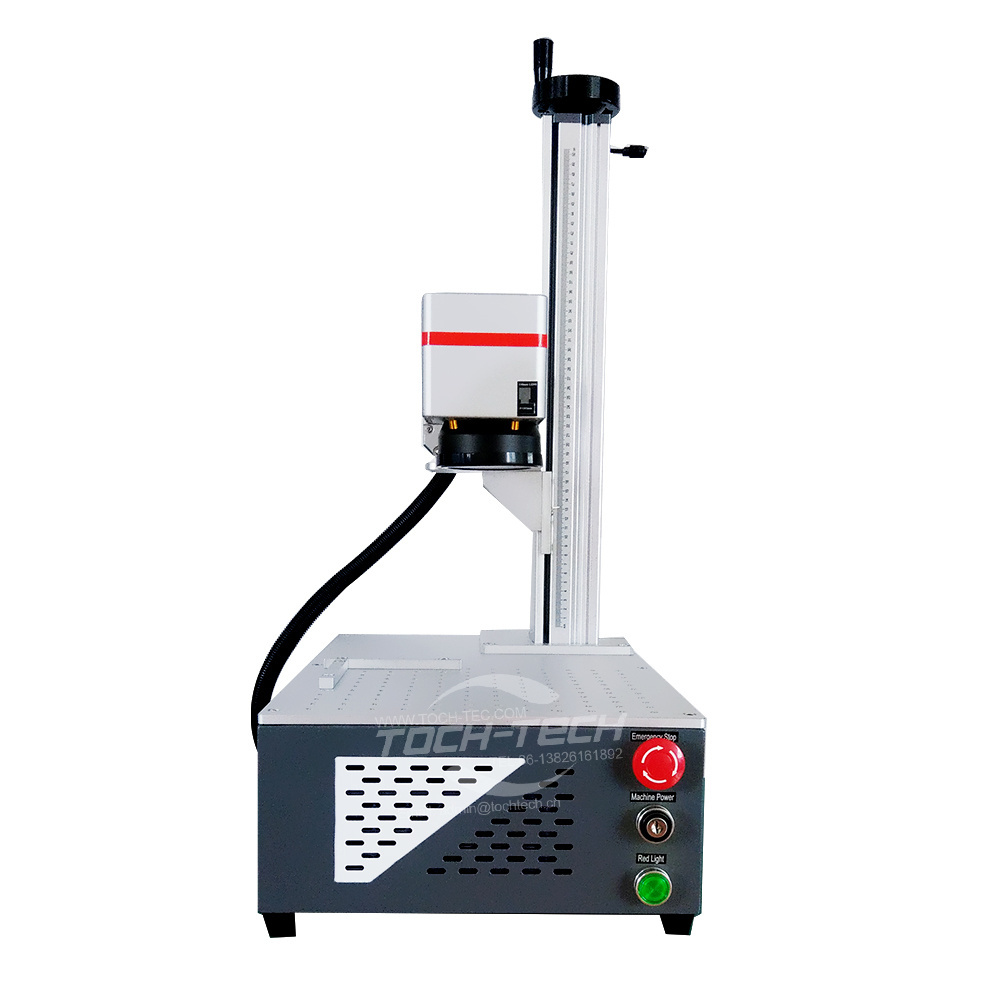

Portable Mini Fiber Laser Engraving Machine 20w 30w 50w 100w
Fiber Laser Marking Machine for Metal
Fiber Laser Engraving Marking Machine Applications:
For engraving logo, text, time, serial, part number, QR code, barcode, 2D code,
bitmap, pictures and images on almost all metal and part of nonmetal mateirals. Appicable for engraving gold silver jewelry, firearm guns, gift items, tumbler cups mugs, pens, auto parts, knives, metal cylinders, metal tools and machinery parts etc.

Fastmarking on materials surface.
Deep engraving metal.
Cutting thin sheet metal for custom jewelry names pendants.
3D relief engraving metal for coin mould.
3D marking curve objects.

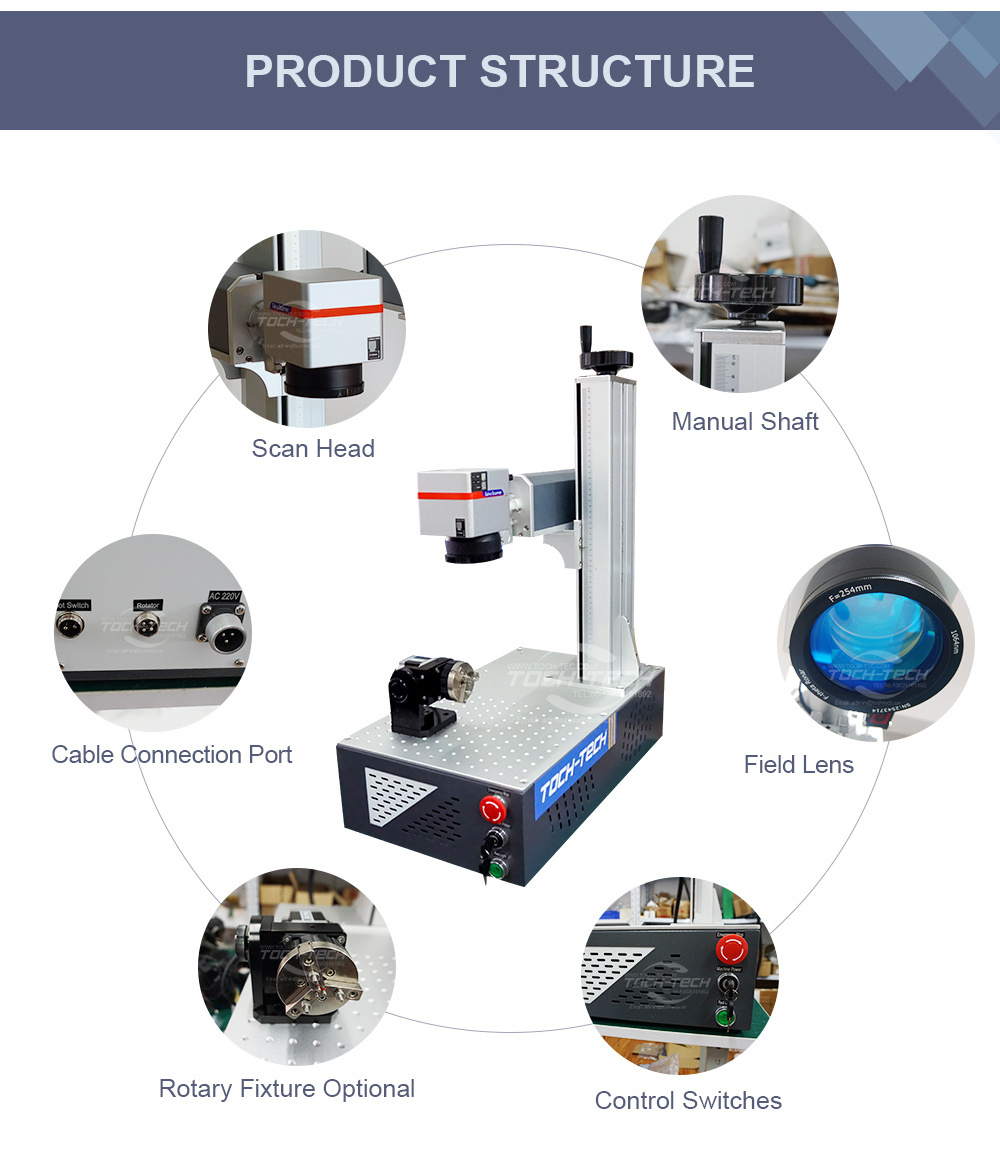

Main Parts of Fiber Laser Engraving Marking Machine:
Laser Source: JPT /Raycus / Max /IPG brand.
Software: EZCAD2.0 / EZCAD3.0 / Feeltek
Laser Power: 30w 50w 60w 80w 100w 120w 200w.
Working Area: 70*70mm 110*110mm, 150*150mm, 175*175mm,200*200mm, 300*300mm.
Galvo Head: Sino Galvo SG2206 / Sino Galvo SG7220 /Feeltek / JCZ.
Column Stand: 50cm / 68cm / 80cm / 100cm etc.
Rotary Fixture Available: 69mm, 80mm, 100mm, 125mm, 160mm, 200mm etc.
More Optional Parts: Vision Position Camera/ Cyclops Camera/ Conveyor table / Purifier / Electric XY table.
Nominal Average Output Power
20W/30W/50W/60W 100W/120W/200W
Power range
10%-100%
Working Area
50*50mm~300*300mm
Laser source working lifetime
Up to 100000 hours
Consumables
Zero
Central Emission Wavelength
1064nm
Emission Bandwidth
<15nm
Pulse Width(ns)
200ns
Output Power Stability
<5
Support Picture Format
Bmp,jpg,gif,tga,png,tif.etc.
Support Vectorgraph File
Al,PLT,DXF,DST.etc.
Voltage
220V/110V
M2
<1.8
Speed
0-8000mm/s
Cooling Way
Air cooling
Could you let us know more about your request? So we can recommend the best solutions for you:
1. What kind of materials of your workpiece? metal or non-metal?
2. What is the marking area/size needed?
3. Mark on flat surface or curved/round/cylinder surface?
FAQ:
*How about the package and delivery?
1. 5-7 working days after receiving the payment.
2. There are 3 layers of package: waterproof thickening plastic bag,foam to protect from shaking,solid export wooden case.

*How about the warranty and after-sales service?
1. 2years for laser source, one year for all other parts.
2. 24 hours technical support by email or calling.
3. Free training for installation and operation.

*How to install and use this laser marking machine?
The machine is already installed before shipping. We have very detailed English manual for laser system and laser marking software,nearly all customers can learn by themselves very easily.
We will also guide you if you have any doubts.

*What if there is something wrong with laser marking machine?
Pls contact us at first time and do not try to fix it by yourself.

*What do I need to know when I need a recommendation?
1. What materials you want to process with?( stainless steel, aluminum, wood, plastic...)
2. Effective marking size? (75*75mm, 110*110mm, 175*175mm, 300*300mm)
3. Do you need to mark on cylindrical or round surface?
4. Do u have size or weight of the product u need to marking on?
