Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zi Wang
-
Model Number:
-
YJV
-
Conductor:
-
Copper Core
-
Insulation:
-
XLPE PE PVC
-
Sheath:
-
ZR-PVC
-
Color:
-
Black
-
Standard:
-
IEC60502
-
Core:
-
1 Core
-
Certificate:
-
CCC/CE/ISO
-
Rated voltage:
-
600/1000 Volts
-
Package:
-
Wodden Reel
-
Sample:
-
Free
Quick Details
-
Insulation Material:
-
Xlpe
-
Application:
-
Construction
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zi Wang
-
Model Number:
-
YJV
-
Conductor:
-
Copper Core
-
Insulation:
-
XLPE PE PVC
-
Sheath:
-
ZR-PVC
-
Color:
-
Black
-
Standard:
-
IEC60502
-
Core:
-
1 Core
-
Certificate:
-
CCC/CE/ISO
-
Rated voltage:
-
600/1000 Volts
-
Package:
-
Wodden Reel
-
Sample:
-
Free

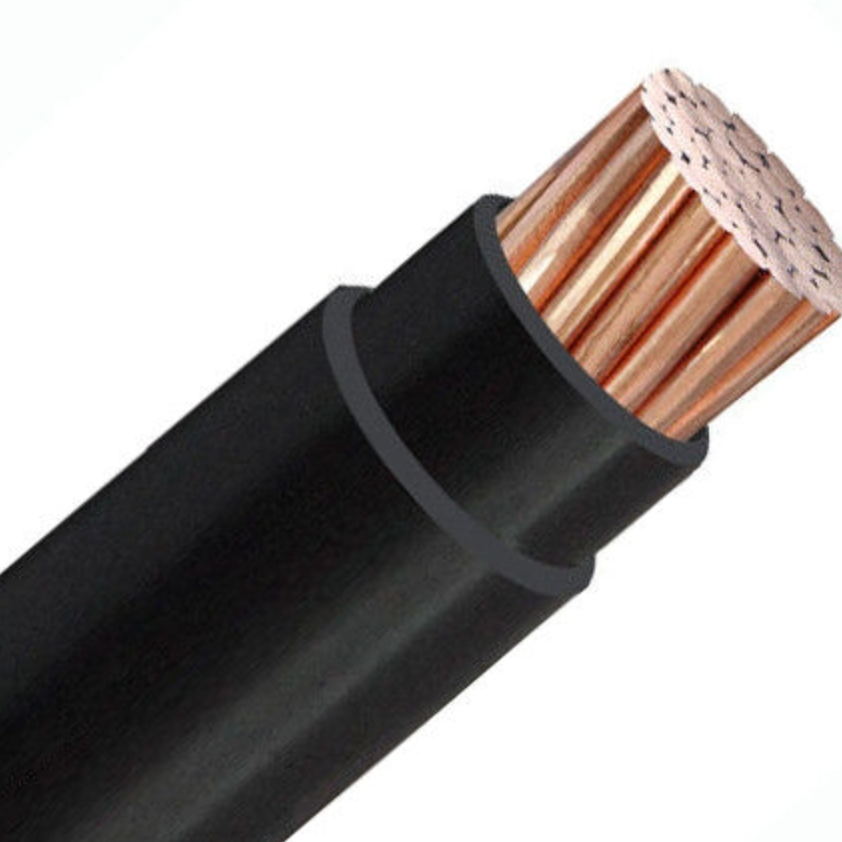

0.6/1kV Single Core 50mm 150mm 250mm Power Cable
PVC/XLPE power cable is used for transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry.
Operating characteristics:
(1) Rated voltage U0/U is 0.6/1 kilovolts.
(2) Maximum rated temperature of cable conductor is 90 ℃
(3) Maximum conductor temperature is lower than 250 ℃ when cable is shorted for less than 5 seconds.
(4) Ambient temperature is not lower than 0 ℃ and its minimum bending radius is as follows when cable is installed: for single-core calbe-20(D+d), unit: millimeter for multi-core cable-15(D+d), unit: millimeter
Note: D denotes the overall diameter of cable, while means the nominal diameter of the main conductor, unit: millimeter.
Technical Parameter:
Calculation condition of the ampacity ambient temperature is 25 ℃
conductor working temperature is 90 ℃
soil heat resulted from water migration when it operates continuously.
gap between axis of cable and surface of ground is 1000 millimeter when it is laid in ground.
for multi-core cable, gap of axis of cable is 3 times O.D.
Production Range:
|
Cores No. |
1 |
2 |
3 |
4 |
3+1 |
5 |
4+1 |
3+2 |
|
Nominal cross sectional areas mm2 |
1.0 ~ 800 2.5 ~ 800 10 ~ 800 |
1.0 ~ 300 2.5 ~ 300 4 ~ 300 4 ~ 300 10 ~ 300 |
1.0 ~ 400 2.5 ~ 400 4 ~ 400 4~ 400 10 ~ 400 |
1.0 ~ 400 2.5 ~ 400 4 ~ 400 4~ 400 10 ~ 400 |
1.0 ~ 400 4.0 ~ 400 4~ 400 4 ~ 400 10 ~ 400 |
1.0 ~ 400 2.5 ~ 400 4 ~ 400 4~ 400 10 ~ 400 |
1~ 400 4~ 400 4 ~ 400 4 ~ 400 10 ~ 400 |
1~ 400 4 ~ 400 4 ~ 400 4~ 400 10 ~ 400 |
