up to 100 meters, so that distance is not a problem
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Name:
-

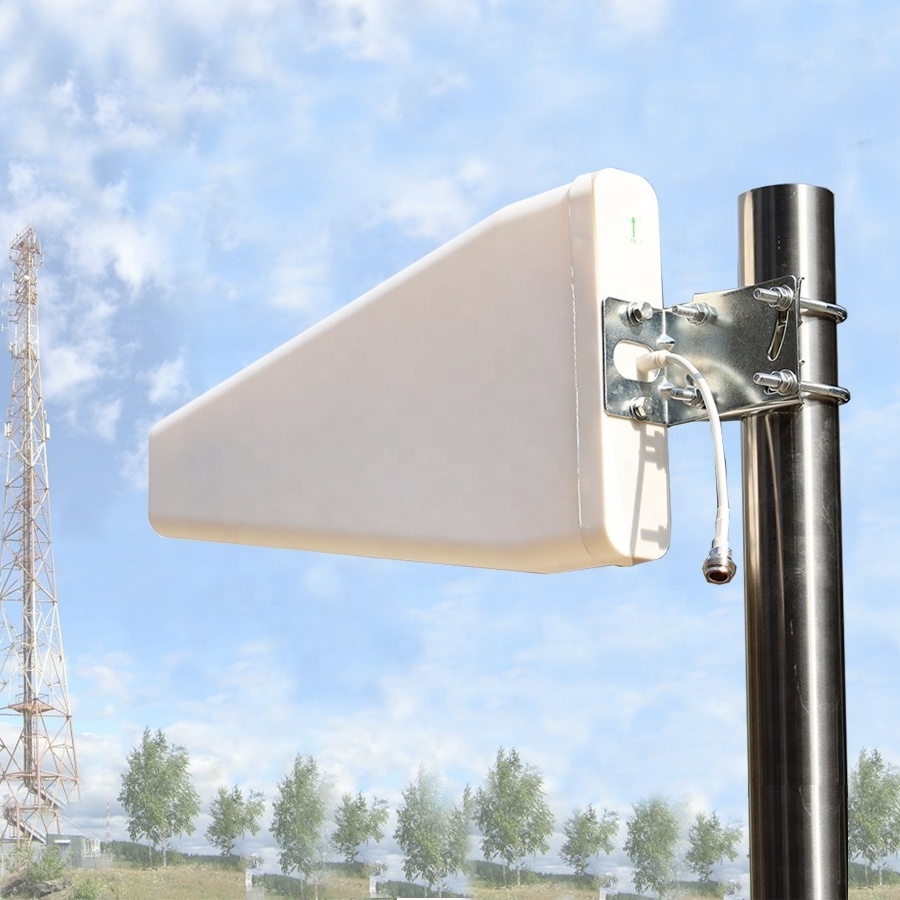

LPDA Directional Antenna
-
Frequency Range:
-
600-6000MHz or customizable
-
Gain:
-
11 dBi
-
V.S.W.R:
-
≤1.5
-
Impedance:
-
50Ω
-
Power:
-
100W
-
Polarization:
-
Vertical
-
Antenna size:
-
410*210*50MM
-
Connector type:
-
SMA or customizable
-
Category:
-
Yagi LPDA antenna
Quick Details
-
Type:
-
Multiband Antenna
-
Brand Name:
-
Cowin or customizable
-
Model Number:
-
20231018004
-
Place of Origin:
-
Jiangsu, China
-
Name:
-
LPDA Directional Antenna
-
Frequency Range:
-
600-6000MHz or customizable
-
Gain:
-
11 dBi
-
V.S.W.R:
-
≤1.5
-
Impedance:
-
50Ω
-
Power:
-
100W
-
Polarization:
-
Vertical
-
Antenna size:
-
410*210*50MM
-
Connector type:
-
SMA or customizable
-
Category:
-
Yagi LPDA antenna
High Gain Outdoor
11 dBi High gain, long transmission distance,
Directional transmission
Directional transmission, directional transmission, stronger signal
OEM 3G / 4G / 5G LPDA Antenna
Product Description
|
Item
|
Specifications
|
|
|
|
Antenna
|
Frequency Range
|
600-6000MHz or customizable
|
|
|
|
Gain
|
11 dBi
|
|
|
|
V.S.W.R
|
≤1.8
|
|
|
|
Impendance
|
50Ω
|
|
|
|
Antenna size
|
410*210*50MM
|
|
|
Material
|
Polarization
|
Vertical
|
|
|
Mechanical
|
Inner Material
|
Copper tube
|
|
|
|
Connector type
|
SMA/N Connector or customizable
|
|
|
|
Mounting Method
|
Fixed Wall Mount
|
|
|
Environmental
|
Operating Temperature
|
-40℃~+80℃
|
|
|
|
Storage Temperature
|
-40℃~+85℃
|
|
|
Package
|
Environmentally Friendly
|
ROHS Compliant
|
|
