Quick Details
-
Brand Name:
-
LUM
-
Weight:
-
3000 KG
-
Dimension(L*W*H):
-
L1340*W1580*H1950mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
thin blade corrugated cardboard slitter scorer machine
-
Container NO.:
-
1set/40feet HQ
-
Payment terms:
-
FOB to Tianjin Port:
-
Color:
-
As client' s requirement
-
Function:
-
High Effieciency
-
Offer valid time:
-
30 days
-
Design speed:
-
150/200 m/min
-
Working width:
-
1400-2200mm
Quick Details
-
Voltage:
-
380V 50HZ
-
Power:
-
4 kw
-
Place of Origin:
-
China
-
Brand Name:
-
LUM
-
Weight:
-
3000 KG
-
Dimension(L*W*H):
-
L1340*W1580*H1950mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
thin blade corrugated cardboard slitter scorer machine
-
Container NO.:
-
1set/40feet HQ
-
Payment terms:
-
FOB to Tianjin Port:
-
Color:
-
As client' s requirement
-
Function:
-
High Effieciency
-
Offer valid time:
-
30 days
-
Design speed:
-
150/200 m/min
-
Working width:
-
1400-2200mm

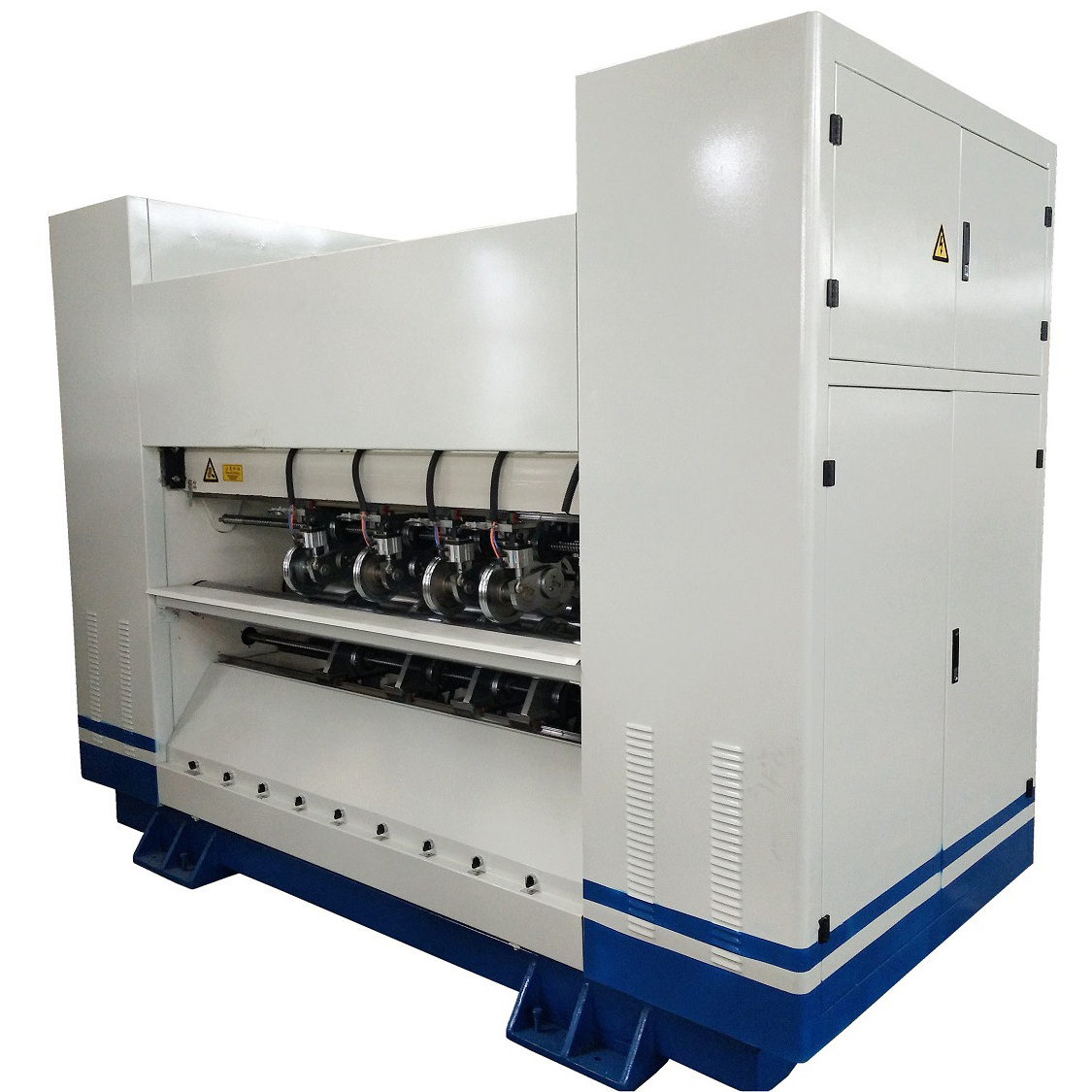

LUM-C Automatic thin blade slitter scorer machine
|
Width
|
1600mm
|
1800mm
|
2000mm
|
2200mm
|
|
Speed
|
200m/min
|
200m/min
|
200m/min
|
200m/min
|
|
Min.Slitter-spacing
|
140mm
|
140mm
|
140mm
|
140mm
|
|
Min.Score-spacing
|
0mm
|
0mm
|
0mm
|
0mm
|
|
Body-rectification range
|
200mm
|
200mm
|
200mm
|
200mm
|
|
Total power
|
16.25kw
|
16.25kw
|
20.25kw
|
20.25kw
|
|
Dimensions L*W*H
|
3480*1650*2340
|
3680*1650*2340
|
3880*1650*2340
|
4080*1650*2340
|
1.
Design speed: 150m/min, 200m/min,
working width:1400 - 2500mm
2.Using a thin tungsten steel alloy blade, blade sharp, long life of more than 8 million meters.
3.Brothers of computer-controlled automatic or manual knife sharpener,and trim board edge, improve production efficiency.
4.Imported synchronous drive unit, semi-precision, long life, low noise operation.
5.Can store 999 orders for a single non-stop automatically or manually for a single
6.3-8 seconds for fast changing order, two machines can be achieved with no slow down immediately for a single. 7.Automatic tracking production line speeds, ensure their synchronization, connectivity and production management system, and compatibility.
8.Japan's main components bearing NSK brand,electrics parts: use Schneider Electric, Delta brand,Computer system from Taiwan Dragon, Sliding screw, from Taiwan .
1. Slitter and scorer independent servo control ,realize fast change.
2. Change order within 1-5 seconds.precise(±0.5mm)
Two rows of scorers,realizes minimum scorer spacing is 0mm.Three type of scorers,convex to concave (three lines),convex to concave(five lines),convex to flat.
Precised gapless synchronous transmission belt,precious encoder monitoring.
Trim suction-inlet:
Application of two machine together can also realize fast change.
Mechanical parts:
1.The machine is made of precise high quality steel plate,30mm.
2.Taiwan HIWIN linear guideway.Ji ning Huazhu ball screw.
3.HRB Bearings.
4.Synchronous belt:High strength Japanese SUBAK.
5.Adopt tungsten steel thin blade.
2.Taiwan HIWIN linear guideway.Ji ning Huazhu ball screw.
3.HRB Bearings.
4.Synchronous belt:High strength Japanese SUBAK.
5.Adopt tungsten steel thin blade.
Servo drivers: Inovance
Servo motor: Inovance servo motor
Frequency converter: Delta
PLC: Schneider
Touch screen: Inovance
Low-voltage apparatus: Schneider
Low-voltage apparatus: Schneider
Proximity switch: Schneider
1.The machine is made of precise high quality steel plate,30mm.
2.Taiwan HIWIN linear guideway.Ji ning Huazhu ball screw.
3.HRB Bearings.
4.Synchronous belt:High strength Japanese SUBAK.
5.Adopt tungsten steel thin blade.
2.Taiwan HIWIN linear guideway.Ji ning Huazhu ball screw.
3.HRB Bearings.
4.Synchronous belt:High strength Japanese SUBAK.
5.Adopt tungsten steel thin blade.
1. Q: Are you a factory or trading company?
2. Q: Where is your company located? How can I visit there?
A: Our company is located in Dongguang County,Cangzhou City,Hebei Province. We are near from Beijing/Tianjin city, only need 2/4 hours,We can arrange car to pick up from airport or hotel
3. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, we can arrange visiting
4. Q: How is the warranty of the machine?
A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.
5. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance, which will guarantee your products receiving, we also accept other safe payment way as you want.
A: We are manufacturer.
2. Q: Where is your company located? How can I visit there?
A: Our company is located in Dongguang County,Cangzhou City,Hebei Province. We are near from Beijing/Tianjin city, only need 2/4 hours,We can arrange car to pick up from airport or hotel
3. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, we can arrange visiting
4. Q: How is the warranty of the machine?
A: Our machines have ONE YEAR WARRANTY. And the engineers available for overseas service.
5. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance, which will guarantee your products receiving, we also accept other safe payment way as you want.
