Quick Details
-
Interface Standard:
-
CCS1,CCS,GB/T,CHAdeMO
-
Output Current:
-
100A
-
Output Power:
-
15KW/20KW/30KW/40KW
-
Input Voltage:
-
380V
-
Product name:
-

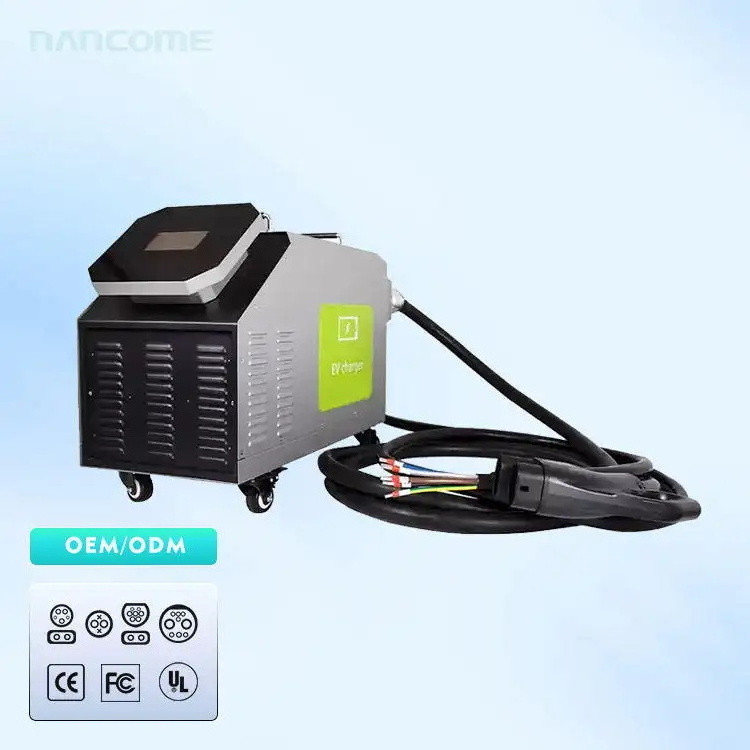

Portable EV Charger
-
Input voltage:
-
260-475V
-
IP Level:
-
IP54
-
Warranty:
-
24 Months
-
Standard:
-
EN61851-1,JEVSG 105
-
Certificate:
-
CE
-
Cable Length:
-
5Meters
Quick Details
-
Place of Origin:
-
Fujian, China
-
Model Number:
-
NCDP011503
-
Brand Name:
-
NANCOME
-
Interface Standard:
-
CCS1,CCS,GB/T,CHAdeMO
-
Output Current:
-
100A
-
Output Power:
-
15KW/20KW/30KW/40KW
-
Input Voltage:
-
380V
-
Product name:
-
Portable EV Charger
-
Input voltage:
-
260-475V
-
IP Level:
-
IP54
-
Warranty:
-
24 Months
-
Standard:
-
EN61851-1,JEVSG 105
-
Certificate:
-
CE
-
Cable Length:
-
5Meters
|
Model
|
NCDP011503
|
NCDP012003
|
NCDP013003
|
NCDP014003
|
||||
|
Input Voltage
|
AC380V±15%
|
|
|
|
||||
|
Working Frequency
|
50/60 Hz
|
|
|
|
||||
|
Power Factor
|
≥0.99
|
|
|
|
||||
|
Input Current
|
25A
|
32A
|
45A
|
64A
|
||||
|
Output Power
|
15KW
|
20KW
|
30KW
|
40KW
|
||||
|
Output Voltage
|
200-750VDC
|
|
|
|
||||
|
Output current
|
25A/37A
|
33A/60A
|
50A/100A
|
66A/120A
|
||||
|
Work environment
|
|
|
|
|
||||
|
Temperature range
|
-40~85°C ； 25 °C (type)； Intelligent derating when shell temperature exceeds 70 °C
|
|
|
|
||||
|
Humidity range
|
5~90RH%； non-condensation
|
|
|
|
||||
|
Altitude
|
2000M
|
|
|
|
||||
|
Storage environment
|
|
|
|
|
||||
|
Temperature range
|
-20~50°C； 25°C (type)
|
|
|
|
||||
|
Humidity range
|
5~95RH%； 25RH%(type)； non-condensation
|
|
|
|
||||
|
Altitude
|
2000M
|
|
|
|
||||
|
Single size(mm)
|
635mm*295mm*500mm (No Gun, handle, wheel)
|
|
|
|
||||
|
Packing size(mm)
|
900mm*720mm*570mm
|
|
|
|
||||
|
Carton packing/weight
|
Net： 25 KG Gross： 30KG
|
Net： 30 KG Gross： 35 KG
|
Net： 45 KG Gross： 50 KG
|
Net： 60KG Gross： 65 KG
|
||||
|
IP Level
|
IP54
|
|
|
|
||||
|
Human Machine Interface
|
4.3 inch Touchscreen + Optional RFID Card
|
|
|
|
||||
|
Networking
|
Default Famil off Line, OCPP(optional), LAN and GPRS/4G(Optional)
|
|
|
|
||||
|
Charging mode
|
RFID(Optional), Touchscreen,APP(Optional)
|
|
|
|
||||
|
Charging Standard
|
Support GB/T,CHAdeMO, CCS1, CCS2 (Need Buy a Relevant Gun/Line)
|
|
|
|
||||
|
Standard
|
EN61851-1,JEVSG 105
|
|
|
|
||||
|
Protocol
|
CHAdeMO 2.0/DIN 70121, OCPP 1.6(JSON or SOAP), ISO 15118
|
|
|
|
||||
About us
Nancome Electric Technology Co., Ltd. founded in 1992, is deeply rooted in the electrical industry with advanced technology and extensive experience. It is a national high-tech enterprise integrating product research, development, manufacturing, and sales. The company has independent technology research and development centers, production plants, and office facilities in Zhongpu, Wenzhou, and Guangzhou, with invested production bases and strong cooperative relationships. Over 30 years of development, the product range includes high and low voltage complete switchgear, communication electrical group equipment, smart power equipment, intelligent charging station equipment, compact busbar trunking, security intelligent control equipment, intelligent switches, sockets, and lighting. The company has consistently emphasized research and investment in technological innovation, acquiring a total of 36 patents, including 5 utility model invention patents, which have been widely applied to product innovation, garnering broad user recognition. Additionally, the company has formed a comprehensive electrical intelligent solution structure with design, development, production, and service, and is committed to strict quality inspection and attentive customer service, always ready to discuss customer needs to ensure satisfaction. Furthermore, we have obtained ISO 9001 and 3C, CE certificates, and established long-term business cooperation with world-renowned brands such as Schneider, ABB, and Siemens, all part of the Fortune 500 companies.
Nancome Electric Charging Pile Division: The company has invested in Wenzhou, Zhejiang, to establish an integrated circuit research and development production base for charging pile and an assembly production base for AC charging piles. The company has reached a long-term collaborative research and development and commission production agreement with a DC charging pile manufacturer in Guangzhou. In 2022, a sales subsidiary,Xiamen Newcom Electrical Co.Ltd., was established in Xiamen. Xiamen, known for its unique economic status, boasts a favorable business environment. Xiamen Port is a major coastal port in China, a Class I port for foreign trade, and one of the main export ports in Fujian Province.
Q: Are you a factory or a trading company?
A: We are a manufacturer, welcome to visit our factory at any time!
Q:What can you buy from us?
A: We mainly offering:WallBox/Portable AC EV charger with output rating from 3.5kw-44kw ,Integrated floor-mounted fast DC Charging station with output rating from 30kw-480kw.Mobile chargers with energy storage batteries form 3.5kwh-161kwh,and Solar System products.
Q:Can you make our design and put our logo on the products?
A: Yes, we can make your own design and put your logo on the products.
Q. Can I customize the box and packing way?
A: We can provide related services under the condition of meeting the MOQ.
Q: When can I get the price?
A:Usually we quote within 24 hours after we get your inquiry.
Q: What is your payment terms?
A: T/T 30% as deposit, 70% paid off before delivery. We will show you the photos of the products and packages before you pay the balance.
Q：What is your terms of trade?
A: EXW, CFR, CIF, DAP,DDU,DDP
Q：How about your delivery time?
A: Generally, it will take 7 to 35 days after receiving your advance payment. The specific delivery time depends on the item and quantity of your order.
Q: Do you test all your goods before delivery?
A: Yes, we will do final inspection on the goods before delivery.
Q: How do you give me your goods?
A: By air,shipping by sea, truck by DHL, TNT, UPS, FEDEX. Choose the best shipment method according to the actual situation.
Q：Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q：What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q: What payment methods do you accept?
A: We accept all payment methods including PayPal, T/T, Credit Card, Alibaba Assurance, Western Union and Bank Transfer. Please contact us for more details. But if you have different requirements, we may discuss together.
Q: What is the warranty?
A: We provide two years warranty for the whole machine and bear the transportation cost of hardware replacement in case of failure. After warranty period. if there is a problem with spare parts, we can purchase spare parts on your behalf if you bear the cost of spare parts and transportation costs. Our software has a lifetime warranty, and our technical team can provide remote video guidance support.
Q.Does the product meet the local customs clearance standards?
A: Our products have been sold in large quantities all over the world, and all products have passed the relevant certifications recognized by the local government. In addition, we provide standardized product information and packaging to ensure full compliance with local customs clearance requirements.
If you have special requirements for customs clearance in your local area, please contact us before placing an order, we can provide timely and effective assistance.
