Quick Details
-
Brand Name:
-
YOGIE
-
Dimension(L*W*H):
-
custom
-
Name:
-
Briquette Machine
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
ISO9001
-
Raw material:
-
Coal
-
Application:
-
Industries
-
Function:
-
Press Charcoal Powder
-
Briquette shape:
-
Oval
-
Keyword:
-
Charcoal Coal Briquetting Machine
-
Capacity:
-
1-40ton/h
Quick Details
-
Weight (KG):
-
40000
-
Production Capacity:
-
220V/380V/415V/460V /Customized
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YOGIE
-
Dimension(L*W*H):
-
custom
-
Name:
-
Briquette Machine
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
ISO9001
-
Raw material:
-
Coal
-
Application:
-
Industries
-
Function:
-
Press Charcoal Powder
-
Briquette shape:
-
Oval
-
Keyword:
-
Charcoal Coal Briquetting Machine
-
Capacity:
-
1-40ton/h
Why Choose Us
Product Description

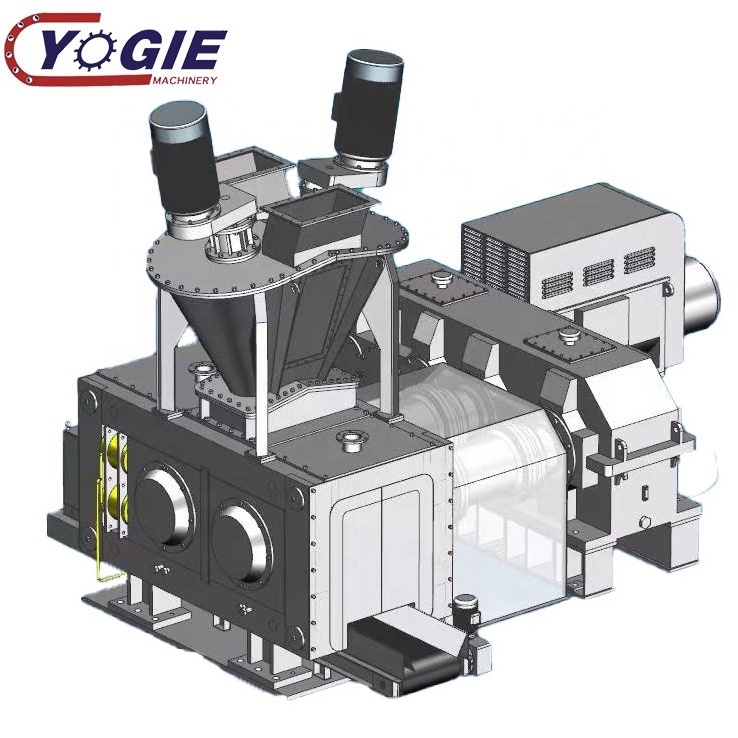

High Pressure Coal Briquette Ball Press Briquette Machine
The high pressure briquetting machine is a kind of ball pressing machine that can force the material into roller area to get high-bulk density briquettes. It is developed on the basis of the high-pressure briquetting machine, and adopts the transmission structure of the high- pressure one.It is mainly used for the materials which its line specific pressure is 1-3t/cm such as briquette, coking coal, formed coke and so on.
|
Model
|
ROLLER DIA.
（mm）
|
ROLLER WIDTH
（mm）
|
TOTAL
PRESSURE
（t）
|
MAX. LINE
specific
pressure
（t/cm)
|
POWER
（kw）
|
CAPACITY
（t/h）
|
WEIGHT
（t）
|
|
ZY520-100
|
520
|
400
|
100
|
2.5
|
37
|
5-8
|
8.9
|
|
ZY650-120
|
650
|
500
|
120
|
2.5
|
45
|
10-15
|
12.8
|
|
ZY750-150
|
750
|
480
|
150
|
3
|
75
|
15-20
|
17.2
|
|
ZY1000-300
|
1000
|
900
|
300
|
3
|
200
|
30-35
|
42
|
|
ZY1200-300
|
1200
|
1000
|
300
|
3
|
250
|
45-50
|
78
|
|
ZY1400-360
|
1400
|
1200
|
360
|
3
|
355
|
75-80
|
115
|
BRIQUETTING MACHINE FEATURES
1）Fully product range with roller diameter of 520-1200mm could be provided.
（2）High line specific pressure of 11T/CM is forced to design on pre-pressing.
（3）The material has a good extrusion effect with high pelletizing ratio and high density briquettes.
（4）Super wear-resistant roller surface is made by special bearing steel.This kind of roller surface has a good using effect and long working life.
（5）Adopting dual-output shaft reducer structure to improve the accuracy of the double rollers.
（6）Completely-sealed gearbox is used with low noise and without oil leakage.
（7）Fully using ball groove alignment structure of high-pressure briquetting machine for more convenient adjustment.
（8）Adopting hard-tooth-surface gears to greatly improve using performance and life.
（9）Adjustable-speed motor is used for preforming press.All wear parts are overlaid with wear-resistant alloy to improve service life.
（10）The stand-alone hydraulic station can adjust pressure and have the special function of overpressure protection.
Our briquette machine ZY 1000-150 have been export to Mongolia
Advantage of our company
1.Supply the custom service, we can custom various of roller shell according to customer’s drawing and requirements
2.Advance equipment, all our equipment are CNC equipment, which can ensure high precision
and stable performance.
1 Adopting the structure of dual-output shaft reducer instead of the traditional external gear transmission, which effectively improves the precision of the roller;
2. Using hard surface gear to improve the working performance and service life of reducer
greatly;
greatly;
3. Using the alignment structure of ball groove of high pressure briquetting machine, more convenient for adjustment
4.Hydraulic station is placed independently with the function of pressure-adjusting and protective function when overloading.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
About us
Luoyang Yujie Industry Trade Co,Ltd is established in 2004,is mainly engaged in the designing and manufacturing of large machinery components and non-standard machinery parts according to customer's request, including shafts, gears, sprockets, mining machinery parts, welding, bearings, castings and forgings etc. The products are mainly used in the fields of mining, petroleum, cement,steel mill, power plant, sugar factory etc.
Metal powder briquetting machine Metal powder briquetting machine Metal powder briquetting machine
Quality Control
All tests conform to ISO 9001 quality management system certification standards,supporting the third party inspection commissioned by customer.
Metal powder briquetting machine
Metal powder briquetting machine
Metal powder briquetting machine
Our Equipment
All our equipment adopts the advanced CNC machine tools,especially large CNC gantry milling and boring machine, CNC floor-type boring machine.
CNC gantry milling and boring machine,CNC machining center equipped with the fourth axis, CNC floor-type boring machine is equipped with the fourth axis and rotary worktable, it can realize five axis machining. The work piece is not limited by the size.It is suitable for machining large module and large size gear, boxes,and large non -standard parts.
CNC gantry milling and boring machine,CNC machining center equipped with the fourth axis, CNC floor-type boring machine is equipped with the fourth axis and rotary worktable, it can realize five axis machining. The work piece is not limited by the size.It is suitable for machining large module and large size gear, boxes,and large non -standard parts.
Our company has a series of advanced equipments:XV6032,HXV4032,HXV3017,HXV2017CNC gantry boring and milling machine,TX130CNC floor-type boring machine,DVT-500,HK1600CNC vertical lath,CK6136CNC horizontal lath etc,to ensure high precision and stable performance of products.
