Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Super Q
-
Model Number:
-
Z-300
-
Place of Origin:
-
Beijing, China
-
Horsepower:
-
6 Kw
-
Structure:
-
Booster Pumps
-
Power:
-
6kW, 7kw
-
motor:
-
with
-
Usage:
-
Air Pump
-
Ultimate pressure:
-
7x10^-2Pa
-
Fore pump pressure:
-
133-267Pa
-
Fuel:
-
electric
Quick Details
-
Application:
-
vacuum coating, vacuum heat treatment, vacuum smelting, vacuum tube, chemicals, laboratory, vacuum drying, vacuum fitering, vacuum coating machine
-
Pressure:
-
high vacuum
-
Voltage:
-
AC 380V
-
Warranty:
-
1 year
-
Brand Name:
-
Super Q
-
Model Number:
-
Z-300
-
Place of Origin:
-
Beijing, China
-
Horsepower:
-
6 Kw
-
Structure:
-
Booster Pumps
-
Power:
-
6kW, 7kw
-
motor:
-
with
-
Usage:
-
Air Pump
-
Ultimate pressure:
-
7x10^-2Pa
-
Fore pump pressure:
-
133-267Pa
-
Fuel:
-
electric
Products Description

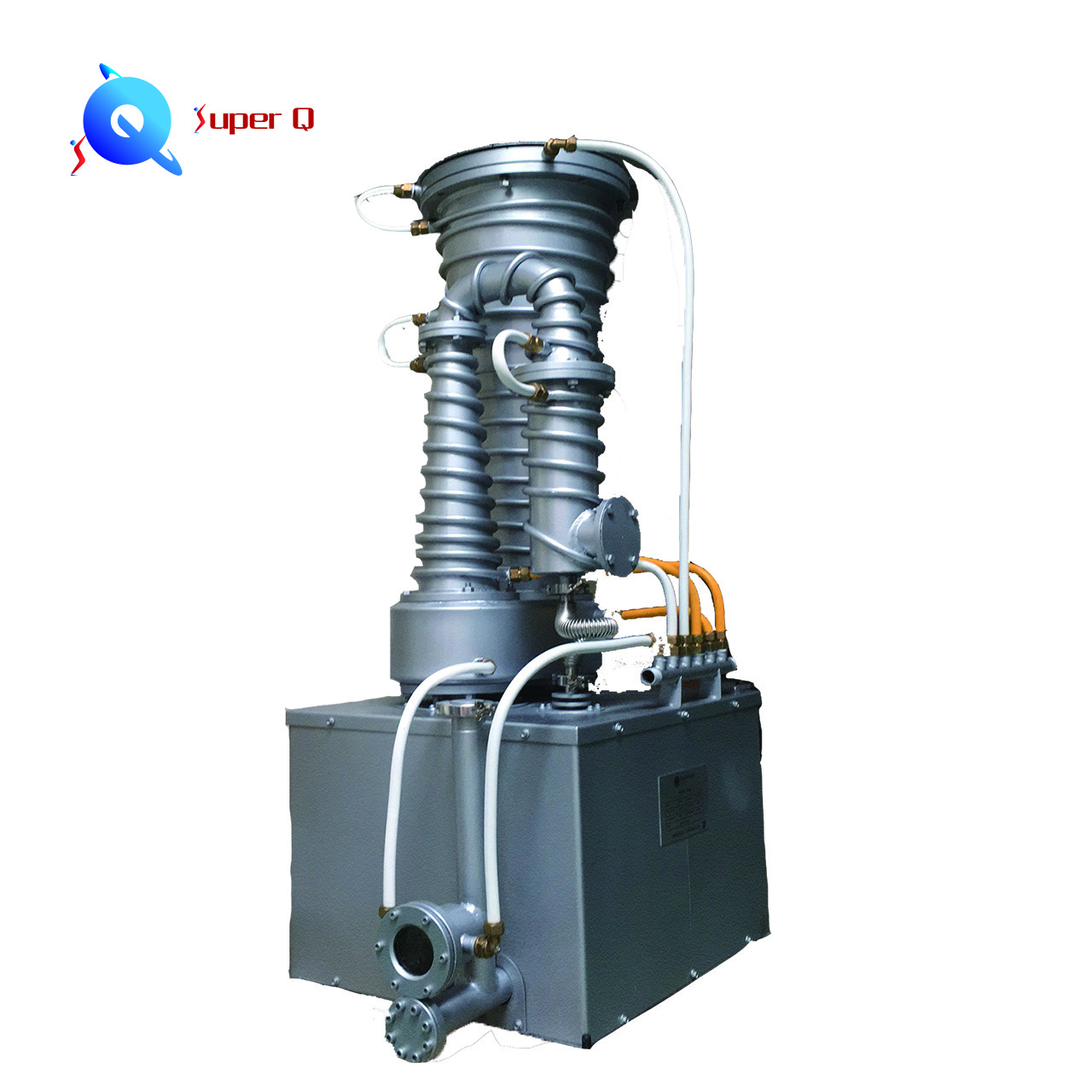

If you are looking for a large vacuum pump for laboratory research, industrial production, and nalytical instruments, Super Q's Z-series oil booster vacuum pump may be your preferred product.
Pumping speed: 480L/s to 13000L/s
It adds observation windows, oil inlet and outlet and pump oil temperature measuring device.
KT adopts stretching process, reduces weld crack and out gassing and increases strength.
Two heater for choice: heating wire or heating plate.
It is applicable to vacuum coating, vacuum heat treatment, vacuum smelting, vacuum tube, bulb,chemicals, packing, forming, health and medical appliances, laboratory, vacuum drying machines and vacuum fitering.
The vacuum oil booster vacuum pump achieves the process of vacuum pumping by pumping gas into the pump chamber and utilizing the compression force generated by the mechanical structure to compress the gas. The main working principle includes the following steps:
✔
Gas compression:
As the piston moves forward, the gas is compressed, increasing the pressure of the gas.
✔
Gas discharge:
When the piston moves to the forefront, the gas in the pump chamber is discharged, achieving the effect of vacuum pumping.
Product Paramenters
ZL High vacuum oil booster pump
ZL High vacuum oil diffusion vacuum pump are the equipment mainly used for getting the high vacuum condition (10^-2-10^-5 Pa); the pump, valves, water cooling baffle, pipe and mechanical vacuum pump are the composition of a vacuum unit,10^-2 -10^-4 Vacuum degree can be obtained. If liquid nitrogen or other cooling device can be used, it can get ultra-high vacuum (10^- 6 pa) with baking.
|
|
|
ZL-300
|
ZL-400
|
ZL-600
|
ZL-800
|
ZL-1000
|
||||
|
Pumping rate
|
L/s
|
≥ 2200
|
≥ 4100
|
≥ 7500
|
≥ 13100
|
≥ 24000
|
||||
|
Ultimate pressure
|
Pa
|
≤ 7×10
-2
|
|
|
|
|
||||
|
Critical pre stage pressure
|
Pa
|
≥ 140
|
|
|
|
|
||||
|
heating power
|
kW
|
6.6
|
14-20
|
20
|
30
|
60
|
||||
|
supply voltage
|
V
|
380
|
|
|
|
|
||||
|
Pump oil usage
|
kg
|
6-8.5
|
30-33.5
|
75
|
100-105
|
155
|
||||
|
Inlet Diameter
|
mm
|
300
|
400
|
600
|
800
|
1000
|
||||
|
outlet diameter
|
mm
|
65
|
100
|
150
|
200
|
300
|
||||
|
Recommended pumping speed
for the front stage pump |
L/s
|
70
|
150
|
300
|
450
|
1200
|
||||
|
External dimensions
|
(L×W×H)
|
620×625×1390
|
770×678×1675
|
1180×990×2380
|
1480×1230×3000
|
1790×1550×3700
|
||||
|
weight
|
kg
|
240
|
600
|
1360
|
2000
|
3800
|
||||
Our Advantages
1.
Higher pumping speed:
The vacuum oil booster vacuum pump has a higher pumping speed and can quickly extract a large amount of gas.
2.
Large range pressure:
Vacuum oil booster vacuum pumps are suitable for a wide range of operating pressures, typically reaching a pressure range of 10 ^ 2 Pa to 10 ^ -1 Pa.
3.
Withstand a certain amount of water vapor:
Compared to other types of vacuum pumps, vacuum oil booster vacuum pumps have better resistance to water vapor.
Application
Vacuum oil booster vacuum pumps are widely used in many fields, including but not limited to the following aspects:
■
Laboratory research:
Vacuum oil booster vacuum pumps are often used for laboratory research, such as vacuum experiments in fields such as materials science, physics, and chemistry.
■
Industrial production:
Vacuum oil booster vacuum pumps are widely used in vacuum treatment processes in industrial production, such as vacuum filling, vacuum drying, and vacuum packaging.
■
Analytical instruments:
Vacuum oil booster vacuum pumps are commonly used in the vacuum system of analytical instruments such as mass spectrometers, electron microscopes, and ion implantation equipment.
Why Choose Us
Super Q Technology Co., Ltd. is a national high-tech enterprise. Has R&D department, manufacturing department and sales department. Super Q Technology is committed to providing a range of products from low vacuum to super high vacuum. Not only a provider of vacuum products, but also solving problems related to vacuum product applications . Our production cope are vacuum pumps, various series of vacuum valves, vacuum bellows, flange connectors, vacuum chamber manufacturing and processing and other vacuum related products. Vacuum products are widely used in new energy, new materials, aerospace, semiconductor and other fields, and provide various vacuum solutions for the application of new vacuum technology in scientific research institutions.
Product packaging
1set/plastic bag, 1bag/carton
FAQ
Q: What does your company do?
A: We are a company focused on the vacuum field. We offer a wide range of vacuum accessories, vacuum pumps, vacuum chambers and special customisation services. Our products are widely used in scientific research laboratories, industrial processes, medical equipment and other fields.
Q: How do you guarantee the quality of your products?
A: We always put product quality first. We cooperate with reliable suppliers and strictly enforce quality control standards during production. Our products undergo rigorous testing and inspection to ensure their stability, reliability and durability.
Q: What vacuum accessories and types of vacuum pumps do you have?
A: We offer many types of vacuum accessories and vacuum pumps, including but not limited to rotary vane pumps, Roots pumps, rotary vacuum pumps, molecular pumps, etc. In addition, we also provide various specifications, models of vacuum valves, vacuum gauges, vacuum pipes and other accessories.
Q: How do I choose the right vacuum system for me?
A: Please tell us your application requirements and system parameters, such as working pressure, pumping speed, pump size, etc. Our expert team will advise you individually and help you choose the right vacuum system for you.
Q: Do you offer special services?
A: Yes, we do. We offer customized services. If you have special needs, such as custom size, materials or special features, we will design and manufacture to your requirements to ensure that the product meets your unique needs.
Q: I found a problem after receiving the product. What should I do?
A: If you find any quality problem or transportation damage after receiving the product, please contact us in time and provide relevant photos and detailed description. We will actively address your issue and assist in resolving it.
