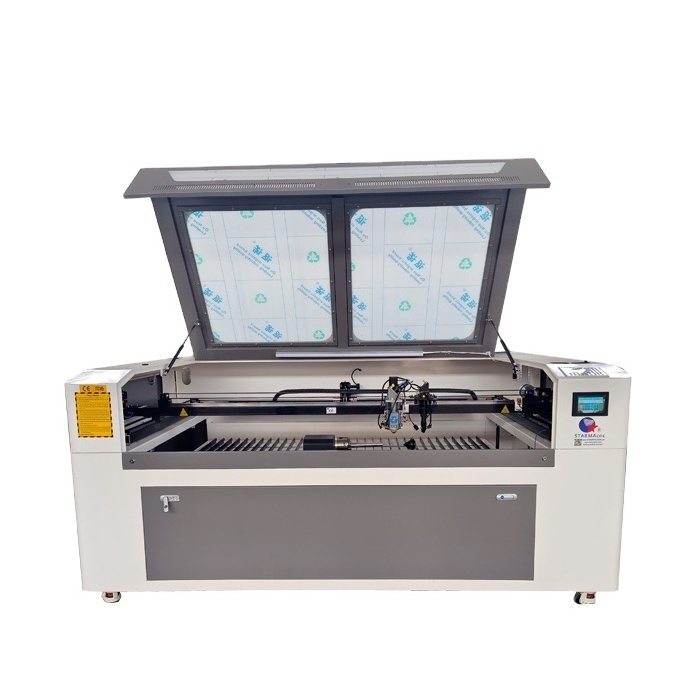

STARMA cnc Mixed hybrid co2 laser engraving cutting machine 1390 with 300w and 80w

STARMA cnc Mixed hybrid co2 laser engraving cutting machine 1390 with 300w and 80w

FOB Reference Price: Get Latest Price

≥1 Sets

US $9000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Control System Brand:: Ruida

Cutting Area:: 1300*900mm

Cutting Thickness:: 0-3mm steel, 0-25mm acrylic

Control Software:: Ruida Metalcut

Place of Origin:: Jinan,China

Brand Name:: STARMACNC

Weight (KG):: 400 KG

Mode of Operation:: Co2 laser

Products handled:: Carbon steel,stainless and nonmetal

Name:: Hybrid co2 laser cutting machine

CE certificated:: Yes, provide

Working area:: 1300*900mm

Laser Power:: 300w+80w

Laser head:: A1 is Hybrid laser head +A2 normal laser head

Control system:: Ruida RD6332

Software:: Original RuiDa Metalcut(support lightburn)

Transmission system:: XY belts

Cooling way:: CW6000 water chiller

Option:: Up-down table,Rotary axis,air filter,extra lens

Quick Details

Laser Type:: CO2

Cutting Speed:: 0-70000mm/s

Cooling Mode:: WATER COOLING

Control System Brand:: Ruida

Cutting Area:: 1300*900mm

Cutting Thickness:: 0-3mm steel, 0-25mm acrylic

Control Software:: Ruida Metalcut

Place of Origin:: Jinan,China

Brand Name:: STARMACNC

Weight (KG):: 400 KG

Mode of Operation:: Co2 laser

Products handled:: Carbon steel,stainless and nonmetal

Name:: Hybrid co2 laser cutting machine

CE certificated:: Yes, provide

Working area:: 1300*900mm

Laser Power:: 300w+80w

Laser head:: A1 is Hybrid laser head +A2 normal laser head

Control system:: Ruida RD6332

Software:: Original RuiDa Metalcut(support lightburn)

Transmission system:: XY belts

Cooling way:: CW6000 water chiller

Option:: Up-down table,Rotary axis,air filter,extra lens

Product Overview

STARMA cnc Mixed hybrid co2 laser engraving cutting machine 1390 with 300w and 80w

We STARMACNC produce and export about 600 sets laser machine.Including 200 units hybrid co2 laser cutting machine. So now, what is a co2 mixed laser cutting machine?

Carbon dioxide CO2 mixed laser cutting machine is a high-end industrial tool used for accurately cutting and engraving materials such as plastic, wood, leather, fabric and metal. The machine works by using a concentrated laser beam that melts, vaporizes, or burns the material, creating a clean and precise cut.

One of the significant advantages of CO2 mixed laser cutting machine is its ability to cut through a wide range of materials
quickly and accurately. It is also a powerful tool that can create intricate designs, shapes, and patterns, even on hard materials like metal. The CO2 laser beam is highly concentrated, which results in less material wastage and higher precision.

Another reason why CO2 mixed laser cutting machines are popular is their automated features, which make them easy to use. With the right software and tool settings, the machine can operate with minimal human intervention, making it an efficient tool for large-scale projects.

FEATURES AT A GLANCE

1.Blade or honeycomb table.Two kinds of of tables are available for different material .
2.CO2 Glass sealed laser tube China famous brand (SLW and Yongli), good beam mode stability, long service time.
3.Imported lens and mirrors. High transmittance, good focusing,reflection effect.
4.Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.
5.High accuracy stepper motors and drivers. Belt transmission.
6.Tiwan Hiwin/CSK Linear square guide rails, higher precision.
7.Open style, the front and back of the machine is open which is possible for longer material, breakthrough the limit of the
workpiece length.
8.Rotate cutting available.

Right elevation

Left elevation

Front elevation

PRODUCT SPECIFICATIONS

No	Item	Data	Machine Power	<2,000W
1	Power	300W+80W	Working Environment Temperature	0-45°C
2	Engraving and Cutting Area	1300X900mm	Exhaust smoke system	Big exhaust fan
3	Cooling	CW6000 water chiller	Air	Standard AC009 air pump
4	Working table	Blade and honeycomb table	Electric up-down table	Option
5	Engraving Speed	0-60,000mm/min	Rotary axis	Option
6	Cutting Speed	0-40,000mm/min	Extra lens and laser tube	Option
7	Reposition Accuracy	±0.01mm	Air filter	Option
8	Resolution	4000dpi	Voltage	220V,50Hz

PRODUCT CONFIGURATION

Machine in workshop

Ruida RD6332 control with auto focus

SLW300 and Yongli 80W laser tube

SALES AND SERVICE NETWORK

Successful Project

Project in Thailand

Project in India

Project in Russia

SIMILAR PRODUCTS

FAQ

The STARMA CNC 1390 1610 CO2 laser cutting machine is a versatile tool for a wide range of applications. From crafting to professional manufacturing, this machine provides precision cutting and engraving capabilities on a variety of materials, including wood, plastic, acrylic, leather, paper, fabric, and more.

Whether you're a small business owner or a DIY enthusiast, the STARMA CNC 1390 1610 offers the precision and speed you need to bring your ideas to life. With its compact size and easy-to-use software, this machine can handle intricate designs and complex patterns with ease, allowing you to create everything from custom signs and logos to personalized gifts and decorative items.

In addition to its cutting and engraving capabilities, the STARMA CNC 1390 1610 also offers a variety of advanced features and functions, including adjustable laser power, air-assisted cutting, and intuitive controls that make it easy to operate and maintain.
