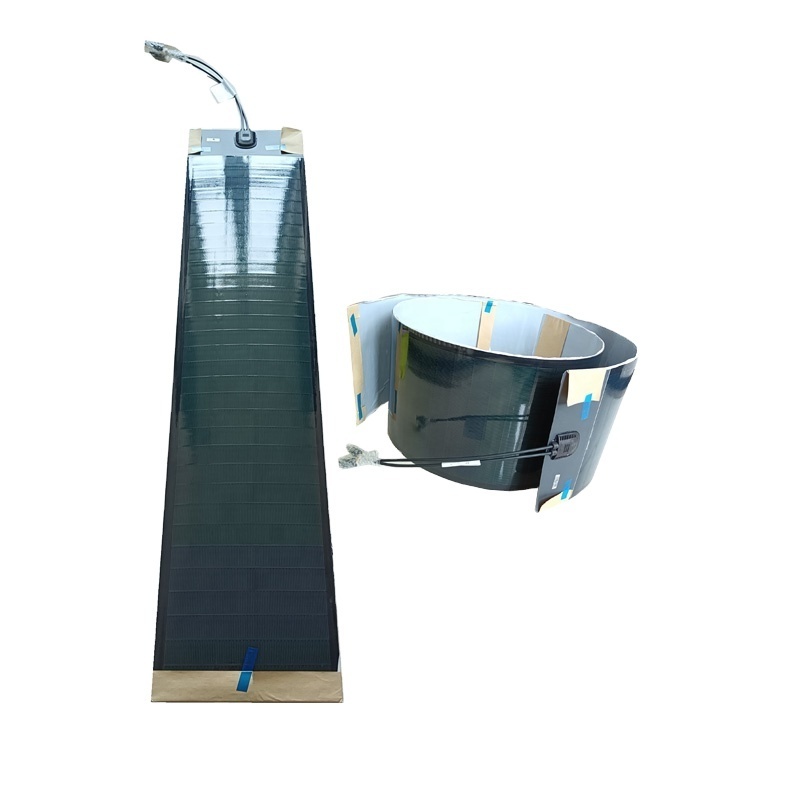

80W CIGS Flexible Thin-film Solar PV Panel Module
80W CIGS Flexible Thin-film Solar PV Panel Module
80W CIGS Flexible Thin-film Solar PV Panel Module
80W CIGS Flexible Thin-film Solar PV Panel Module
80W CIGS Flexible Thin-film Solar PV Panel Module
80W CIGS Flexible Thin-film Solar PV Panel Module

80W CIGS Flexible Thin-film Solar PV Panel Module

FOB Reference Price: Get Latest Price
≥6 Pieces
US $144
≥100 Pieces
US $132
≥500 Pieces
US $120
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Shandong, China
Panel Dimensions:
348X1710
Panel Efficiency:
16.3%
Product name:
80W CIGS Flexible Thin-film Solar PV Panel Module
Type:
CIGS Flexible Solar Panel Thin film amorphous
Application:
Solar Energy System
Junction Box:
IP68
Weight:
2.2 kg/m2 (<0.5 lb/ft2 )
OEM Order:
Acceptable
Cell Type:
Copper Indium Gallium Diselenide (CIGS)
Solar panel:
Amorphous Solar Panel
Frame:
lightweight metal foil substrate
Max power voltage:
18.8v

Quick Details

Cell size:
312mmX56.5mm
Brand Name:
UNISOLAR
Model Number:
FLEX-03NS-80
Place of Origin:
Shandong, China
Panel Dimensions:
348X1710
Panel Efficiency:
16.3%
Product name:
80W CIGS Flexible Thin-film Solar PV Panel Module
Type:
CIGS Flexible Solar Panel Thin film amorphous
Application:
Solar Energy System
Junction Box:
IP68
Weight:
2.2 kg/m2 (<0.5 lb/ft2 )
OEM Order:
Acceptable
Cell Type:
Copper Indium Gallium Diselenide (CIGS)
Solar panel:
Amorphous Solar Panel
Frame:
lightweight metal foil substrate
Max power voltage:
18.8v
Product Description
80W CIGS Flexible Thin-film Solar PV Panel Module
CIGS Cell Flexible Thin Film Laminated Solar Panel with or without back adhesive tape according to your demand.
Now, under the brand of UNISOLAR, we are focusing on being the most professional provider for thin film flexible solar PV for below applications:
-Roofing flexible solar system
-BIPV wall clading flexible solar system
-Street furniture lighting system powered by Flex Solar
-RV Roof, Caravan, Boat & Yacht
-Street Lighting Pole bonded by Flex Solar
-Any other areas suitable for direct bonding flex solar panel
Features of SOLAR PANELS:
1. Record efficiency levels in a CIGS flexible form factor
2. Low installed weight at less than 2.2 kg/m2 (<0.5 lb/ft2 )
3. No penetrations, ballast or racking required
4. Applicable for high wind load and high seismic hazard areas
6. Bypass diodes reduce PV system shading losses
7. Directly bonds to many approved surfaces

RELIABILITY AND SAFETY
* IEC 61646 & IEC 61730
* UL 1703

WARRANTY
* 5 years workmanship
* 5/10/25 years warranty against power loss
Thin-film CIGS solar cells on stainless steel substrate have high efficiency levels and provide significant advantages over conventional, rigid solar cells.

Cell Features:
* Efficiency level of up to 16.5% in a flexible form factor.
* Thin - 0.33mm
* Lightweight - 7.5 gm
* Ideal for many specialized uses. Versatile cell architecture means the size can be modified to suit

various applications.
* Bendable and shatter-proof
Specification
UNISOLAR rollable flexible thin film CIGS solar panel PV Photovoltaic Model hot sale models:
FLEX-03NX-40W , FLEX-03NX-45W
FLEX-03NS-70W FLEX-03NS-75W FLEX-03NS-80W
FLEX-03NC-70W
FLEX-03N-110W FLEX-03N-115W FLEX-03N-120W
FLEX-03NE-135W
FLEX-03WS-160W FLEX-03WS-170W FLEX-03WS-180W FLEX-03WS-190W FLEX-03WS-200W
FLEX-03NL-260W FLEX-03NL-270W FLEX-03NL-280W
FLEX-03NL-290W

FLEX-03MS-210W FLEX-03MS-220W FLEX-03MS-230W FLEX-03MS-240W
FLEX-03M-340W FLEX-03M-350W FLEX-03M-360W FLEX-03M-370W
FLEX-03W-460W FLEX-03W-500W FLEX-03W-510W FLEX-03W-520W
FLEX-03WL-1200W
Electrical Parameter of Flex-03NS 70W 75W 80W:
Model Selection
03NS-70
03NS-75
03NS-80
Capacity rating
Pmax
70W
75W
80W
Tolerance of Pmax
%
+5 / -0%
+5 / -0%
+5 / -0%
Module aperture area efficiency
%
14.2%
15.3%
16.3%
Maximum Power Voltage
Vmpp
18.3V
18.8V
19.3V
Maximum Power Current
Impp
3.85A
4.00A
4.15A
Open circuit voltage
Voc
23.5V
23.7V
24.0V
Short circuit current
Isc
4.70A
4.70A
4.70A
Maximum Series Fuse Rating
A
10A
Maximum System Voltage
(IEC/UL)
1000/1000

Note 1:

Standard Test Conditions (STC): Cell Temperature at 25°C; Solar irradiance intensity of 1000 W/m2; AM1.5 solar reference spectrum (ASTM E892)
Temperature Coefficients
Our Advantages
75W amorphous silicon flexible solar panel a dvantages as follows:
1.Lightweight: Less than 2.4 kg/m2 (<0.5 lb/ft2 ). Because FLEX–02 modules are so much lighter than heavy rigid silicon panels mounted with racks, they are the best solution for building structures with low dead load and environmental load limitations(such as snow). The modules are also ideal for other structures, such as autos, trucks, and RVs, that are not constructed to support the weight of traditional solar panels.
2. Powerful: MiaSolé FLEX modules are the highest efficiency flexible thin-film CIGS modules in production today, providing the highest power density per kilogram in a commercially available solar module. Our aperture efficiencies are as high as 17%,providing over four times the power generation per kilogram of silicon. In the future, efficiencies of up to 20% are expected.
3. Easy to Install: MiaSolé FLEX modules use peel-and-stick application. This eliminates penetrations into the structure, reducing the chance of leaks. Peel-and-stick application also allows for installation on surfaces such as autos, trucks, and RVs where racks would not be feasible, and lowers the balance-of-systems (BOS) costs and complexity when mounting FLEX modules on rooftops.
4. Flexible: MiaSolé FLEX modules conform to curved surfaces, enabling solar power generation on surfaces not suited to
traditional rigid silicon panels.
5. Shatterproof: FLEX modules are shatterproof, and won't break if struck by debris.
6. Resistant to Natural Disasters: MiaSolé modules are thin (2.5mm) and adhere directly to surfaces, providing excellent wind and seismic resistance.
7. Reliable: MiaSolé modules' unique redundant interconnect design enables industry-leading reliability.
Production Flows
Important components in the production process of 80W amorphous silicon flexible solar panel Solar panels
Application
Solar panels application in clients' side
Flex PV Applied on transportation, carport, commercial rooftop, Residential rooftop, Marine, landfill covers etc.
Application Criterion
• New or qualified new roof installations
• Installation by certified installers only
• Installation temperature between 10°C-40 °C (50°F-100°F)
• Maximum roof temperature 85°C (185°F)
• Minimum slope: 5°
• Maximum slope 60°
• Membrane: Select EPDM and TPO substrates from approved manufacturers only
• Metal: PVDF Coated (Galvalume® or Zincalume®) steel metal roofing pan with flat surface (without pencil beads or decorative
stippling) and 406 mm (16“) minimum width
Refer to manufacturers installation guide for approved substrates and installation methods
Multi-Contact (MC®) Connectors
Packing&Shipping
75W amorphous silicon flexible solar panel SOLAR PANELS CIGS Flexible Waterproof Thin Film Portable Solar Panel package as follows:
