Quick Details
-
Grade:
-
Q235B, Q345B
-
Column and Beam:
-
hot rolled or welded H section, I section
-
Product name:
-
Shed Design Prefabricated Workshop Steel Structure Warehouse Building
-
Surface processing:
-
painted or galvanized
-
Roof & wall panel:
-
PU, EPS,rock wool/fiber glass sandwich panel
-
Window and door:
-
PVC or aluminum alloy;sliding door or rool up door
-
Service life:
-
more than 50 years
-
Drawing:
-
design the drawing as your demand
-
Installation:
-
Engineer helps to instruct installation
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DFX
-
Model Number:
-
DFXSSB25682
-
Grade:
-
Q235B, Q345B
-
Column and Beam:
-
hot rolled or welded H section, I section
-
Product name:
-
Shed Design Prefabricated Workshop Steel Structure Warehouse Building
-
Surface processing:
-
painted or galvanized
-
Roof & wall panel:
-
PU, EPS,rock wool/fiber glass sandwich panel
-
Window and door:
-
PVC or aluminum alloy;sliding door or rool up door
-
Service life:
-
more than 50 years
-
Drawing:
-
design the drawing as your demand
-
Installation:
-
Engineer helps to instruct installation

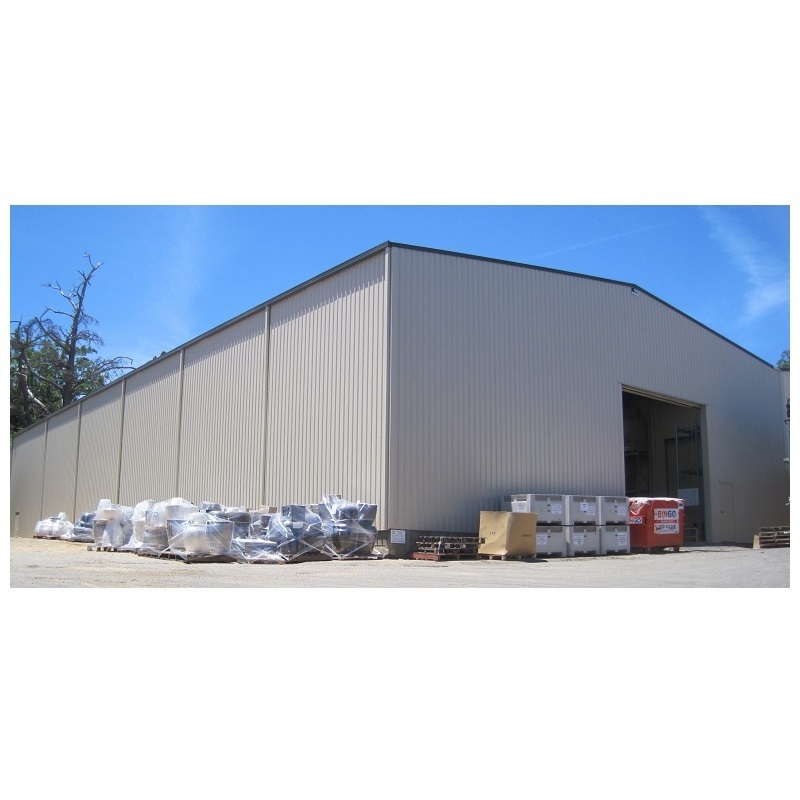

Hot Sale Industrial Shed Design Prefabricated Workshop Steel Structure Warehouse Building
2. Specification
| Items | Specification | |
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Maintenance system | Roof Panel |
EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
| Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rainspout | PVC | |
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | 17 Grades | |
| Earthquake-resistance | 8 Grades | |
| Structure Usage | Up to 50 years | |
| Finishing Options | Vast array of colors and textures available | |
| Paint Options |
Alkyd paiting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. |
|
3. Characteristics
1. Wide span: single span or multiple spans, the max span is 36m without middle column .
2. Low cost and maintenance : unit price range from USD19.99/m2 to USD99.99/m2 according to customers request .
3. Fast construction and easy installation : time saving and labor saving .
4. Long using life span: up to 50 years .
5. Nice appearance .
6. Others: environmental protection, stable structure, High quake-proof, water proof and fire proof , and energy conserving.
