Quick Details
-
Brand Name:
-
Powerjet
-
Year:
-
2021
-
Dimension(L*W*H):
-
5.5*5.1*4.3
-
Hollow part volume:
-
CE, ISO
-
Screw diameter (mm):
-
100 mm
-
Screw Heating Power(kW):
-
35 kW
-
Extruder Motor Power(kW):
-
55 kW
-
Mold Platen Size(Width)(mm):
-
620 mm
-
Mold Platen Size(Height)(mm):
-
600 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
3 m³/min
-
Die Head Heating Power(kW):
-
35 kW
-
Accumulator Capacity(L):
-
180 L
-
Power (kW):
-
22
-
Weight (T):
-
20
-
Automatic Grade:
-
Fully Automatic
-
Model Number:
-
EB300U
-
Product name:
-

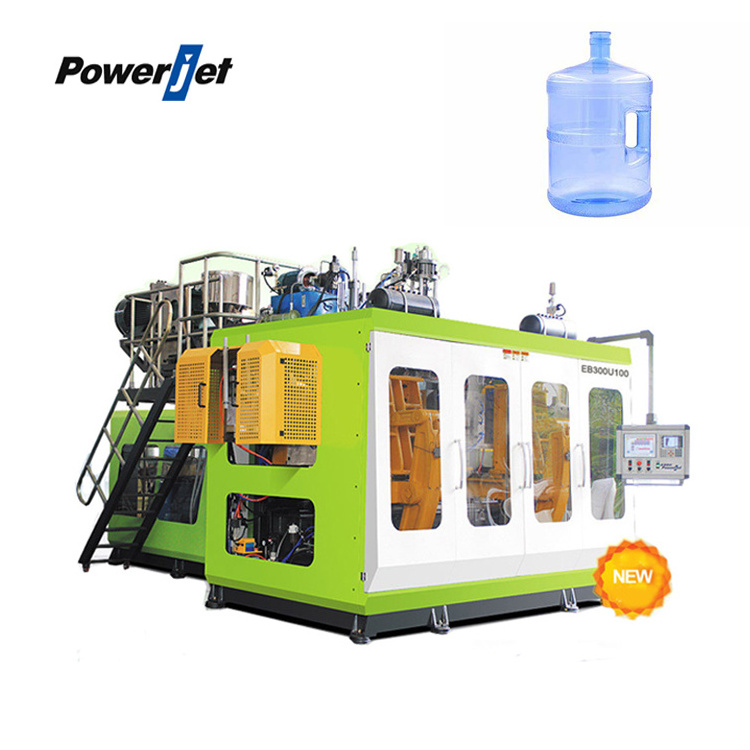

Plastic Extrusion Blow Molding Machine
-
Key words:
-
HDPE Extrusion Blow Moulding Machine
-
Color:
-
Green
-
Name:
-
Bottle Automatic Blow Molding Machine
-
Use:
-
Making Plastic Bottle
-
Max. Product Volume:
-
30L
-
After-sales Service Provided:
-
Provide
-
price:
-
negotiable
Quick Details
-
Clamping Force (kN):
-
200
-
Output (kg/h):
-
180 kg/h
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Powerjet
-
Year:
-
2021
-
Dimension(L*W*H):
-
5.5*5.1*4.3
-
Hollow part volume:
-
CE, ISO
-
Screw diameter (mm):
-
100 mm
-
Screw Heating Power(kW):
-
35 kW
-
Extruder Motor Power(kW):
-
55 kW
-
Mold Platen Size(Width)(mm):
-
620 mm
-
Mold Platen Size(Height)(mm):
-
600 mm
-
Air Pressure(MPa):
-
0.8 MPa
-
Air Comsumption(m³/min):
-
3 m³/min
-
Die Head Heating Power(kW):
-
35 kW
-
Accumulator Capacity(L):
-
180 L
-
Power (kW):
-
22
-
Weight (T):
-
20
-
Automatic Grade:
-
Fully Automatic
-
Model Number:
-
EB300U
-
Product name:
-
Plastic Extrusion Blow Molding Machine
-
Key words:
-
HDPE Extrusion Blow Moulding Machine
-
Color:
-
Green
-
Name:
-
Bottle Automatic Blow Molding Machine
-
Use:
-
Making Plastic Bottle
-
Max. Product Volume:
-
30L
-
After-sales Service Provided:
-
Provide
-
price:
-
negotiable
Products Description

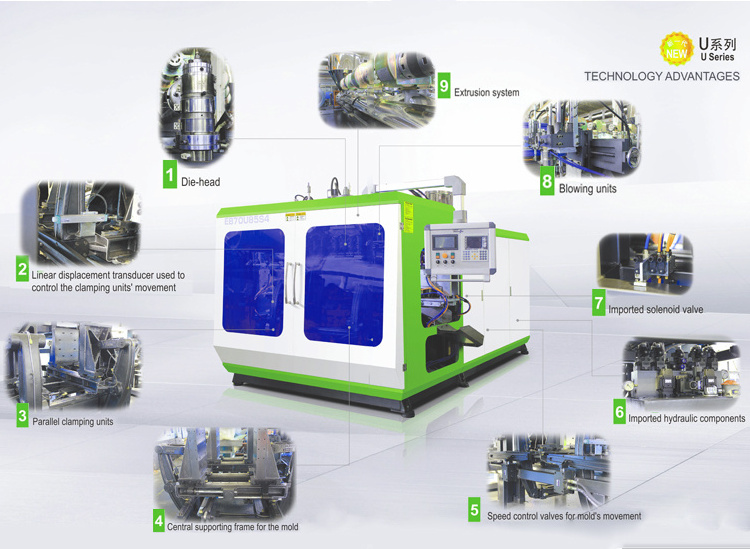

TECHNOLOGY
1.Die-head
2.Linear displacement transducer used to control the clamping units' movement
3.Parallel clamping units
4.Central supporting frame for the mold
5.Speed control valves for mold's movement
6.Imported hydraulic components
7.Imported solenoid valve
8.Blowing units
8.Blowing units
9.Extrusion system
FEATURES:
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.
2:Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
3:High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed to screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers’ top quality requirement.
5:Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
6:Multiple-way PID controlled temperature heating is precise and stable.
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.
2:Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
3:High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed to screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers’ top quality requirement.
5:Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
6:Multiple-way PID controlled temperature heating is precise and stable.

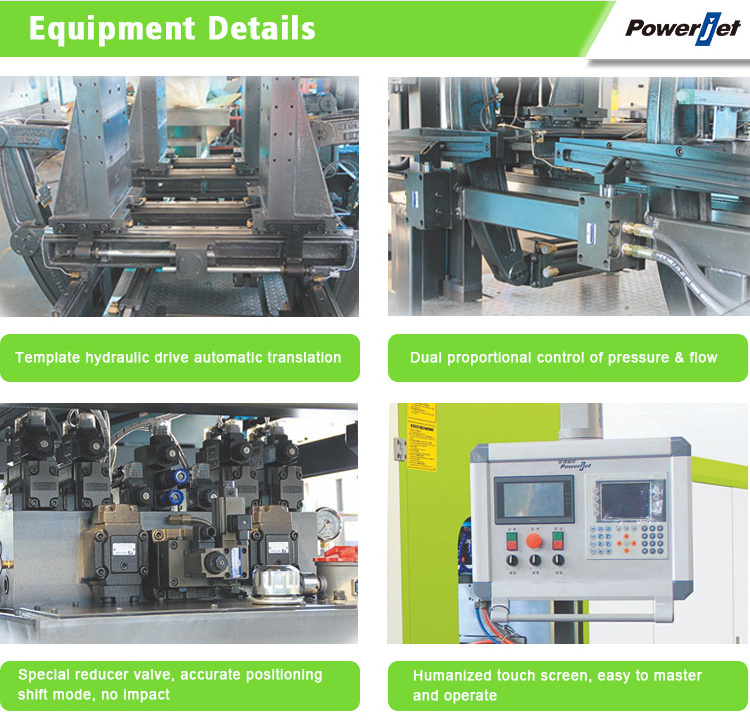

Template hydraulic drive automatic translation
Dual proportional control of pressure & flow
Special reducer valve, accurate positioning shift mode, no impact
Humanized touch screen, easy to master and operate
1.Rotary Trimming Equipment 2.Auto Deflashing Equipment 3.Rotary Trimming Configuration 4.Die Head
5.Optional for all Accessory Equipment 6.Mould 7.Parison Controller
Product Paramenters
|
Model
|
|
EB30U55
|
|
|
Max. Product
|
L
|
4
|
|
|
Clamping Force
|
KN
|
65/85
|
|
|
Max.Mold Size(W*H)
|
mm
|
450*360
|
|
|
Screw Diameter
|
mm
|
Φ55
|
|
|
Screw L/D Ratio
|
L/D
|
25
|
|
|
Screw Rotary Speed
|
RPM
|
72
|
|
|
Extrusion Weight (HDPE)
|
kg
|
35
|
|
|
Extrusion Motor Power
|
KW
|
11
|
|
|
Pump Motor Power
|
KW
|
7.5
|
|
|
Heating Capacity
|
KW
|
14
|
|
|
Operation Pressure
|
Mpa
|
0.6~0.8
|
|
|
Air Consumption
|
m3/min
|
2
|
|
|
Cooling Water Consumption(25°c)
|
L/min
|
50
|
|
|
Machine Dimensions (LXWXH)
|
mm
|
3630*3260*2400
|
|
|
Machine Weight
|
kg
|
4400
|
|
