Our refrigerated trucks adopt polyurethane material for the insulation layer, and the box body is assembled by a segmented "sandwich" plate bonding method, which leads to high heat preservation performance. Refrigeration unit is Thermo King, other brands like Carrier, THT, and Chinese brands are also available.
- Product Details
- {{item.text}}
Quick Details
-
After-sales Service Provided:
-
Video technical support
-
Brand Name:
-
Jerry vehicle
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
5270*1780*2710mm
-
Box Dimensions (L x W x H) (mm):
-
3020*1670*1710mm
-
Payload:
-
2T
-
Tyre:
-
7.00R15
-
Brake:
-
Dual Circuit Air Brake
-
Refrigerator Unit:
-
Thermo King
-
Max power:
-
120HP
-
Displacement(L):
-
1.5 gasoline
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 4
-
Gross Vehicle Weight:
-
≤5T
-
After-sales Service Provided:
-
Video technical support
-
Brand Name:
-
Jerry vehicle
-
Place of Origin:
-
China
-
Dimensions (L x W x H) (mm):
-
5270*1780*2710mm
-
Box Dimensions (L x W x H) (mm):
-
3020*1670*1710mm
-
Payload:
-
2T
-
Tyre:
-
7.00R15
-
Brake:
-
Dual Circuit Air Brake
-
Refrigerator Unit:
-
Thermo King
-
Max power:
-
120HP
-
Displacement(L):
-
1.5 gasoline
Products Description
Jerry Vehicle is a professional semi-trailer production and export company.
We have more than 16 years professional design and production experience.
We can offer high quality products at the best price.
We have more than 16 years professional design and production experience.
We can offer high quality products at the best price.

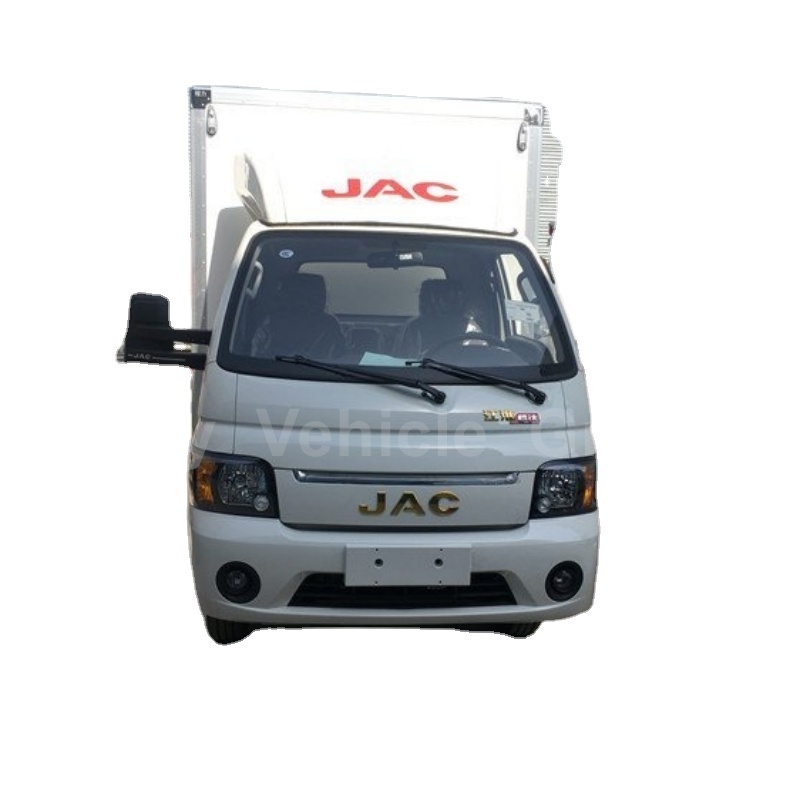

Refrigerator truck aka refrigerated truck/reefer/freezer/cooler box van, is a closed-boxed transport vehicle used for transporting frozen or fresh goods, it equipped with a refrigeration unit and insulated box.
Our refrigerated trucks adopt polyurethane material for the insulation layer, and the box body is assembled by a segmented "sandwich" plate bonding method, which leads to high heat preservation performance. Refrigeration unit is Thermo King, other brands like Carrier, THT, and Chinese brands are also available.
Our refrigerated trucks adopt polyurethane material for the insulation layer, and the box body is assembled by a segmented "sandwich" plate bonding method, which leads to high heat preservation performance. Refrigeration unit is Thermo King, other brands like Carrier, THT, and Chinese brands are also available.
Product Paramenters
|
Overall Parameters
|
Dimension(mm)
|
5270x1780x2710mm
|
|
|
|
Curb Weight
|
1.88T
|
|
|
|
Loading Capacity(ton)
|
2T
|
|
|
|
Top Speed
|
100km/h
|
|
|
|
Wheelbase
|
2600mm
|
|
|
Van Box Parameters
|
Box Interior Parameters
|
3020×1670×1710mm
|
|
|
|
Box Material
|
Inner layer and outer layer: Fiberglass;
|
|
|
|
Insulation layer
|
Polyurethane foam.
|
|
|
|
Refrigerator Unit
|
Thermo King
|
|
|
|
Engine Model
|
HFC4GB3-3E
|
|
|
|
Engine Displacement
|
1.5L Gasoline
|
|
|
|
Max. Power
|
120HP
|
|
|
|
Emission Standard
|
Euro Ⅵ
|
|
|
|
Tire Number
|
6
|
|
|
|
Tire Size
|
175/75R16LT 8PR
|
|
|
|
Transmisson
|
LC5T18 5 Gear
|
|
|
Optional Configurations
|
1. Guide Rail Meat Hook
|
|
|
|
|
2. T Ventilation Slots
|
|
|
|
|
3. Side Door Open on the Right
|
|
|
|
|
4. Real-time Temperature Monitoring System with Printing Device
|
|
|
|
|
5. Stainless Steel Interior for Sea Food Transport
|
|
|
|
|
6. External Power Supply System 220V-380V
|
|
|
Details Images
Optional Van Box's Interior Configuration:
Our Refrigerator Truck's Advantages:
