Quick Details
-
Place of Origin:
-
Shanghai, China
-
Dimension(Long * Breadth * High):
-
8080*2980*3410 mm
-
Machine Weight:
-
16740 kg
-
Bucket capacity:
-
3 cbm, 3 cbm
-
Model:
-
FL958G
-
Max. traction force(kN):
-
155
-
Max. breakout force(kN):
-
180
Quick Details
-
Engine Brand:
-
Chinese brand
-
Power:
-
162KW
-
Brand Name:
-
Chinese brand
-
Place of Origin:
-
Shanghai, China
-
Dimension(Long * Breadth * High):
-
8080*2980*3410 mm
-
Machine Weight:
-
16740 kg
-
Bucket capacity:
-
3 cbm, 3 cbm
-
Model:
-
FL958G
-
Max. traction force(kN):
-
155
-
Max. breakout force(kN):
-
180
Products Description

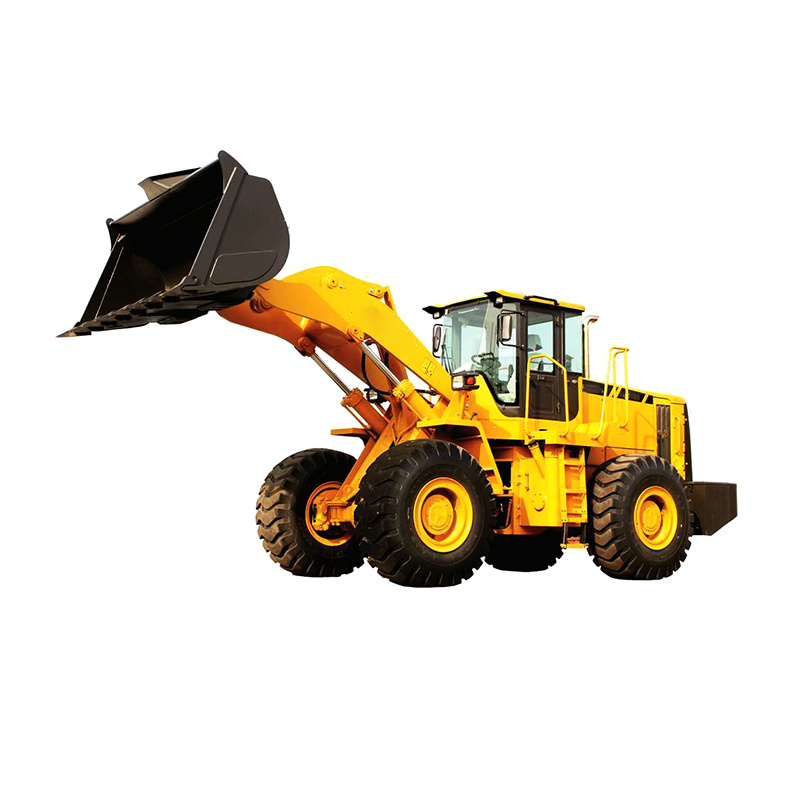

High standard 5Ton Wheel Loader Fl958G with Good Accessory
1. Equipped with the famous engine which is powerful, reliable, low in oil consumption, energy-efficient and environmentally friendly.
2. The plate-fin radiator provides the complete radiator with higher strength and optimized heat dissipation performance. The more excellent heat dissipation effect allows the vehicle to operate normally at 50℃ for a longer time.
3. The 360°panoramic cab provides a larger interior and a more clear vision.
4. Using the three-bump flow-converging system, the steering system is able to operate more easily under idling conditions.
5. The hydraulic pressure hose connection uses the 24°cone sealing technology. Using the integral forged structure, the high-pressure tube is able to stop any leakage.
6. The main blade plate of the bucket uses the new wear-resistant steel plate, substantially improving wearing properties.
7. The side-opening hood with an oversized opening angle maximizes the inspection and repair space, providing ease of maintenance and servicing.
8. The hydraulic oil tank is rotatable to maintain easy servicing of the oil pump and bivariate speed-change valve.
Contact way
Mila Zhang
Newindu Construction Engineering (Shanghai) Co., Ltd.
Add: Suite 2806, Super Ocean Finance Center, No.2067 West Yan'an Road, Shanghai 200336, China.
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Wechat: +86-15300613007
E-mail: mila@newindu.com
Add: Suite 2806, Super Ocean Finance Center, No.2067 West Yan'an Road, Shanghai 200336, China.
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Wechat: +86-15300613007
E-mail: mila@newindu.com
Web:
www.newindu.com
Pls feel free to contact me if you need more information. Looking forward to your news!
Product Paramenters
|
Complete machine parameters
|
|
|
|
Rated load(kg)
|
5000
|
|
|
Operating mass (standard)(kg)
|
16700
|
|
|
Bucket capacity(m³)
|
3
|
|
|
Boom lifting time(S)
|
5.7
|
|
|
Sum of three items(S)
|
10.6
|
|
|
Max. traction force(kN)
|
155
|
|
|
Max. breakout force(kN)
|
180
|
|
|
Running system
|
|
|
|
Forward speed range(km/h)
|
0-38
|
|
|
Backward speed range(km/h)
|
0-24.5
|
|
|
Gearbox shift
|
Front :4 gears; rear: 3gears
|
|
|
Max. gradeability(°)
|
29
|
|
|
Steering angle(°)
|
37
|
|
|
Tire model
|
23.5-25
|
|
|
Service brake
|
Single circuit, air-over-oil four-wheel caliper disc brake
|
|
|
Parking brake
|
Drum chamber brake
|
|
|
Tire center(mm)
|
5930
|
|
|
Outside of bucket(mm)
|
6910
|
|
|
Hydraulic system
|
|
|
|
Working system pressure(Mpa)
|
20
|
|
|
Working system displacement(ml/r)
|
100
|
|
|
Steering system pressure(Mpa)
|
16
|
|
|
Steering system displacement(ml/r)
|
63
|
|
|
Hydraulic oil volume(L)
|
210
|
|
|
Working scope
|
|
|
|
Outline dimension(mm)
|
8080×2980×3410
|
|
|
Wheelbase(mm)
|
3250
|
|
|
Track(mm)
|
2150
|
|
|
Min. grounding distance (at hinge position)(mm)
|
440
|
|
|
Max. unloading height(mm)
|
3130
|
|
|
Unloading distance at max. unloading height(mm)
|
1150
|
|
|
Engine parameters
|
|
|
|
Model(Shangchai)
|
Shangchai SC11CB220G2B1
|
|
|
Type(Shangchai)
|
Six-cylinder, in-line, direct injection, turbocharging, and water cooling
|
|
|
Rated power(Kw/rpm)(Shangchai)
|
162/2200
|
|
|
Max. torque / speed(N.m/rpm)(Shangchai)
|
844(1±6%)/1400
|
|
|
Cylinder bore x stroke(mm)(Shangchai)
|
Φ121×152
|
|
|
Displacement(L)(Shangchai)
|
10.45
|
|
|
Fuel consumption rate at rated working condition(g/Kw.h)(Shangchai)
|
≤235(1±5%)
|
|
|
Fuel tank capacityt(L)(Shangchai)
|
280
|
|
|
Model(Weichai)
|
Wei -chai WD10G220E21
|
|
|
Type(Weichai)
|
Six-cylinder, in-line, direct injection, turbocharging, and water cooling
|
|
|
Rated power(Kw/rpm)(Shangchai)
|
162/2200
|
|
|
Max. torque / speed(N.m/rpm)(Weichai)
|
860/(1400~1600)
|
|
|
Cylinder bore x stroke(mm)(Weichai)
|
Φ126×130
|
|
|
Displacement(L)(Weichai)
|
9.726
|
|
|
Fuel consumption rate at rated working condition(g/Kw.h)(Weichai)
|
225
|
|
|
Model(Cum-mins)
|
Cum---mins 6LT9.3
|
|
|
Type(Cum-mins)
|
Six-cylinder, in-line, direct injection, turbocharging, and water cooling
|
|
|
Rated power(Kw/rpm)(Cum-mins)
|
162/2200
|
|
|
Max. torque / speed(N.m/rpm)(Cum-mins)
|
890/1300-1500
|
|
|
Cylinder bore x stroke(mm)(Cum-mins)
|
Φ116.5×144.5
|
|
|
Displacement(L)(Cum-mins)
|
9.3
|
|
|
Fuel consumption rate at rated working condition(g/Kw.h)(Cum-mins)
|
≤208
|
|
