The machine is used to uniformly mix the raw material and additional agents for testing and apply the experiment results and its ratio in the production line to satisfy the requirements of quality and color specified by the customer.
|
XH-401CE Technical parameter
|
|
|
|
|||
|
Mixed capacity
|
0.5-1kgs or designated
|
|
|
|||
|
Temperature of the roller
|
Electrical heating room temp ~ 300℃
|
|
|
|||
|
Precision of the control temp
|
±2℃
|
|
|
|||
|
Heating mode
|
Electrical heating
|
|
|
|||
|
Revolution of the roller
|
Dual-frequency limitless speed change
|
|
|
|||
|
Speed ratio of the roller
|
Self-moblization
|
|
|
|||
|
Roller pitch
|
0.1~10mm adjustable
|
|
|
|||
|
Size of the roller
|
Φ120mm*L350mm or designed
|
|
|
|||
|
Safety device
|
Many touch-type emergency stoppers
|
|
|
|||
|
Motor
|
1 HP (2 sets)
|
|
|
|||
|
Power supply
|
AC380V
|
|
|
|||
|
Volume(W*D*H)
|
1100*650*1500mm
|
|
|
|||
1) Bult-in heater, together with LED temperature controller and high-precision sensor, can automatically compensate the temperature to guarantee the temperature equalization.
2)
The electronic control part adopts imported electrical components, which are convenient to operate and stable in performance
3) Taiwan gear motor, together with high-precision gearing chain, brings stable operation, low noise and good durability.
4）
The distance adjustment method is optional for manual distance adjustment/electric distance adjustment
4) Emergent reverse gurantees the safety.

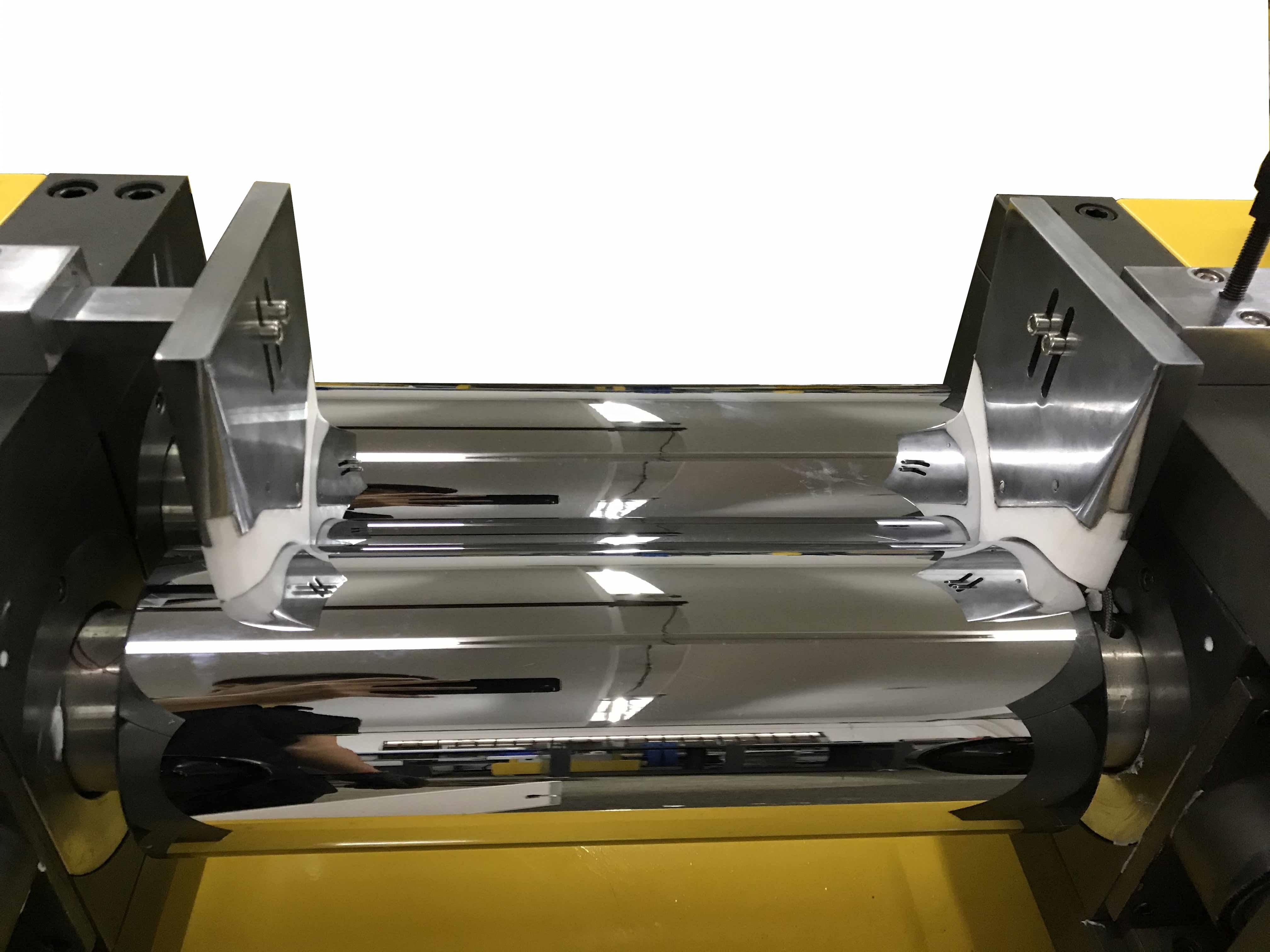

Name: Roller
Brand: XIHUA
Original: CHINA
Hard chrome mirrored KDB material solid roller, high surface finish, the solid roller for durability.
Roller speed ratio is adjustable
Name:
Safety Device
Brand:
XIHUA
Original:
CHINA
Protective cover, Safety lever,safety door, Emergency button
The machine is fitted with an emergency brake. When there is an emergency, the four corners are equipped with an emergency switch, which is convenient for the machine to brake in multiple positions and stop quickly. Pull the emergency switch to make the machine brake immediately to ensure safety and reliability.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
