These brands are major suppliers to the TV open cell panel market and over a period of twenty long years, we have established strong relationships with these brands, can provide the high quality and the low price panel product for the global buyer in the first time
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Samsung
-
Form Factor:
-
Flat Rectangle
-
Resolution:
-
3840*2160
-
Surface:
-
-
-
View Angle:
-
89/89/89/89
-
Driver IC list:
-
COF Built-in 4 source chips
-
sRGB:
-
0.83
-
Interface:
-
V-by-One
-
Pins:
-
51 pins
-
Frequency:
-
60Hz
-
C/R:
-
5000/1
Quick Details
-
Type:
-
VA
-
Display Size:
-
55"
-
Supplier Type:
-
Original factory
-
Place of Origin:
-
China
-
Brand Name:
-
Samsung
-
Form Factor:
-
Flat Rectangle
-
Resolution:
-
3840*2160
-
Surface:
-
-
-
View Angle:
-
89/89/89/89
-
Driver IC list:
-
COF Built-in 4 source chips
-
sRGB:
-
0.83
-
Interface:
-
V-by-One
-
Pins:
-
51 pins
-
Frequency:
-
60Hz
-
C/R:
-
5000/1
Product Parameter
|
Product Specification
|
|
|
|
|
||||
|
Basic Information
|
Brand
|
Samsung
|
Model
|
LSC550FN11
|
||||
|
|
Screen Size
|
55"
|
|
|
||||
|
Environment
|
Storage Temp.
|
-20~60°C
|
Operating Temp.
|
0~50°C
|
||||
|
Pixel Features
|
Resolution
|
3840*2160 Ultra HD (UHD) aka 4K
|
|
|
||||
|
Mechanical Size
|
Active Area(mm)
|
1209.6*680.4
|
|
|
||||
|
|
Outline Dim.(mm)
|
1223.6*697.1
|
Depth(mm)
|
1.3mm
|
||||
|
Other Spec
|
Weight
|
|
|
|
||||
|
Basic Information
|
Luminance(cd/m²)
|
0
|
Contrast Ratio
|
5000/1
|
||||
|
|
Viewing Angle
|
89/89/89/89
|
|
|
||||
|
|
Best View on
|
Symmetry
|
|
|
||||
|
Color Performance
|
Display Colors
|
1.07B
|
|
|
||||
|
Color
|
NTSC Ratio
|
69%
|
sRGB
|
83%
|
||||
|
|
Adobe RGB
|
71%
|
DCI-P3
|
69%
|
||||
|
Display Performance
|
Outdoor Visibility
|
No
|
|
|
||||
|
Signal Electrical
|
Frame Rate
|
60Hz
|
|
|
||||
|
Package Box
|
Quantity
|
160 pcs / box
|
Box Size
|
960*1380*1 mm
|
||||
|
Interface Detail
|
Pins
|
51 pins
|
Driver IC List
|
COF Built-in 4 source chips
|
||||

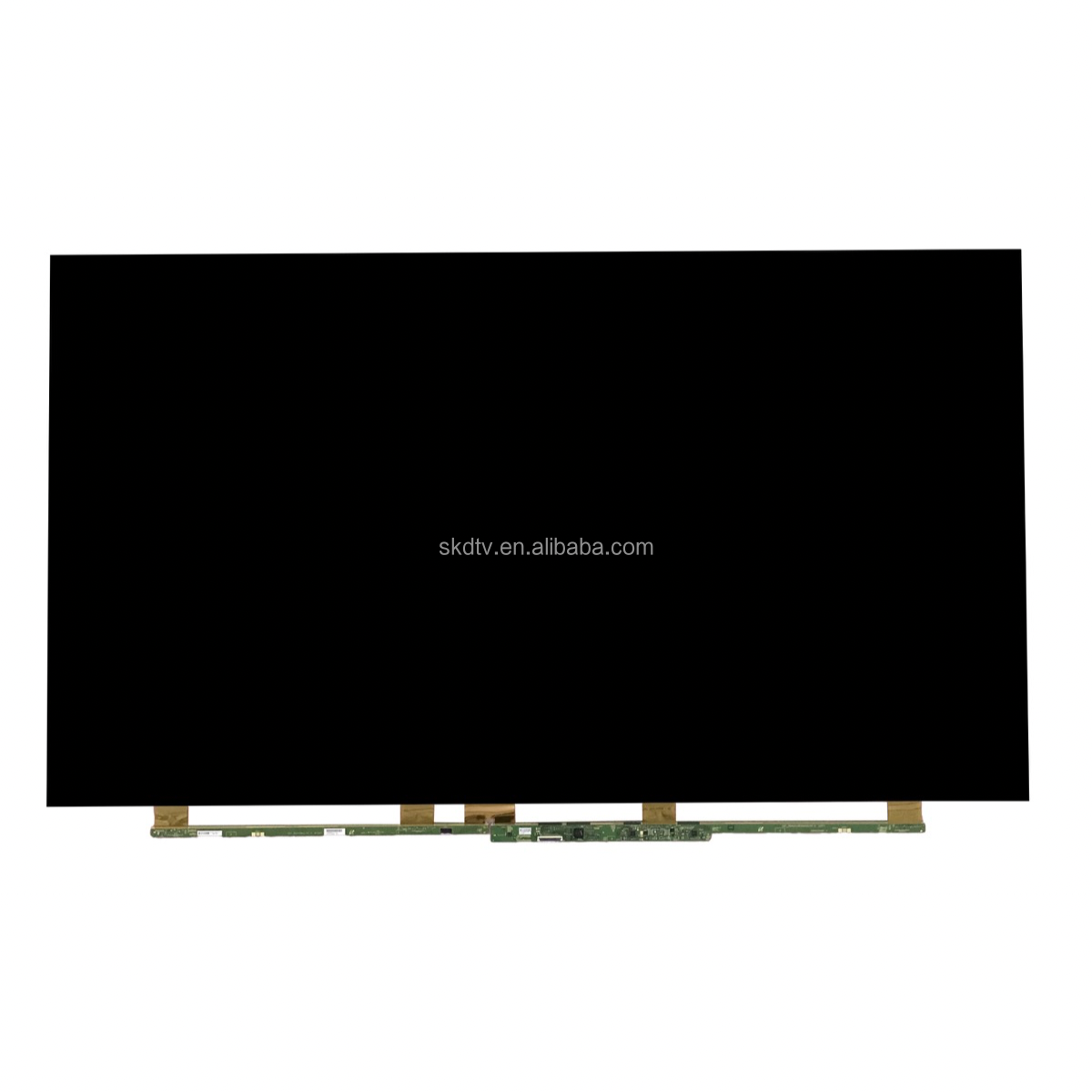

LSC550FN11 Model Overview
LSC550FN11 is a 55" diagonal display panel product from BOE Technology Group Co., Ltd. (hereafter called BOE), without backlight, without touch screen. It features an operating temperature range of 0~50°C , a storage temperature range of -20~60°C . It's general features are summarized by Xiongshi in the following: sRGB 83%, 1.07BColors. Based on its features, Xiongshi recommend that this model be applied to TV Sets etc.Built-in COF Built-in 4 source chips driver IC. According to the information stored in Xiongshi this model mass production on 2017,Q1, Now this model is Discontinued. We inputted this model's specification on Dec 10 2015 for the first time, and the latest update on May 17, 2023.
On the basis of latest version datasheet Rev.O which was released out on 2017,Q1, LSC550FN11 supports display 3840*2160 Ultra HD (UHD) aka 4K with aspect ratio of 16:9 (W:H). As for mechanical detail, it features active area of 1209.6*680.4 mm, outline size of 1223.6*697.1 mm, with net weight of 2.40Kgs (Typ.). As a ADS, Normally Black, Transmissive CELL product, LSC550FN11 can provides 5000/1 transimissive contrast ratio, 89/89/89/89 viewing angle, best view direction on Symmetry , thus presenting a palette of 1.07B colors, also with performance of color gamut 69% (NTSC), 83% sRGB. This product have no backlight. LSC550FN11 utilizes V-by-One as it's signal inputting systerm, which connected by 51 pins Connector . It's typical vertical frame rate (Fv) is 60Hz.
Panel Brand Introduction
Samsung is a globally recognized electronics manufacturer based in Seoul, South Korea. Founded in 1938, Samsung has grown to become one of the largest electronics companies in the world, with a wide range of products that include mobile devices, home appliances, semiconductors, and displays.
As a leader in the display industry, Samsung offers a wide range of TV screen sizes and resolutions, including 32 inches, 42 inches, 43 inches, 48 inches, 49 inches, 50 inches, 55 inches, 65 inches, 75 inches, and 86 inches displays. These displays are available in 720p, 1080p, 4K, and UHD resolutions, catering to the different needs of its customers.
Samsung is also a major player in the open-cell TV display business, offering a range of high-quality TV screen and panel replacement parts for TV repair. The company's 55 inch 4K LCD LED TFT Display Open Cell TV Screen Spare Panel Replacement Parts, for instance, is a popular option among customers looking to repair their TV screens.
As a provider of open-cell TV screen solutions, Samsung's open-cell TV panels can also be used in refurbished TV sets. Refurbished displays undergo a rigorous testing and repairing process, ensuring the quality of the product while also providing a more cost-effective solution for customers.
Refurbished displays are becoming increasingly popular, as they offer a lower-priced alternative to new displays. They can be used in a range of applications, from consumer electronics to industrial displays, and are often used in situations where high-quality performance is required, but cost constraints are a factor.
Overall, refurbished displays offer a great option for customers who want to save on costs without sacrificing quality, and Samsung is proud to offer these solutions to our customers.
In addition to its open-cell displays, Samsung also provides a range of display screens, panels, and other electronic components for mobile devices, computer screens, tablets, and monitors. Its products utilize the latest LCD, LED, and OLED technologies, ensuring high-quality performance, durability, and longevity.
With a long history of innovation and excellence, Samsung is committed to delivering high-quality electronics products that meet the evolving needs of its customers worldwide. The company's focus on technological innovation and customer satisfaction is reflected in its wide range of products and services, making it a leader in the worldwide electronics industry.
