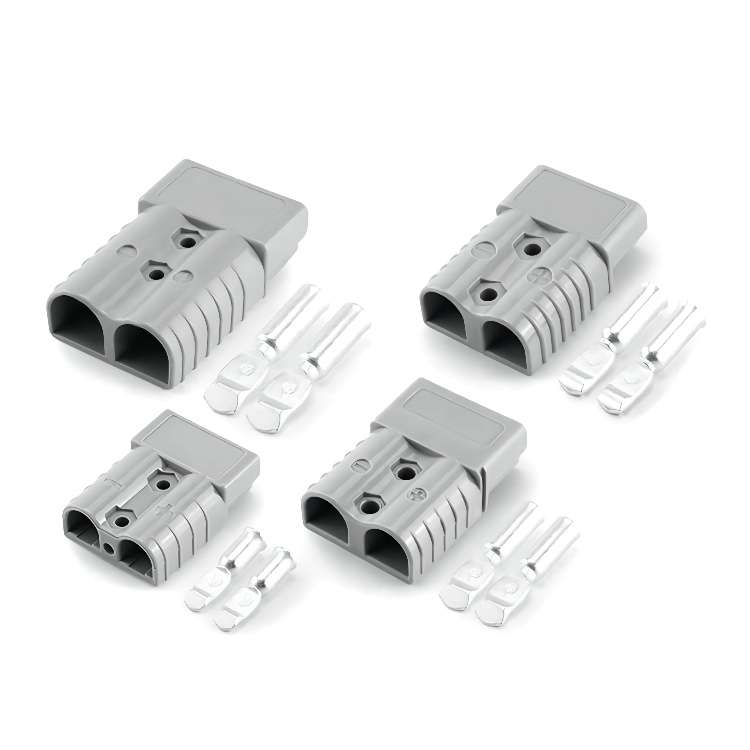

Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug male female SB50 SB120 SB175 SB350

Andersons connector 50A 120A 175A 350A 600V Battery Connector Gray andersons plug male female SB50 SB120 SB175 SB350

FOB Reference Price: Get Latest Price

≥500 Pieces

US $0.42

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Model Number:: SB50 SB120 SB175 SB350

Product Name:: Anderson-Connector

Current Rating:: 50A,120A,175A,350A

Certificate:: RoHs

Operating Temperature:: -45℃-+70℃

application:: Electric Forklift

Quick Details

Type:: Connector

Application:: PCB

Gender:: Male/Female

Place of Origin:: Guangdong, China

Model Number:: SB50 SB120 SB175 SB350

Product Name:: Anderson-Connector

Current Rating:: 50A,120A,175A,350A

Certificate:: RoHs

Operating Temperature:: -45℃-+70℃

application:: Electric Forklift

Specification sheet

Name	Specifications
Rated current	50A	120A	175A	350A
Rated voltage	600V	600V	600V	600V
Terminal material	The copper plating silver	The copper plating silver	The copper plating silver	The copper plating silver
The shell material	Flame retardant PC	Flame retardant PC	Flame retardant PC	Flame retardant PC
Fire rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Inside the shell	65Mn	65Mn	65Mn	65Mn
Environment temperature	-20℃~105℃	-20℃~105℃	-20℃~105℃	-20℃~105℃
Wire size（US standard）	14AWG~6AWG	8AWG~4AWG	6AWG~1/0AWG	4AWG~2/0AWG
Wire size（National standard）	2mm²~16mm²	10mm²~25mm²	16mm²~50mm²	25mm²~70mm²

Product Description

There are a wide range of products in our store, and many of them have not been released yet. Welcome to send product pictures or datasheet what you need , and we will provide you with quotation as soon as possible.
