Quick Details
-
Model Number:
-
customized
-
Origin:
-
Mainland China
-
Certification:
-
NONE
Quick Details
-
Material:
-
PE
-
Place of Origin:
-
China
-
Brand Name:
-
SDPSI
-
Model Number:
-
customized
-
Origin:
-
Mainland China
-
Certification:
-
NONE

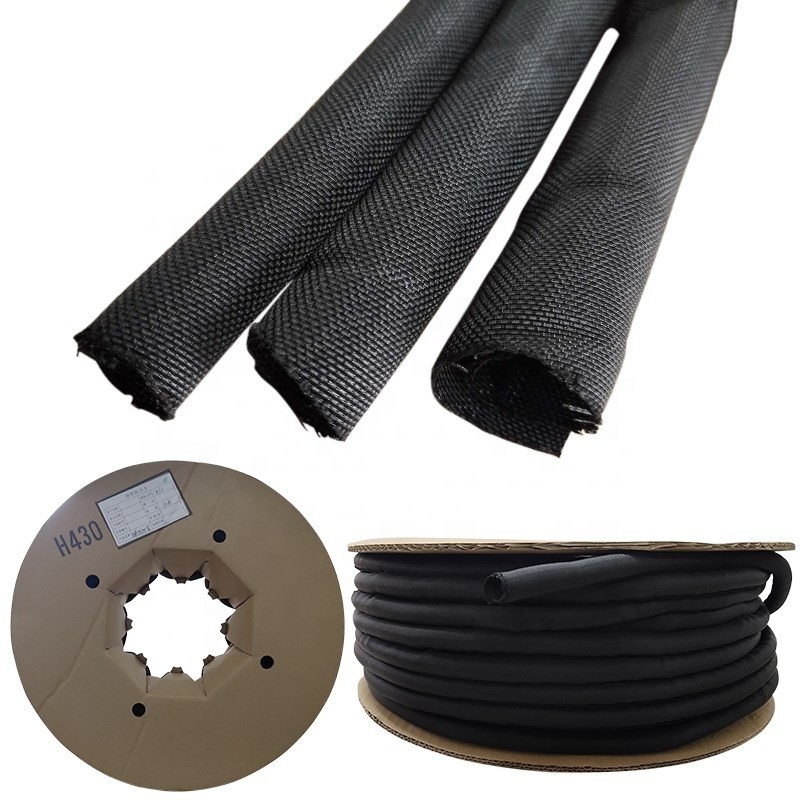

You are buying woven wrap split braided sleeving in black.
This is similar to self closing wrap - the out side appearance is different.
It has a 25% overlap for expansion.
The sleeving is split for quick and easy installation.
no need to remove harness or remove plugs.
Description
WOVEN WRAP SPLIT BRAIDED SLEEVING has been engineered from the ground up to meet the demanding specifications of today's modern wiring harness industry.
WOVEN WRAP
-WW utilizes many of the same characteristics as our original f&6 split braided sleeving including the easy wrap around design and the extra overlap to enclose around important wires in electronic communication and power systems.
The new woven construction provides superior elastic flexibility with unbeatable coverage over any harness assembly. Wire harness professionals will also appreciate the increased abrasion resistance WOVEN WRAP
-WW will provide to their cable assemblies.
SCS self-woven wrap is a non-expandable sleeving woven from monofilament (weft) and multifilament (warp) polyester yarns. It is lightweight, cost-effective and highly abrasion resistance, the split open design allows easy install on the cable harness which has been assembled.
Application:
Most commonly used on wire harnesses, cable assemblies, to provide a tough, durable protection in automotive, telecom, automatic equipment, railways and panel boards.
Technical data:
Material: Polyester monofilament and multifilament
Operating range: -50 ~+150 °C
Melt point:240± 10°C
Flammability: BS6853
Approved: RoHS, Halogen free
Standard colours : Black
Cutting tool: Hot knife
