Quick Details
-
Warranty(Year):
-
5-Year
-
Lamp Luminous Efficiency(lm/w):
-
160
-
Lamp Luminous Flux(lm):
-
280,000lm
-
CRI (Ra>):
-
70
-
Beam Angle(°):
-
10°, 20°, 40°, 60°, 90°, 10°, 135*60°, 97*47°
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China, Shenzhen
-
Brand Name:
-
FOCUS(OEM/ODM)
-
Model Number:
-
DHM-1800W
-
Working Temperature(℃):
-
-40℃ ~ 50℃
-
Product Name:
-

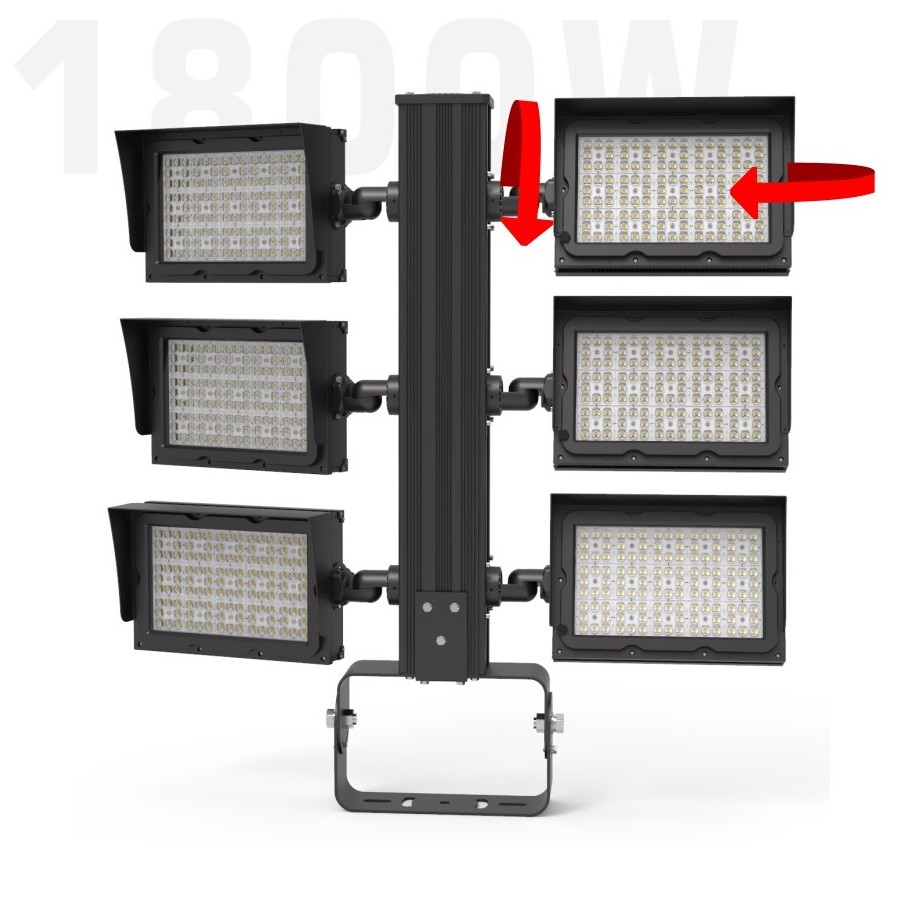

240W ~ 1800W Stadium Lamp Rotatable LED ight mast light
-
Power:
-
240W, 300W, 480W, 600W, 720W, 900W, 1200W, 1800W
Quick Details
-
Lamp Body Material:
-
Aluminum
-
Application:
-
Sports Stadiums
-
Light Source:
-
LED
-
Warranty(Year):
-
5-Year
-
Lamp Luminous Efficiency(lm/w):
-
160
-
Lamp Luminous Flux(lm):
-
280,000lm
-
CRI (Ra>):
-
70
-
Beam Angle(°):
-
10°, 20°, 40°, 60°, 90°, 10°, 135*60°, 97*47°
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
Guangdong, China, Shenzhen
-
Brand Name:
-
FOCUS(OEM/ODM)
-
Model Number:
-
DHM-1800W
-
Working Temperature(℃):
-
-40℃ ~ 50℃
-
Product Name:
-
240W ~ 1800W Stadium Lamp Rotatable LED ight mast light
-
Power:
-
240W, 300W, 480W, 600W, 720W, 900W, 1200W, 1800W
Product Description
Details Images
All beam angle optional:
Family Product
240W-1800W ,
160lm/w high mast light
|
Power
|
lumen
|
Electrical parameters
|
Product
dimension
|
|
240W
|
38,400lm
|
Input voltage: AC110V, AC220V,
CRI: Ra70, Ra80
CCT: 2700K-6500K
Beam angle: 10°/20°/40°/60°/90°
PF: >0.95
Suger protection: 6KV +10KV/20KV SPD
IP66 / IK08 Work temperature: -40℃ ~ 50℃
Warranty: 5 years
|
518*269*136mm
|
|
300W
|
46,500lm
|
|
518*269*136mm
|
|
480W
|
76,800lm
|
|
745*594*172mm
|
|
600W
|
93,000lm
|
|
745*594*172mm
|
|
720W
|
115,200lm
|
|
847*745*172mm
|
|
900W
|
139,500lm
|
|
847*745*172mm
|
|
1200W
|
186,000lm
|
|
911*1125*181mm
|
|
1800W
|
279,000lm
|
|
1191*1125*181mm
|
Feature:
1. High luminaire efficiency up to 155lm/w;
2. Marine grade aluminum housing;
3. IP66 and IK10 protection rate;
4. 5 years warranty;
5. Folding aluminum fin design which are very light weight;
6. ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved;
1.High Efficiency
Uses high quality Lumileds 5050, LED High Mast Light Efficiency up to 160Lm/W. Save more energy consumption.
1. High luminaire efficiency up to 155lm/w;
2. Marine grade aluminum housing;
3. IP66 and IK10 protection rate;
4. 5 years warranty;
5. Folding aluminum fin design which are very light weight;
6. ETL DLC TUV CE CB SAA RoHS LM79 LM80 TM21 IK10 Salt Spray test approved;
1.High Efficiency
Uses high quality Lumileds 5050, LED High Mast Light Efficiency up to 160Lm/W. Save more energy consumption.
2.Heat dissipation
Folding aluminum fin design which are very light weight. Increase the heat dissipation surface area by air cooling to dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good! Compared with traditional die-cast aluminum and profile aluminum, which is heavier and there are certain safety risks. On the contrary ,the aluminum fin heat sink are more secure.
Folding aluminum fin design which are very light weight. Increase the heat dissipation surface area by air cooling to dissipate heat and expand the contact area with air! It speeds up the spread of heat! Thermal effect is good! Compared with traditional die-cast aluminum and profile aluminum, which is heavier and there are certain safety risks. On the contrary ,the aluminum fin heat sink are more secure.
Installation Instructions
Application
LED high mast flood lighting commonly used for sports activities and other large areas in need of general outdoor illumination.
>
Parking lot, exhibition hall, landmark, buildings for public lighting, night scene lighting and etc;
>
Gym stadium, building passage, bridges, highway, Supermarket, shopping mall etc.
>
Warehouse, tunnel lighting, advertisement, gas station and factory lighting etc;
>
Status and monument lighting, flagpole lighting, large sign and billboard illumination etc;
>
Outdoor garden and landscape lighting, tree uplighting decoration, architectural wall washing facade lighting and etc;
Our Service
Free Lighting Simulation service:
You can ask us offer original IES files for your DIALux design.
You can ask us offer original IES files for your DIALux design.
