Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
6
-
Place of Origin:
-
SHN
-
Brand Name:
-
SIGN-CNC
-
Voltage:
-
380V 50HZ/ 220V 50HZ
-
Dimension(L*W*H):
-
3150*2000*1700mm
-
Power (kW):
-
3.7
-
Weight (KG):
-
1300
-
Product name:
-
Cnc Router Wood Carving Machine
-
Function:
-
Wood Acylic Plywood MDF Engraving
-
Working area:
-
1300x2500x200mm
-
Spindle:
-
6kw Air-cooled Spindle
-
Motor and driver:
-
AC servo motor and driver
-
Table surface:
-
Vacuum +T-slot
-
Inverter:
-
Folinn 7.5kw Inverter
-
Guide rail:
-
25mm Square Guide Rail
-
Control system:
-
DSP A11 Control System
-
After-sales Service Provided:
-
24 Hours Online Service+Engineers
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 18000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
6
-
Place of Origin:
-
SHN
-
Brand Name:
-
SIGN-CNC
-
Voltage:
-
380V 50HZ/ 220V 50HZ
-
Dimension(L*W*H):
-
3150*2000*1700mm
-
Power (kW):
-
3.7
-
Weight (KG):
-
1300
-
Product name:
-
Cnc Router Wood Carving Machine
-
Function:
-
Wood Acylic Plywood MDF Engraving
-
Working area:
-
1300x2500x200mm
-
Spindle:
-
6kw Air-cooled Spindle
-
Motor and driver:
-
AC servo motor and driver
-
Table surface:
-
Vacuum +T-slot
-
Inverter:
-
Folinn 7.5kw Inverter
-
Guide rail:
-
25mm Square Guide Rail
-
Control system:
-
DSP A11 Control System
-
After-sales Service Provided:
-
24 Hours Online Service+Engineers

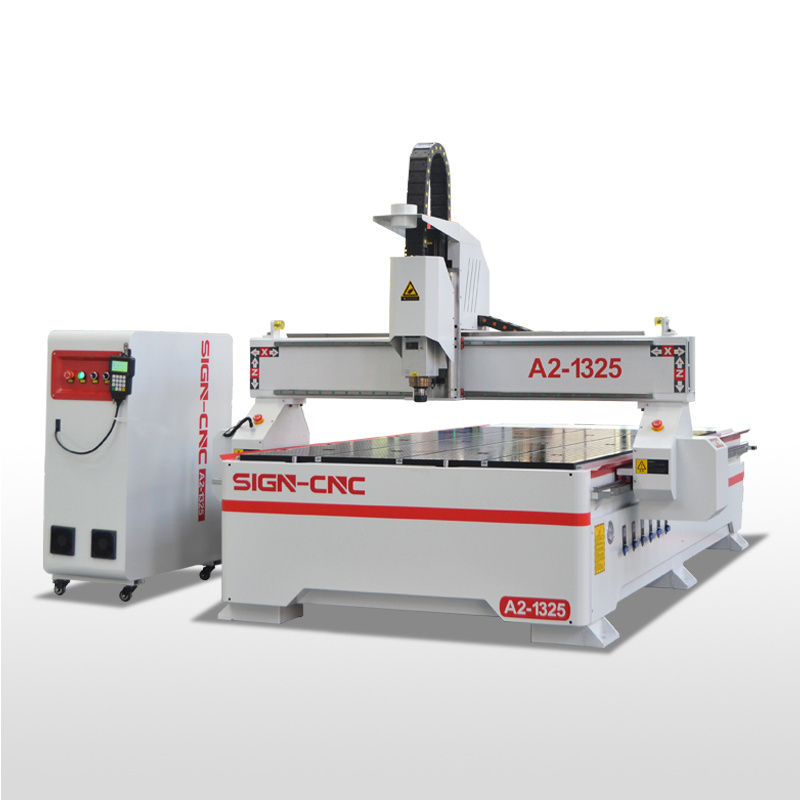

CE 1325 Wood Router 3 Axis CNC Engraving Cutting Machine 3D CNC Wood Carving Router Machine
Product Description
Specification
|
Item
|
Data
|
|
Model
|
A2-1325/1530/2030/2040
|
|
X, Y Working size
|
1300*2500/1500*3000/2000*3000/2000*4000mm
|
|
Z feed Height
|
200mm
|
|
Table Surface
|
Vacuum table with T-slot table
|
|
Vacuum pump
|
5.5kw vacuum pump
|
|
X, Y Structure
|
Rack and Pinion, Linear Square Guide Rail
|
|
Z Structure
|
25mm Linear Square Guide Rail and Ball Screw
|
|
Max. Power Consumption
|
(Without spindle) 2.0Kw
|
|
Spindle Power
|
6kw Air-cooled spindle
|
|
Inverter
|
Folinn 7.5kw
|
|
Drive Motors
|
AC 750W Servo motor and driver
|
|
Reducer
|
Shimpo planetary reducer
|
|
Voltage
|
AC380V/220V 50/60Hz
|
|
Control System
|
DSP A11 control system
|
|
Optional Parts
|
Rotary,Multi-head and Semi-automatic tool changer
|
|
Warranty
|
Two years
|
Packing & Delivery
For LCL Shipping
(Less than Container Load),it is recommended to use export standard fumigation-free wooden boxes, which are stronger and suitable for long-distance transportation.
For FCL Shipping
(Full Container Load),it can be loaded directly at the factory without wooden boxes, and the maximum number of machines can be loaded to reduce costs.
