Quick Details
-
Dimension(L*W*H):
-
4050x2250x1250mm
-
Weight (KG):
-
280
-
Year:
-
2019
-
Name:
-
Portable Plasma Cutting Machine
-
Model:
-
LXP1530
-
Z Axis Clearance:
-
150mm ( Optional)
-
Transmission System:
-
Rack Pinion And Hiwin Linear Rails For X/Y
-
Max. Cutting Speed:
-
12000mm/Min
-
Max. Travelling Speed:
-
20000mm/Min
-
Software:
-
Fastcam Software
-
Working table:
-
Sawtooth working table
-
Type:
-
Portable style
-
Machine color:
-
White or custom made
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
JNLINK
-
Voltage:
-
380v / 220v , three phase
-
Dimension(L*W*H):
-
4050x2250x1250mm
-
Weight (KG):
-
280
-
Year:
-
2019
-
Name:
-
Portable Plasma Cutting Machine
-
Model:
-
LXP1530
-
Z Axis Clearance:
-
150mm ( Optional)
-
Transmission System:
-
Rack Pinion And Hiwin Linear Rails For X/Y
-
Max. Cutting Speed:
-
12000mm/Min
-
Max. Travelling Speed:
-
20000mm/Min
-
Software:
-
Fastcam Software
-
Working table:
-
Sawtooth working table
-
Type:
-
Portable style
-
Machine color:
-
White or custom made
-
Certification:
-
CE
SIron stainless steel aluminum sheet cnc plasma machine/ plasma cutting table / cnc plasma kit
> Brief introduction
Plasma cutting machine, plasma cutting with different working gases can cut a variety of metal but oxygen
difficult to cut , especially for non-ferrous metals (stainless steel, aluminum, copper, titanium, nickel) cutting
effect is better; its main advantage is that the cutting thickness is not Large metal, the plasma cutting speed,
especially in cutting ordinary carbon steel sheet, the speed of method up to 5 to 6 times than oxygen cutting,the cutting surface smooth, hot deformation is small, almost no heat affected area.

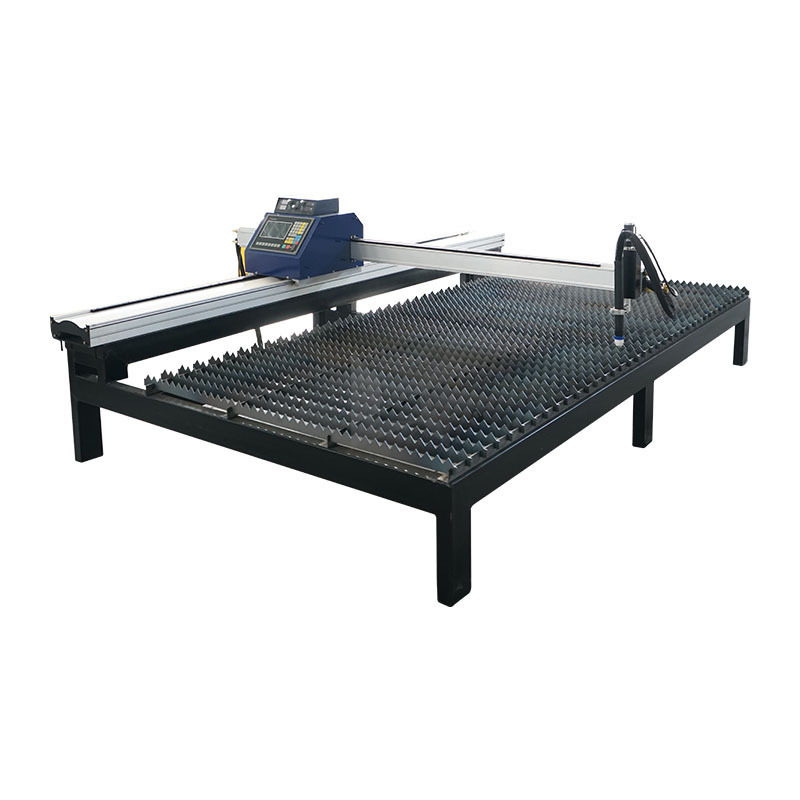

> Portable Plasma cutting machine machine 1500x3000mm
> Machine parameters
| No. | Description |
LXP1530 (Optional:other size can be customized) |
| 1 | Working Size |
1500*3000mm (Optional:other size can be customized) |
| 2 | Z Axis Clearance | 150mm(200 And Higher Is Optional) |
| 3 | Table Type | Sawtooth working table (Optional:Blade working table) |
| 4 | Transmission System | Rack Pinion And Hiwin Linear Rails For X/Y |
| 5 | Driving System | Stepper Motor And Drivers(Servp motor is optional) |
| 6 | Max. Cutting Speed | 12000mm/Min(different configuration and different material and thickness speed is different) |
| 7 | Max. Travelling Speed | 30000mm/Min(different configuration speed is different) |
| 8 | Working Voltage | 380V/3ph(220V/3ph is optional) |
| 9 | Plasma Generator | Huayuan China and USA power as your requirements |
| 10 | Arc Mode | Non-Contact Arc, Arc Pressure Adjuster |
| 11 | Output Current | 63/100/120A/160A/200A China(45/65/85/105/125/200A USA) |
| 12 | Max. Cutting Thickness | 6/15/18/20/30mm |
| 13 | Operating System | Starfire Controller/Start Controller/JiaoDa fangling controller |
| 14 | Working Material |
Steel, Aluminum, Galvanized Sheet, Titanium Plate, Platinum Plate and almost all of the metal |
> Machine parts
> Machine application
Application:
Advertising industry:
Advertising signs, logo making, decorative products, production of advertising and avariety of metal materials.
Metal industry:
For steel, Carbon Steel, Stainless steel, alloy steel, spring steel, copper plate, aluminium plate,gold, silver,
Titanium and other metal plate and tube.
Jinan JNLINK
is established in July 2004 ,owns more than 500 square meters of researching and office space, more
than 32000 square meters factory.All machines ,passed the European Union CE authentication, Products are sold to USA, Canada, Australia, Europe,
South east Asia, Africa etc, more than 120 countries and areas, and supply OEM service for more than
30 manufactures.
Our Products includes All kind of
1.CNC Plasma cutting machine
2.Laser marking machine(Fiber/CO2/UV/Green light)
3. Laser machine ( laser cutting and welding and engraving )
4. CNC knife cutting machine
5. CNC router and so on.
We can also customized non-standard assist equipment as your detailed work requirements.
