Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Slocable
-
Model Number:
-
CN40-CM solar connector
-
Suitable brand:
-
Multic Contact, Amphenol
-
Certificate solar connector:
-
TUV,CE
-
Rated current of solar connector:
-
40A
-
Connector System solar connector:
-
Crimp connector
-
Test voltage solar connector:
-
8000V
-
Rated voltage of solar connector:
-
DC 1000V 1500V
-
Temperrature range solar connector:
-
-40~+90degree
-
Contact material of solar connector:
-
Copper,Tin Plated
-
Insulation material solar connector:
-
PPO
-
Degree of protection solar connector:
-
IP68
Quick Details
-
Type:
-
MMCX
-
Application:
-
Power
-
Gender:
-
male&female
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Slocable
-
Model Number:
-
CN40-CM solar connector
-
Suitable brand:
-
Multic Contact, Amphenol
-
Certificate solar connector:
-
TUV,CE
-
Rated current of solar connector:
-
40A
-
Connector System solar connector:
-
Crimp connector
-
Test voltage solar connector:
-
8000V
-
Rated voltage of solar connector:
-
DC 1000V 1500V
-
Temperrature range solar connector:
-
-40~+90degree
-
Contact material of solar connector:
-
Copper,Tin Plated
-
Insulation material solar connector:
-
PPO
-
Degree of protection solar connector:
-
IP68

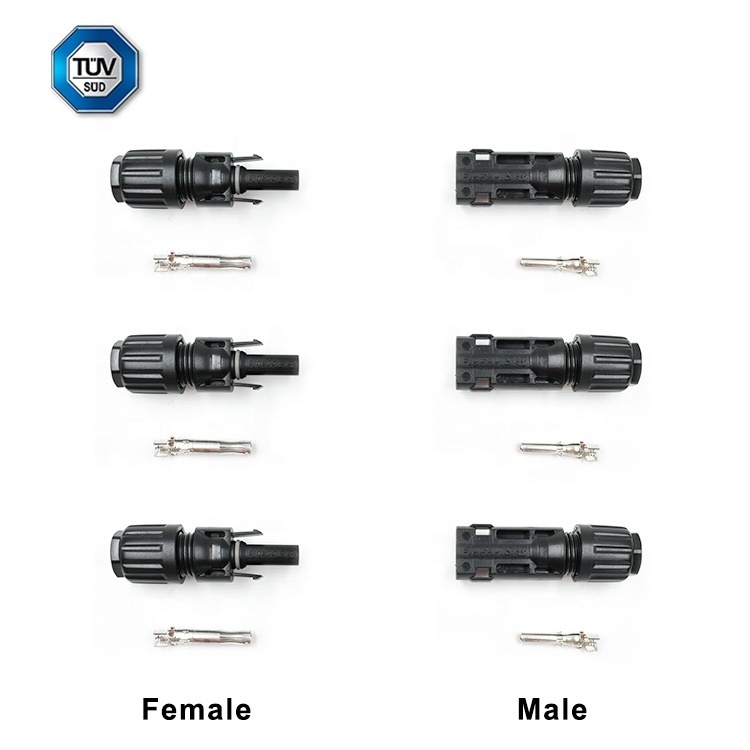

IP68 Waterproof TUV approved 40A 1500V dc solar mc wire connectors for solar energy system
Description:
· Simple on-site processing
· Mating safety provided by keyed housings
· Mutiple plugging and unplugging cycles
· Accomodates PV cable with deferent insulation diamaters
· High Voltage and High Current carrying capacity
· TUV and CE approved
· Competitive price
· IP68 waterproof protection
Technicale Data:
| Insulation Material: | PPO | Contact material: | Copper,Tin plated |
|
Rated current: |
40A(2.5mm2, 4mm2,6mm2) |
Insertion force: | Max. 50N |
| Rated Voltage: | 1000V/1500V DC | Withdrawal force: | Min. 50N |
| Test voltage: | 8kV(50Hz,1min) | Ambient temperature range: | -40℃~+90℃ |
| Contact resistance: | <0.5mΩ | Flame class: | UL94-V0 |
| Waterproof protection: | IP68 | Connecting system: | Crimping connection |
| Overvoltage degree: |
CATIII/2 |
Suitable cable cross section: |
2.5/4/6/10mm2, 14/12/10/8AWG |
Application:
