Quick Details
-
Model Number:
-
PLH
-
Specification:
-
3/4"-12"
-
Length:
-
50m 100m, 50M 100M
-
Thickness:
-
1mm-4mm, 1mm-4mm
-
Standard:
-
ISO14001 ISO9001
-
Product name:
-
large diameter water hose
-
Color:
-
green blue yellow red etc
-
Certification:
-
ISO9001 14001
-
Feature:
-
Anti-UV flexibility Anti-chemical color available
-
W.P.:
-
4BAR-10BAR
-
B.P.:
-
12BAR-30BAR
-
Packing:
-
plastic film,non woven fabric,carton,wooden case,container
-
Sample:
-
Available
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Orientflex
-
Model Number:
-
PLH
-
Specification:
-
3/4"-12"
-
Length:
-
50m 100m, 50M 100M
-
Thickness:
-
1mm-4mm, 1mm-4mm
-
Standard:
-
ISO14001 ISO9001
-
Product name:
-
large diameter water hose
-
Color:
-
green blue yellow red etc
-
Certification:
-
ISO9001 14001
-
Feature:
-
Anti-UV flexibility Anti-chemical color available
-
W.P.:
-
4BAR-10BAR
-
B.P.:
-
12BAR-30BAR
-
Packing:
-
plastic film,non woven fabric,carton,wooden case,container
-
Sample:
-
Available

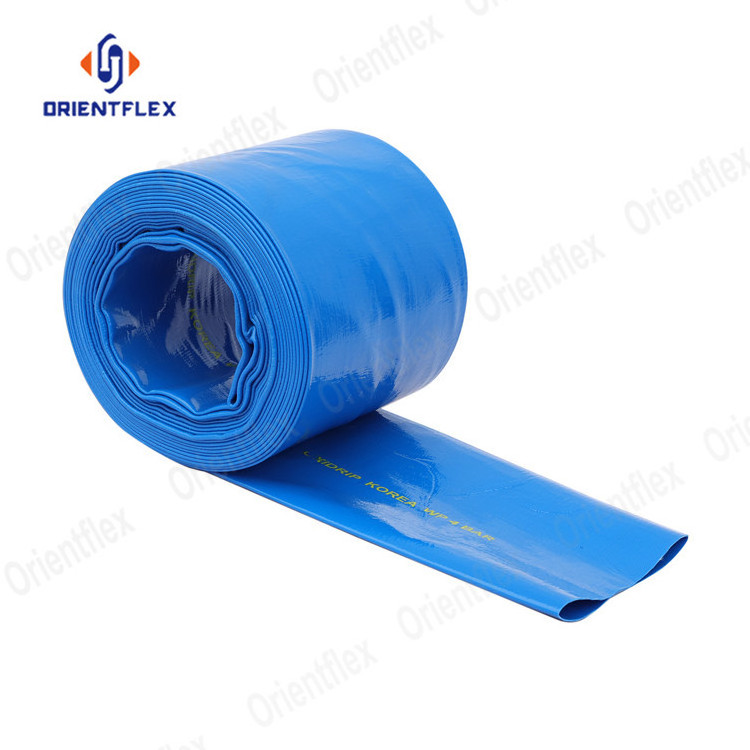

Construction:
Tube and Cover: PVC, blue,orange,red.
Reinforcement: high tensile polyester braiding
Application:
PVC layflat hose is designed for light and heavy duty
applications,the hoses are most commonly used in
agricultural equipment where continuous water flow
through irrigation systems is required. Other appliaction
include water pump, pool & spa, construction, mines and
marine.
Characteristic:
1.Light weight,Good flexibility.
2.Corrosion resistant,anti-aging.
3.Easy handle & storage.
4.Various colors available.
5.Assemblies and/or customized lengths available.
6.Non-toxic,Non-smell
7.Burst pressure 3 times working pressure.
Temperature: -10℃ (-50 ℉ )to + 60°C (+ 140°F)
| Specification (light duty) | |||||||||
| Item Code | I.D | W.P. | B.P. | Length | Weight | Volume | |||
| inch | mm | psi | bar | psi | bar | m/roll | kg/m | m3/roll | |
| PLHL20 | 3/4" | 20 | 30-45 | 2-3 | 218 | 15 | 100 | 0.12 | 0.014 |
| PLHL25 | 1" | 25 | 30-45 | 2-3 | 218 | 15 | 100 | 0.15 | 0.019 |
| PLHL32 | 1-1/4" | 32 | 30-45 | 2-3 | 218 | 15 | 100 | 0.17 | 0.023 |
| PLHL38 | 1-1/2" | 38 | 30-45 | 2-3 | 218 | 15 | 100 | 0.21 | 0.026 |
| PLHL51 | 2" | 51 | 30-45 | 2-3 | 174 | 12 | 100 | 0.23 | 0.039 |
| PLHL64 | 2.5" | 64 | 30-45 | 2-3 | 174 | 12 | 100 | 0.32 | 0.047 |
| PLHL76 | 3" | 76 | 30-45 | 2-3 | 174 | 12 | 100 | 0.36 | 0.060 |
| PLHL102 | 4" | 102 | 30-45 | 2-3 | 174 | 12 | 100 | 0.55 | 0.083 |
| PLHL125 | 5" | 127 | 30-45 | 2-3 | 174 | 12 | 100 | 0.75 | 0.109 |
| PLHL153 | 6" | 153 | 30-45 | 2-3 | 174 | 12 | 100 | 0.90 | 0.141 |
| PLHL203 | 8" | 203 | 30-45 | 2-3 | 174 | 12 | 100 | 1.80 | 0.193 |
| Specification (standard duty) | |||||||||
| Item Code | I.D | W.P. | B.P. | Length | Weight | Volume | |||
| inch | mm | psi | bar | psi | bar | m/roll | kg/m | m3/roll | |
| PLHS20 | 3/4" | 20 | 58 | 4 | 218 | 15 | 100 | 0.14 | 0.014 |
| PLHS25 | 1" | 25 | 58 | 4 | 218 | 15 | 100 | 0.15 | 0.019 |
| PLHS32 | 1-1/4" | 32 | 58 | 4 | 218 | 15 | 100 | 0.17 | 0.023 |
| PLHS38 | 1-1/2" | 38 | 58 | 4 | 218 | 15 | 100 | 0.21 | 0.026 |
| PLHS40 | 1-1/2" | 40 | 58 | 4 | 218 | 15 | 100 | 0.22 | 0.026 |
| PLHS51 | 2" | 51 | 58 | 4 | 174 | 12 | 100 | 0.23 | 0.039 |
| PLHS64 | 2.5" | 64 | 58 | 4 | 174 | 12 | 100 | 0.32 | 0.047 |
| PLHS76 | 3" | 76 | 58 | 4 | 174 | 12 | 100 | 0.36 | 0.060 |
| PLHS102 | 4" | 102 | 58 | 4 | 174 | 12 | 100 | 0.55 | 0.083 |
| PLHS125 | 5" | 127 | 58 | 4 | 174 | 12 | 100 | 0.75 | 0.109 |
| PLHS153 | 6" | 153 | 58 | 4 | 174 | 12 | 100 | 1.20 | 0.141 |
| PLHS203 | 8" | 203 | 58 | 4 | 174 | 12 | 100 | 2.30 | 0.193 |
| PLHS254 | 10" | 254 | 58 | 4 | 174 | 12 | 50 | 2.60 | 0.178 |
| PLHS305 | 12" | 305 | 58 | 4 | 174 | 12 | 50 | 3.10 | 0.245 |
| Specification (Medium duty) | |||||||||
| Item Code | I.D | W.P. | B.P. | Length | Weight | Volume | |||
| inch | mm | psi | bar | psi | bar | m/roll | kg/m | m3/roll | |
| PLHM19 | 3/4" | 20 | 87 | 6 | 305 | 21 | 100 | 0.14 | 0.014 |
| PLHM25 | 1" | 25 | 87 | 6 | 305 | 21 | 100 | 0.17 | 0.019 |
| PLHM32 | 1-1/4" | 32 | 87 | 6 | 305 | 21 | 100 | 0.20 | 0.023 |
| PLHM38 | 1-1/2" | 38 | 87 | 6 | 305 | 21 | 100 | 0.25 | 0.026 |
| PLHM40 | 1-1/2" | 40 | 87 | 6 | 261 | 18 | 100 | 0.28 | 0.026 |
| PLHM51 | 2" | 51 | 87 | 6 | 261 | 18 | 100 | 0.30 | 0.039 |
| PLHM64 | 2.5" | 64 | 87 | 6 | 261 | 18 | 100 | 0.50 | 0.047 |
| PLHM76 | 3" | 76 | 87 | 6 | 261 | 18 | 100 | 0.55 | 0.060 |
| PLHM102 | 4" | 102 | 87 | 6 | 261 | 18 | 100 | 0.90 | 0.083 |
| PLHM125 | 5" | 127 | 87 | 6 | 261 | 18 | 100 | 1.10 | 0.109 |
| PLHM153 | 6" | 153 | 87 | 6 | 261 | 18 | 100 | 1.80 | 0.141 |
| PLHM203 | 8" | 203 | 87 | 6 | 261 | 18 | 100 | 2.80 | 0.193 |
| Specification (Heavy duty) | |||||||||
| Item Code | I.D | W.P. | B.P. | Length | Weight | Volume | |||
| inch | mm | psi | bar | psi | bar | m/roll | kg/m | m3/roll | |
| PLHH20 | 3/4" | 20 | 145 | 10 | 435 | 30 | 50 | 0.15 | 0.007 |
| PLHH25-1 | 1" | 25 | 116 | 8 | 348 | 24 | 50 | 0.17 | 0.010 |
| PLHH25-2 | 1" | 25 | 145 | 10 | 435 | 30 | 50 | 0.20 | 0.010 |
| PLHH32-1 | 1-1/4" | 32 | 116 | 8 | 348 | 24 | 50 | 0.19 | 0.012 |
| PLHH32-2 | 1-1/4" | 32 | 145 | 10 | 435 | 30 | 50 | 0.21 | 0.012 |
| PLHH38-1 | 1-1/2" | 38 | 116 | 8 | 348 | 24 | 50 | 0.24 | 0.013 |
| PLHH38-2 | 1-1/2" | 38 | 145 | 10 | 435 | 30 | 50 | 0.29 | 0.013 |
| PLHH40-1 | 1-1/2" | 40 | 116 | 8 | 348 | 24 | 50 | 0.25 | 0.013 |
| PLHH40-2 | 1-1/2" | 40 | 145 | 10 | 435 | 30 | 50 | 0.30 | 0.013 |
| PLHH45-1 | 1-3/4" | 45 | 116 | 8 | 348 | 24 | 50 | 0.32 | 0.018 |
| PLHH45-2 | 1-3/4" | 45 | 145 | 10 | 435 | 30 | 50 | 0.35 | 0.018 |
| PLHH51-1 | 2" | 51 | 116 | 8 | 348 | 24 | 50 | 0.35 | 0.020 |
| PLHH51-2 | 2" | 51 | 145 | 10 | 435 | 30 | 50 | 0.42 | 0.020 |
| PLHH64-1 | 2.5" | 64 | 116 | 8 | 348 | 24 | 50 | 0.55 | 0.024 |
| PLHH64-2 | 2.5" | 64 | 145 | 10 | 435 | 30 | 50 | 0.70 | 0.024 |
| PLHH76-1 | 3" | 76 | 116 | 8 | 348 | 24 | 50 | 0.66 | 0.030 |
| PLHH76-2 | 3" | 76 | 145 | 10 | 435 | 30 | 50 | 0.85 | 0.030 |
| PLHH102 | 4" | 102 | 116 | 8 | 348 | 24 | 50 | 1.00 | 0.042 |
| PLHH102 | 4" | 102 | 145 | 10 | 435 | 30 | 50 | 1.20 | 0.042 |
| PLHH153 | 6" | 153 | 116 | 8 | 348 | 24 | 50 | 2.20 | 0.071 |
| PLHH203 | 8" | 203 | 116 | 8 | 348 | 24 | 50 | 2.80 | 0.010 |
