Quick Details
-
Dimension(L*W*H):
-
4064*1778*1800mm
-
Application:
-
home, forest
-
Weight (KG):
-
355 KG
-
Max.Working Width(mm):
-
790mm
-
Power:
-
9hp / 15hp
-
Cutting witdth:
-
66cm / 79cm
-
Safe cutting Speed:
-
13-15s/m
-
Blade speed:
-
17m/min
-
Distance teeth:
-
22mm
-
Blade Wheel Dia.:
-
480 mm
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Rima
-
Usage:
-
wood cutting
-
Dimension(L*W*H):
-
4064*1778*1800mm
-
Application:
-
home, forest
-
Weight (KG):
-
355 KG
-
Max.Working Width(mm):
-
790mm
-
Power:
-
9hp / 15hp
-
Cutting witdth:
-
66cm / 79cm
-
Safe cutting Speed:
-
13-15s/m
-
Blade speed:
-
17m/min
-
Distance teeth:
-
22mm
-
Blade Wheel Dia.:
-
480 mm

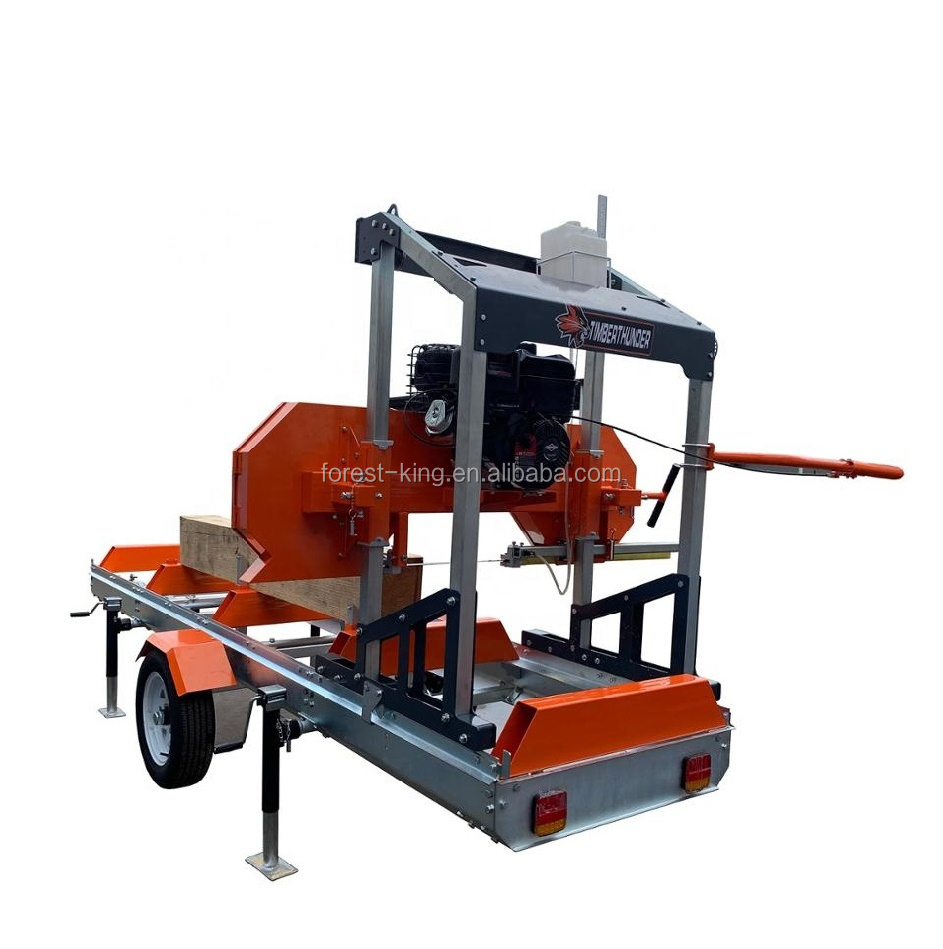

Portable swing blade saw mill band sawmill for cutting wood
PRODUCT SPECIFICATIONS
|
Model
|
RS26G
|
RS31G
|
RS26E
|
RS31E
|
|||
|
Power
|
Gasoline 9HP (LIFAN, Manual start)
|
Gasoline 15HP (LIFAN, Manual start)
|
Electric Motor 5.5KW
|
Electric Motor 7.5KW
|
|||
|
Displacement
|
301cc
|
420cc
|
400V 50HZ 3phase
|
400V 50HZ 3phase
|
|||
|
Cutting capacity
|
660*178*2794mm (26”*7”*110”)
|
790*178*2794mm (31”*7”*110”)
|
660*178*2794mm (26”*7”*110”)
|
790*178*2794mm (31”*7”*110”)
|
|||
|
Frame
|
4pcs
|
4pcs
|
4pcs
|
4pcs
|
|||
|
Blade size
|
3690*34*0.9mm (144”*1-1/4”*0.035”)
|
3960*34*0.9mm
(156”*1-1/4”*0.035”)
|
3690*34*0.9 mm (144”*1.25”*0.035”)
|
3960*34*0.9mm (156”*1-1/4”*0.035”)
|
|||
|
Safe cutting Speed
|
13-15s/m
|
13-15s/m
|
13-15s/m
|
13-15s/m
|
|||
|
Blade speed
|
17m/min
|
17m/min
|
17m/min
|
17m/min
|
|||
|
Distance teeth
|
22mm (0.86”)
|
|
|
|
|||
|
Blade Wheel Dia.
|
480 mm (18.8”)
|
|
|
|
|||
|
Dimension
|
4064*1778*1800mm (160”*70”*71”)
|
|
|
|
|||
|
Track size
|
4000x900mm
(157”x35.4”)
|
4000x1030mm
(157”x40.5”)
|
4000x900mm
(157”x35.4”)
|
4000x1030mm
(157”x40.5”)
|
|||
|
Packing
|
2080x570x830mm
|
2150 x570x830mm
|
2080x610x810mm
|
2150 x610x810mm
|
|||
|
Weight
|
315/355kg
|
|
352/380kg
|
|
|||
Optional portable sawmill trailers as followings.
|
Model
|
RST4-26
|
RST4-31
|
|
Trailer Axle
|
50x50mm
|
50x50mm
|
|
Trailer Size(L*W*H) |
3970(+1000mm
drawbar)x900x700mm |
3970(+1000mm
drawbar)x 1030x700mm |
|
Trailer wheels
with Fenders |
165/70R13 |
165/70R13 |
|
Trailer loading capacity
|
1500kg
|
1500kg
|
|
Trailer Lights
|
LED light kit
|
LED light kit
|
|
Trailer leveling jacks
|
6pcs
|
6pcs
|
|
Trailer Ball Coupler
|
2" (50mm)
|
2" (50mm)
|
|
Finish
|
Galvanized
|
Galvanized
|
|
Log Loading Ramp
|
Max. 1350kg
|
Max. 1350kg
|
|
Log Loading Winch
|
3000 lbs
|
3000 lbs
|
|
Weight
|
350/385kg
|
350/385kg
|
|
Packing
|
2000×550×680mm
|
2000×550×680mm
|
|
Model
|
RST6-26
|
RST6-31
|
|
Trailer Axle
|
50x50mm
|
50x50mm
|
|
Trailer Size(L*W*H)
|
6000(+1000mm
drawbar)x 900x700mm
|
6000(+1000mm
drawbar)x 1030x700mm
|
|
Trailer wheels
with Fenders
|
165/70R13
|
165/70R13
|
|
Trailer loading capacity
|
1500kg
|
1500kg
|
|
Trailer Lights
|
LED light kit
|
LED light kit
|
|
Trailer leveling jacks
|
8pcs
|
8pcs
|
|
Trailer Ball Coupler
|
2" (50mm)
|
2" (50mm)
|
|
Finish
|
Galvanized
|
Galvanized
|
|
Log Loading Ramp
|
Max. 1350kg
|
Max. 1350kg
|
|
Log Loading Winch
|
3000 lbs
|
3000 lbs
|
|
Weight
|
380/415kg
|
380/415kg
|
|
Packing
|
2000×550×680mm
|
2000×550×680mm
|
Details Images
Product pictures
Certifications
We have TUV CE for firewood wood processor, portable sawmill, hydraulic rotator; CE for crane, cone log splitter, grapple, flail mower, wood chipper, tree shear etc.
Besides, we also get
patent certificate for screw cone log splitter with grapple, t
rash compactor.
