Quick Details
-
Description:
-
5mm UV
-
Place of Origin:
-
Jiangsu, China
-
Package / Case:
-
thru hole
-
Power:
-
0.5W
-
Color:
-
UV color, 395nm, 370nm, 380nm, 365nm
-
Size:
-
5mm
-
Shape:
-
Round
-
Voltage:
-
3.0-3.6V
-
Current:
-
120mA
-
View angle:
-
35deg
-
Product name:
-
LED Diode
-
Packing:
-
Through hole
-
Lens color:
-
Transparent
Quick Details
-
Model Number:
-
LED
-
Brand Name:
-
Demo
-
Mounting Type:
-
thru hole
-
Description:
-
5mm UV
-
Place of Origin:
-
Jiangsu, China
-
Package / Case:
-
thru hole
-
Power:
-
0.5W
-
Color:
-
UV color, 395nm, 370nm, 380nm, 365nm
-
Size:
-
5mm
-
Shape:
-
Round
-
Voltage:
-
3.0-3.6V
-
Current:
-
120mA
-
View angle:
-
35deg
-
Product name:
-
LED Diode
-
Packing:
-
Through hole
-
Lens color:
-
Transparent
Products from Professional LED Manufacturer!

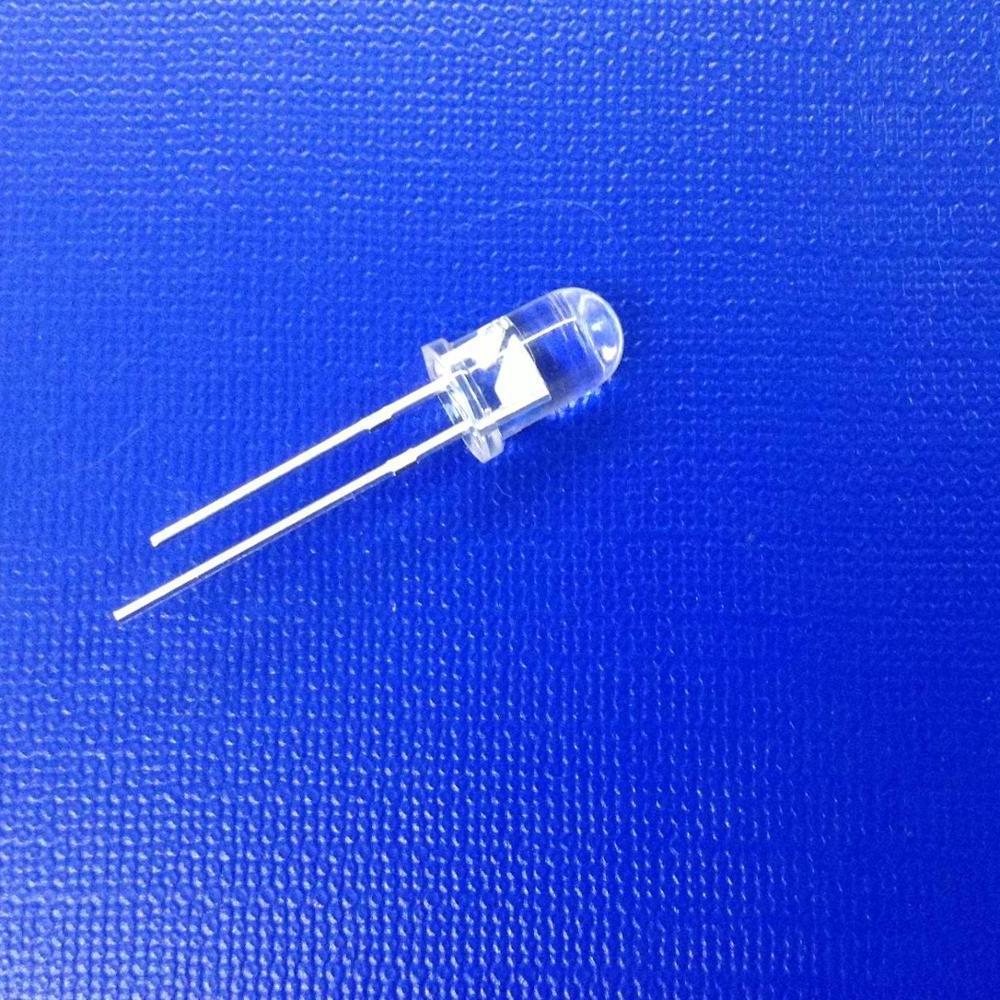

Factory Wholesale Transparent Round Head Thru Hole 0.5W High Power 5mm UV LED Diode
Product details
| Color | UV color, 365nm, 370nm, 380nm, 395nm |
| Size | 5mm |
| Shape | round head |
| Lens | clear |
| Power Consumption | 0.5W |
| Forword current | 120mA |
| Viewing angle | 35deg |
The First Choice in LED Customized Manufacturing!
LED Manufacturer with 10+ years Experience!
High-Quality Long Lifespan LED!
Our Service
1)Customized View angles are acceptable! 10deg, 15deg, 30deg, 45deg, 60deg, 90deg, 120deg, 160deg , etc. for options!
2)Customized LED shapes for options, round head shape, bullet head shape, flat head shape, rectangle shape, oval shape, concave shape, straw-hat shape, etc.
3)Various LED size for options, 2mm/3mm/4mm/5mm/8mm/10mm
Notice for LED Handling
1)All personnel in direct contact with the LEDs throughout the process of use shall perform anti ESD measures. Do not touch the LEDs directly with hands
2) When welding, the operator needs to pay attention to the welding time, welding temperature, and the positive and negative poles of LEDs should be clearly distinguished.
3) Electrical parameters such as current and voltage should not exceed the rated value.
Precautions for LED Soldering
1)The welding time should not exceed 3 seconds
2)The welding temperature is less than 260 ℃
3)Reflow welding is allowed only once
4)When welding, distinguish the positive and negative poles and avoid the lens to avoid damaging the lens.
5)When welding, distinguish the positive and negative poles of LEDs, take care to avoid touching the LED lens from lens-damaging.
6)Especially for IR LEDs and UV LEDs, try to take cooling measures as good as possible to provide adequate heat dissipation area.
7)For longer life of IR LEDs and UV LEDs, it is recommended to use a more stable constant current driver instead of a constant voltage driver.
LED is widely applied in advertisment lights, decorative light, bridge decations, building decorations, city brightness projects, household lights, street lights, signal lights in engineering, emergency lights, torches, etc.
LED bulbs are widely used in different application range, featured in energy-saving, environmental
protective, and long life span.
We are professional manufacturer in LED and it applications as per customer's requirements. There are various categories available for your options. Pls take a close look at our products for their specifications.
