Quick Details
-
Power:
-
5KW
-
Dimension(L*W*H):
-
1140*620*1500mm
-
Weight:
-
95 KG
-
Product name:
-
Re-5220A 20l rotary evaporator
-
Rotation flask:
-
20L
-
Receiving flask:
-
10L
-
Lifting type:
-
Automatic lifting
-
Condenser:
-
vertical type, double serpentine tube
-
Rotation speed:
-
5-110 rpm
-
Evaporation speed (H2O):
-
5L/h
-
Bath power:
-
5KW
-
Staic temp control range & Wave:
-
RT~99℃ & 2℃
-
Motor power:
-
120W
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
TOPTION
-
Voltage:
-
220V/50HZ
-
Power:
-
5KW
-
Dimension(L*W*H):
-
1140*620*1500mm
-
Weight:
-
95 KG
-
Product name:
-
Re-5220A 20l rotary evaporator
-
Rotation flask:
-
20L
-
Receiving flask:
-
10L
-
Lifting type:
-
Automatic lifting
-
Condenser:
-
vertical type, double serpentine tube
-
Rotation speed:
-
5-110 rpm
-
Evaporation speed (H2O):
-
5L/h
-
Bath power:
-
5KW
-
Staic temp control range & Wave:
-
RT~99℃ & 2℃
-
Motor power:
-
120W

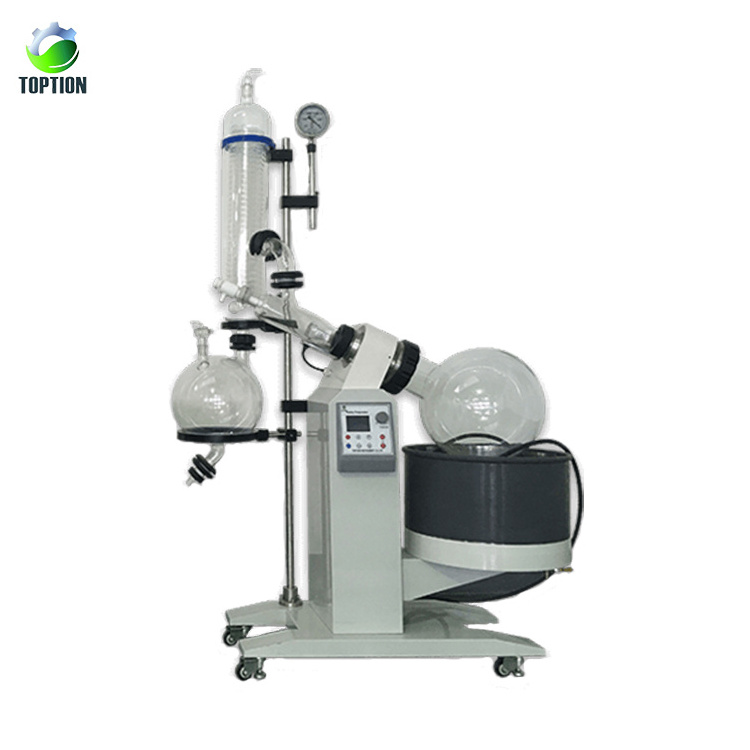

TOPTION Hot Selling 20 liter Vacuum Distillation Rotary Evaporator Price with CE
20L rotary evaporator is an exclusive research and developed large-size rotary evaporator of TOPTION, designed for the purpose of industrial and production use.
It is widely used for factory, cosmetic factory, winery, resin factory and so on.
|
Model
|
RE-5220A
|
|
Rotation flask
|
20L
|
|
Receiving flask
|
10L
|
|
Lifting type
|
Automatic lifting
|
|
Condenser
|
vertical type, double serpentine tube
|
|
Rotation speed
|
5-110 rpm
|
|
Evaporation speed (CH3CH2OH)
|
5L/h
|
|
Bath power
|
5KW
|
|
Staic temp control range & Wave
|
RT~99℃ & 2℃
|
|
Standard power
|
220V 50/60Hz single phase
|
|
Motor power
|
120W
|
|
Dimension
|
1100 x 700 x 2000mm
|
|
Dispaly
|
Rotation speed and temperature are digital display
|
1. Easier installation than old models
2. All seals materials are PTFE, FFKM with special treatment, with better seal effect, More corrosion resistant and durable
3. Controlling system in one panel, more accurate, and simpler the operation steps.
4. inside automatic check valve, easy to keep the vacuum condition and work continuously.
5. Stainless steel sheet for bath is one time stamping, vertical lift system automatically.
6. LCD display for temperature and rotation speed
7. Air guide bottle is with unique PTFE combination valve (original rotary evaporator is with glass valve), can control airflow, liquid flow anyway. Feeding liquid, discharging liquid at any time when rotary evaporator is working.
8. With wheels on bottom, easy to movable.
TOPTION is professional lab solution provider,and all devoted to provide the best solutions & products for global customers,who are work in biology, chemistry, environment analysis, food, academic research, etc.
Main products contains chemical synthesis reactor, rotary evaporator, short path distillation, glass reactor etc.
TOPTION company also has its own trademark,"TOPTION". TOPTION brand instrument has own high reputation in more than 70 countries and regions, provide technical support for tens of thousands organizations to solve problems within their research, special foruniversity, research institutes, industries, inspection agencies, etc.
TOPTION has passed the "ISO9001:2008 Quality Management System"certification
