Quick Details
-
Graphic Format Supported:
-
DXF, BMP, GC/SVG/JPG/JPEG/PNG/TIF
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NEJE
-
Dimension(L*W*H):
-
970x582x60mm
-
Weight (KG):
-
7 KG
-
Core Components:
-
laser module
-
Optical Power:
-
12w to 24w
-
Rotary axis expansion:
-
supported
-
Frame Material:
-
All-aluminum alloy and PC material hybrid frame
-
17mm pine board cutting speed:
-
2.5 passes
-
Engraving speed(canvas):
-
aboved 24000mm/s
-
Accuracy:
-
338dpi
-
Pixel:
-
6266 x 10533 px
-
Vertical Carving:
-
Yes(90°)
-
laser engraving machine for cylinder:
-
granite photo laser engraving machine
-
laser engraving machine large:
-
big size laser engraving machine
Quick Details
-
Engraving Area:
-
790*460mm
-
Laser Type:
-
Diode
-
Engraving Speed:
-
24000mm/s-3000mm/s
-
Graphic Format Supported:
-
DXF, BMP, GC/SVG/JPG/JPEG/PNG/TIF
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NEJE
-
Dimension(L*W*H):
-
970x582x60mm
-
Weight (KG):
-
7 KG
-
Core Components:
-
laser module
-
Optical Power:
-
12w to 24w
-
Rotary axis expansion:
-
supported
-
Frame Material:
-
All-aluminum alloy and PC material hybrid frame
-
17mm pine board cutting speed:
-
2.5 passes
-
Engraving speed(canvas):
-
aboved 24000mm/s
-
Accuracy:
-
338dpi
-
Pixel:
-
6266 x 10533 px
-
Vertical Carving:
-
Yes(90°)
-
laser engraving machine for cylinder:
-
granite photo laser engraving machine
-
laser engraving machine large:
-
big size laser engraving machine
Related Products
Selling points:
1. Warehouse in
Netherlands,UK,Gemany,Spain,USA, Russia
2. Accept Dropshipping and Delivery in 24 hours
2. Accept Dropshipping and Delivery in 24 hours
3. Factory direct sell
4.Accept OEM/ODM orders
4.Accept OEM/ODM orders
Product Paramenters
|

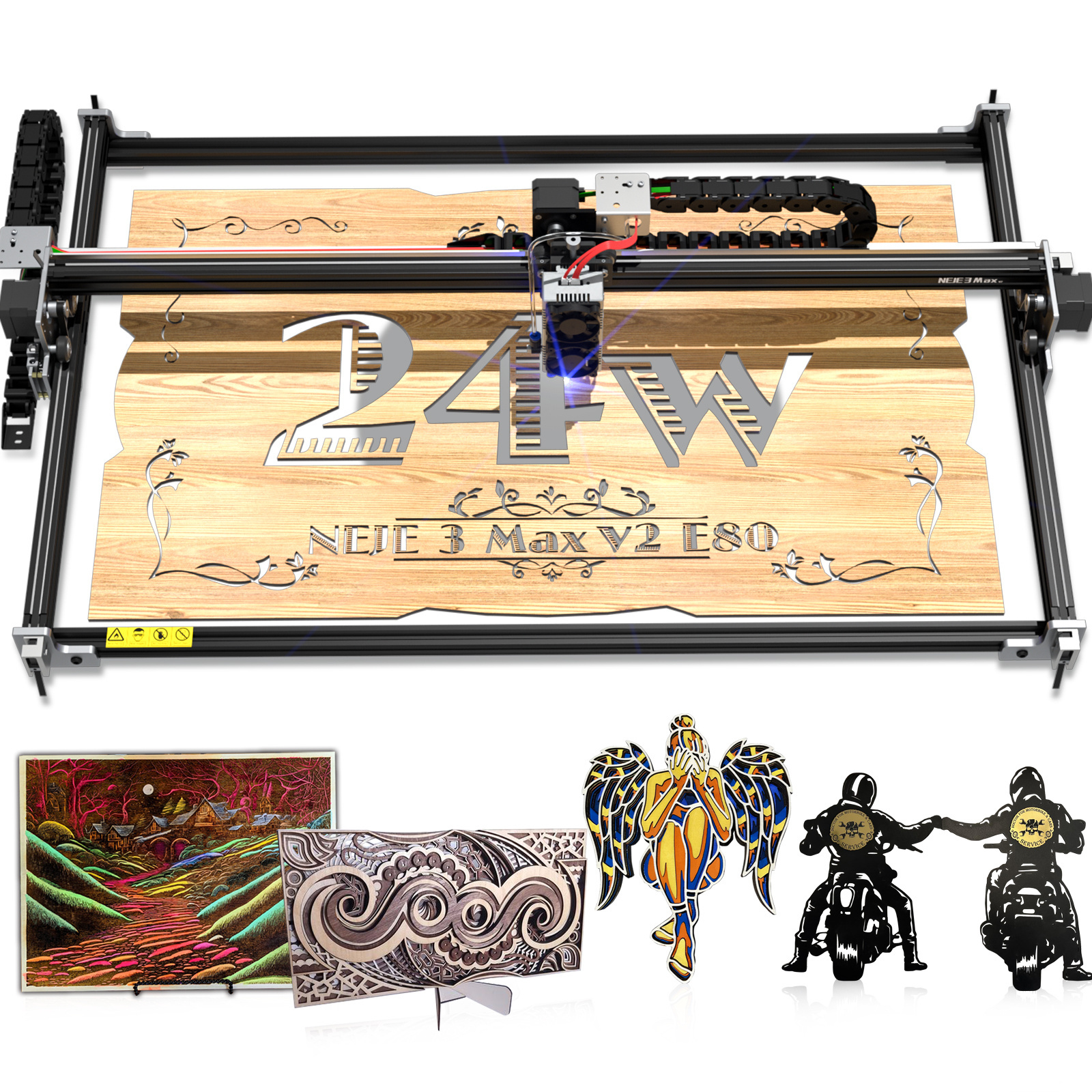

NEJE 3 Max V2: DIY Professional Diode Laser Engraver and Cuttter
|
|
|
|
Model No.
|
NEJE 3 Max V2 E80
|
|
|
Frame Size (L – W – H):
|
970x582x60mm
|
|
|
Working Area( X – Y):
|
790 x 470mm, Extends to 790x1030mm
|
|
|
X axis：
|
Industrial straight track, bottom CNC straight line correction
|
|
|
Y axis：
|
NEJE diamond CNC linear track, smooth and durable
|
|
|
Z axis：
|
Industrial linear track
|
|
|
A axis：
|
Rotary axis expansion
|
|
|
Y axis Extension:
|
Yes, NEJE will provide linear extension track, and the Y axis can be extended to 1030mm.
|
|
|
Limit Switch:
|
Build in X Y Z
|
|
|
Homing Repeat Position Accuracy:
|
0.01mm
|
|
|
Repeat Position Accuracy:
|
X Y: 0.01mm; Z: 0.001mm
|
|
|
Recommended acceleration and top speed:
|
400mm/s （NEJE Max 4 has a longer acceleration stroke, and the peak speed is faster than the ordinary 400x400mm frame.）
|
|
|
Accuracy
|
338dpi
|
|
|
Pixel
|
6266 x 10533 px
|
|
|
Vertical Carving:
|
Yes(90°)
|
|
|
Input Voltage:
|
12V or 24V, Match according to module voltage
|
|
|
Interface:
|
5.5*2.1, Max 6A
|
|
|
Compatible:
|
all 12V and 24V NEJE modules
|
|
|
M7,M8,Door Extension：
|
Yes
|
|
|
Lightburn Offline Control
|
Yes
|
|
|
Lasergrbl Offline Control:
|
Yes
|
|
|
BLE Bluetooth Function:
|
Support Bluetooth 4,Windows 10, iOS 8 and Android 4.2 and above.
|
|
|
App control：
|
Yes
|
|
|
MEMS protection：
|
Yes
|
|
|
NEJE Software OTA Upgrade:
|
Yes
|
|
|
Software:
|
NEJE Win Soft, NEJE APP, Lightburn, LaserGRBL
|
|
|
Firmware:
|
build in NEJE fireware and GRBL 1.1f(optimized)
|
|
|
Systems Support:
|
Win 7/Win 8/Win 10, Android, iOS, ipadOS, macOS
|
|
|
File Format Supports:
|
GC/SVG/DXF/JPG/JPEG/PNG/BMP/TIF/etc.
|
|
|
Design:
|
Drive the built-in control ic, judge the working state and adjust the fan work
|
|
|
Adapter Pluga:
|
5.5 2.1 port
|
|
|
Working Voltage:
|
DC 24V TTL&PWM
|
|
|
Modulation:
|
YES. Compatible with Both TTL & PWM
|
|
|
Modulation Input Interface:
|
PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
|
|
|
Warranty:
|
2 Years(If the laser module works 8 hours per day,the lifespan will be 7 years)
|
|
Products Description
Precision optical level focus adjuster
NEJE has designed an optical laboratory level Z-axis height adjuster for 3MaxV2, providing a highly portable, precise, and stable
operating experience. The Z-axis height adjuster has scale and locking functions, with a rotation of 0.7mm. You can even manually
control the focus accuracy to 0.1mm. In the process of metal carving or cutting thick materials, it can greatly improve
operational accuracy and portability, thereby improving operational efficiency.
CNC linear track
The newly upgraded 3MaxV2 framework's X and Y axis tracks are calibrated through high-precision industrial CNC master machines.
Ensure precise and balanced X and Y axes through precise CNC structure nesting. The difference between CNC straight track and
ordinary track lies in the elimination of profile extrusion deformation tolerance and improvement of smoothness, which improves
the image quality of carving and cutting; In addition, the new framework has improved the track size structure, increased the hardness of aluminum materials, and additionally designed shock absorption treatment, making the framework more stable and precise, which has greatly improved the quality of artworks.
Ensure precise and balanced X and Y axes through precise CNC structure nesting. The difference between CNC straight track and
ordinary track lies in the elimination of profile extrusion deformation tolerance and improvement of smoothness, which improves
the image quality of carving and cutting; In addition, the new framework has improved the track size structure, increased the hardness of aluminum materials, and additionally designed shock absorption treatment, making the framework more stable and precise, which has greatly improved the quality of artworks.
Adjustable damping function for X-axis and Y-axis
The newly upgraded 3MaxV2 has improved the adjustable damping function, which improves the smoothness of the X and Y direction modules and enhances the stability of repeated positioning accuracy on the X and Y axes. The repeated positioning accuracy is
0.01mm, making the image quality more stable and reliable
Belt adjuster
The NEJE team has equipped three original designed CNC precision belt tension adjusters for large-area laser engraving machines. It can easily solve the problem of image deviation in the X and Y directions, resulting in higher precision in large-scale cutting and carving, and a more perfect quality of the work
Upgraded control system
The 3MaxV2 is equipped with a stability control system based on the NEJE Master series, which has been iterated for 10 years. The new control system optimizes silence, performance, stability, portability, and functionality to the extreme. Supporting 4-axis
independent control, equipped with native drive Z-axis and expandable A-axis interface, it can be used to transform Z-axis and expand other motor functions. The new BLE stable wireless control solution replaces traditional card insertion manual control solution, and can complete wireless real-time control and offline control directly through NEJE software, LaserGRBL, and Lightburn, greatly improving efficiency and saving time. Standard Door, M7, M8 expansion interfaces can be used to expand automatic air assist, automatic smoke exhaust, automatic lighting, and automatic safety sensing stop functions. This saves
operating time and improves the ability of laser multi-layer automated processing.
independent control, equipped with native drive Z-axis and expandable A-axis interface, it can be used to transform Z-axis and expand other motor functions. The new BLE stable wireless control solution replaces traditional card insertion manual control solution, and can complete wireless real-time control and offline control directly through NEJE software, LaserGRBL, and Lightburn, greatly improving efficiency and saving time. Standard Door, M7, M8 expansion interfaces can be used to expand automatic air assist, automatic smoke exhaust, automatic lighting, and automatic safety sensing stop functions. This saves
operating time and improves the ability of laser multi-layer automated processing.
Diverse accessory support
3MaxV2 can use almost all accessories applicable to NEJE Max 4. You only need to pay attention to the matching voltage to complete the construction of a professional laser system and build a more safe and professional laser equipment. The NEJE team will also develop more features and compatible accessories for the NEJE 3MaxV2 framework to enhance user value.
Laser Module Comparison
|
Specificaton
|
A40640 （classic）
|
E40（NEW）
|
E80(NEW)
|
|
light source
|
Original diode X2
|
Original diode X2
|
Original diode X4
|
|
Focal spot size
|
0.04*0.06 zoom focus
|
0.03*0.04 fixed focus
|
0.06*0.06 fixed focus
|
|
Continuous Power
|
10-11W
|
10-11W
|
21-22W
|
|
Pulse power
|
12W
|
12W
|
24W
|
|
Max cutting thickness
|
20mm
|
10mm
|
30mm
|
|
Recommended cutting thickness
|
<8mm
|
<5mm
|
<18mm
|
|
Feature
|
A40640 has a wide range of comprehensive applications and can be widely used for carving various materials, including wood, metal,
stone, glass, and has universal cutting ability |
NEJE E40 module is suitable for a wide range of materials. Mainly skilled in fine carving and cutting, E40 has a unique
performance in grayscale carving ability and cutting details for metal materials, MDF boards, leather materials, and plywood |
NEJE E80 module excels at fast engraving and cutting thicker materials efficiently. Its performance and durability are far better
than competitors' high-power modules, and even better than 30-40W high-power modules. (For cutting thick materials or fast engraving, and for higher efficiency, choose E80) |
|
Warranty
|
2 Years
|
2 Years
|
2 Years
|
|
Stainless Steel cutting
|
No
|
Thickness:0.05 mm
|
Thickness:0.1 mm
|
|
|
|
300 mm/min
|
300 mm/min
|
NEJE 3 Max V2
is compatible with all series of NEJE functional laser modules, and has excellent fine carving or portrait grayscale effect on different materials. You can choose laser modules according to your needs.
Multifunctional Laser Engraving Machines
for wood,plastic, acylic,steel metal,
credit card,jewellery,
granite and marble
Inspirations by Laser Engraver Artists
Product packaging
NEJE 3 Max v2
A40640 packing
1x NEJE 3 Max v2 Machine
1x A40640 Laser Module
1x air Assist Kits
1x power adapter
1x USB Cable + Manual
+ Quality Card
1x Goggles
1x L-shaped Crawler Aluminum Profile
2x Drag Chain Cables
1x 12V Valve Control Kit (less than 1.5mpa)
1x12V Relay Expansion Control Kit (Extra AD or DC power Max 2500W)
1x 1 Meter Door Control Kit
1x Screw Nut Wrench Screwdriver Belt
1x Installation kit
1x Test Material kit
1x air Assist Kits
1x power adapter
1x USB Cable + Manual
+ Quality Card
1x Goggles
1x L-shaped Crawler Aluminum Profile
2x Drag Chain Cables
1x 12V Valve Control Kit (less than 1.5mpa)
1x12V Relay Expansion Control Kit (Extra AD or DC power Max 2500W)
1x 1 Meter Door Control Kit
1x Screw Nut Wrench Screwdriver Belt
1x Installation kit
1x Test Material kit
NEJE 3 Max v2 E40 packing
1x NEJE 3 Max v2 Machine
1x E40 Laser Module
1x air Assist Kits
1x power adapter
1x USB Cable + Manual
+ Quality Card
1x Goggles
1x L-shaped Crawler Aluminum Profile
2x Drag Chain Cables
1x 12V Valve Control Kit (less than 1.5mpa)
1x12V Relay Expansion Control Kit (Extra AD or DC power Max 2500W)
1x 1 Meter Door Control Kit
1x Screw Nut Wrench Screwdriver Belt
1x Installation kit
1x Test Material kit
1x air Assist Kits
1x power adapter
1x USB Cable + Manual
+ Quality Card
1x Goggles
1x L-shaped Crawler Aluminum Profile
2x Drag Chain Cables
1x 12V Valve Control Kit (less than 1.5mpa)
1x12V Relay Expansion Control Kit (Extra AD or DC power Max 2500W)
1x 1 Meter Door Control Kit
1x Screw Nut Wrench Screwdriver Belt
1x Installation kit
1x Test Material kit
NEJE 3 Max v2 E80 packing
1x NEJE 3 Max v2 Machine
1x E80 Laser Module
1x air Assist Kits
1x power adapter
1x USB Cable + Manual
+ Quality Card
1x Goggles
1x L-shaped Crawler Aluminum Profile
2x Drag Chain Cables
1x 12V Valve Control Kit (less than 1.5mpa)
1x12V Relay Expansion Control Kit (Extra AD or DC power Max 2500W)
1x 1 Meter Door Control Kit
1x Screw Nut Wrench Screwdriver Belt
1x Installation kit
1x Test Material kit
1x air Assist Kits
1x power adapter
1x USB Cable + Manual
+ Quality Card
1x Goggles
1x L-shaped Crawler Aluminum Profile
2x Drag Chain Cables
1x 12V Valve Control Kit (less than 1.5mpa)
1x12V Relay Expansion Control Kit (Extra AD or DC power Max 2500W)
1x 1 Meter Door Control Kit
1x Screw Nut Wrench Screwdriver Belt
1x Installation kit
1x Test Material kit
