gutter roll forming machine water gutter machine price rain gutter making machine factory
gutter roll forming machine water gutter machine price rain gutter making machine factory
gutter roll forming machine water gutter machine price rain gutter making machine factory
gutter roll forming machine water gutter machine price rain gutter making machine factory
gutter roll forming machine water gutter machine price rain gutter making machine factory
gutter roll forming machine water gutter machine price rain gutter making machine factory
gutter roll forming machine water gutter machine price rain gutter making machine factory
gutter roll forming machine water gutter machine price rain gutter making machine factory

gutter roll forming machine water gutter machine price rain gutter making machine factory

FOB Reference Price: Get Latest Price
≥1 Pieces
US $18999
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Rolling thinckness:
0.3-0.8mm
Place of Origin:
Hebei, China
Brand Name:
XINBO
Voltage:
380v or as customer needing
Dimension(L*W*H):
7.35*1.2*1.5m
Weight:
6500 kg
Product name:
Downspout machine
After-sales Service Provided:
Engineers Avaliable
Usage:
water pipe
Raw material:
PPGI
Cutting blade material:
Cr 12 Mov
Control system:
PLC(imported Brand)
Application:
Building Construction
Color:
Customized Color
Function:
Steel Curving Roof

Quick Details

Type:
Gutter Roll Forming Machine
Tile Type:
Steel
Production Capacity:
15 m/min
Rolling thinckness:
0.3-0.8mm
Place of Origin:
Hebei, China
Brand Name:
XINBO
Voltage:
380v or as customer needing
Dimension(L*W*H):
7.35*1.2*1.5m
Weight:
6500 kg
Product name:
Downspout machine
After-sales Service Provided:
Engineers Avaliable
Usage:
water pipe
Raw material:
PPGI
Cutting blade material:
Cr 12 Mov
Control system:
PLC(imported Brand)
Application:
Building Construction
Color:
Customized Color
Function:
Steel Curving Roof
Product Description
used round and square rank pipe downpipe cold roll forming machine

Description: automatic rain gutter pipe forming machine


Dimension:
7000(L) * 1700(W) * 1600mm(H)
Machine weight:
Approx. 4.8 T
Frame material:
300 H steel
Thickness of steel plate:
16mm
Forming axis:
diameter of 75 mm, 45 # quenched and tempered
45 # forged molding chakra:
material, hard chromium plating
Drive:
by wheel and chain

The computer automatic control, PLC of Siemens

Line speed:
650 m/h
Production rate:
2.2 T/h (for 0.4-0.5mm sheet)
Coil weight:
Max. 8 T
Sheet thickness:
0.3- 0.8 mm
Gear reducer:
5.5 KW planetary cycloidal reducer
Pump station:
4 KW
Power supply:
380V, 50Hz, 3 phase
Detailed Images

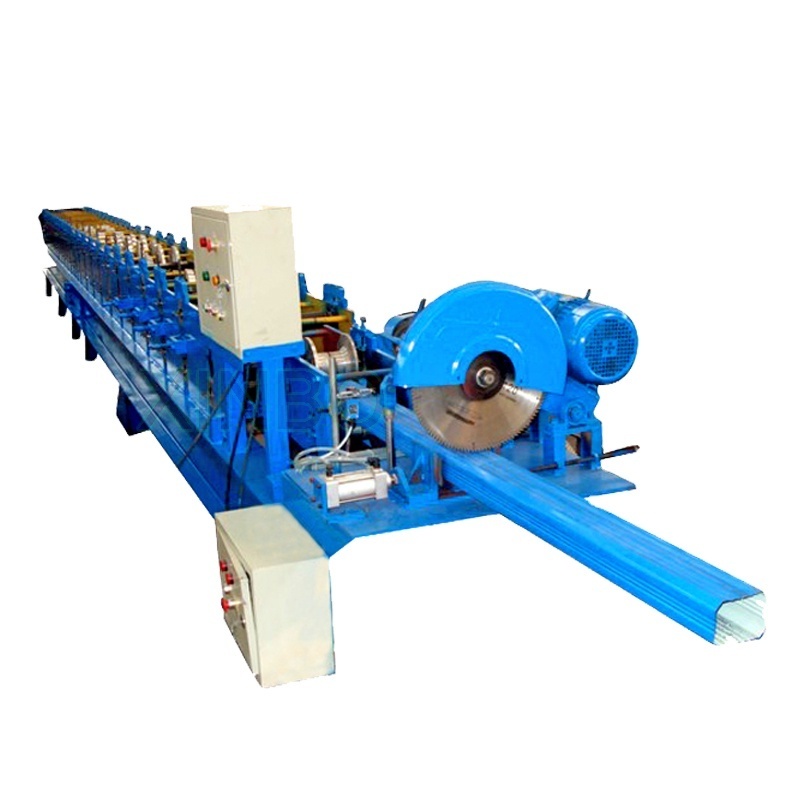

This roll forming line mainly consists of main frame, pump station, electric control panel and exit roller way etc.




uncoiler

Loading capacity:5T
Inner diameter: 470-530mm
Steel coil width: 914, 1000, 1220, 1250 mm.According to your actual drawing.
Working speed:0-15m/min, adjustable.





  • Main Frame

Material:450 H Steel
Faeature:more table ,no shaking








Forming Rollers
Material:High grade 45# steel
Roller stations:25-26 stations.
According to your actual drawing



control cabinet
Suitable power: 380V, 50Hz, 3phase or according to your need.
Feature: The whole process is automatically controlled by the computer.
In this way, you can ensure the accuracy and easy work.
