Quick Details
-
Dimension(L*W*H):
-
780x240x100cm
-
Weight:
-
10000 KG
-
Marketing Type:
-
New Product 2022
-
Drilling Diameter:
-
90mm, 115mm, 130mm
-
Drilling Depth:
-
Max.21m
-
Mobility:
-
crawler
-
New design:
-
Rotary Drilling
-
New features:
-
Sample Available
-
New technology:
-
Video
-
New products:
-
Crawler Mounted
-
New manufacturing:
-
High Efficiency
-
New process:
-
For Hard Rock
-
Air-end warranty:
-
1.5 years
-
Diesel Engine warranty:
-
1 year
-
Engine Power:
-
Cummins158KW
-
Featured Product:
-
Drilling Rig
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
APCOM
-
Voltage:
-
No need
-
Dimension(L*W*H):
-
780x240x100cm
-
Weight:
-
10000 KG
-
Marketing Type:
-
New Product 2022
-
Drilling Diameter:
-
90mm, 115mm, 130mm
-
Drilling Depth:
-
Max.21m
-
Mobility:
-
crawler
-
New design:
-
Rotary Drilling
-
New features:
-
Sample Available
-
New technology:
-
Video
-
New products:
-
Crawler Mounted
-
New manufacturing:
-
High Efficiency
-
New process:
-
For Hard Rock
-
Air-end warranty:
-
1.5 years
-
Diesel Engine warranty:
-
1 year
-
Engine Power:
-
Cummins158KW
-
Featured Product:
-
Drilling Rig
Superstar V3A
Economy, high current price ratio

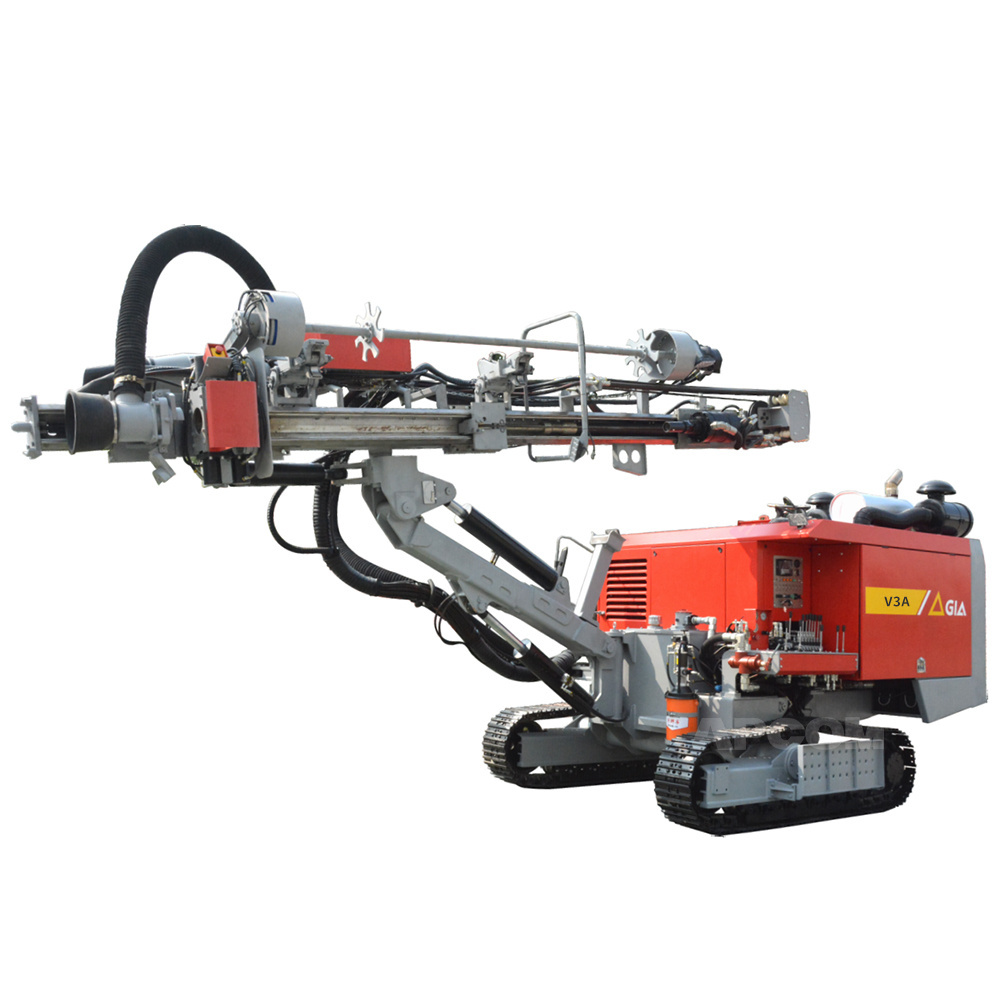

V3A Integrated Open-air Down The Hole Drill is a Blasting Drilling Rig With the Screw Compression.
|
V3A Surface Drilling Rig
Automatic Rod Change 6+1
|
|
|
|
|
||||
|
Drilling range
|
|
|
Screw Air Compressor
|
|
||||
|
Impactor
|
3.5 or 4 inches
|
|
Air Flow
|
13.5 m3/min
|
||||
|
Borehole diameter
|
90-130mm
|
|
Working Pressure
|
16bar
|
||||
|
Drilling depth
|
21m
|
|
Air-end Brand
|
Hanbell
|
||||
|
Drill pipe specification
|
76*3m
|
|
Air-end Warranty
|
2 years
|
||||
|
Diesel Engine
|
|
Walking system
|
|
|
||||
|
Diesel Engine Brand
|
Cummins
|
|
Walk low speed
|
2 km/h
|
||||
|
Diesel Engine Model
|
QSB5.9-C210-30
|
|
Walk fsat speed
|
3 km/h
|
||||
|
Rated power
|
154 KW
|
|
Climbing ability
|
25°
|
||||
|
Speed
|
2200 r/min
|
|
Ground clearance
|
350 mm
|
||||
|
Swivel head
|
|
Propulsion beam
|
|
|
||||
|
Speed 100 r/min
|
torque 2000 N.m
|
|
Propulsion stroke
|
3700 mm
|
||||
|
Overall Dimension (L×W×H)= 7800x2400x2900 mm Machine Weight 10000 kg
|
|
|
|
|
||||
1.Automatic Rod Change 6+1
3.Cummins Engine
2.Adhering to Atlas Copco Epiroc Technology
3.Cummins Engine
4.Liquid Crystal Display
5.When Walking or Working, the operator can stand on the pedal.
