Quick Details
-
Processor Core:
-
Dual Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ultron
-
Model Number:
-
D3-1th ~ 4th gen
-
Operating System:
-
Win7/Win10/Linux
-
Chipset Type:
-
HM55/HM65/HM76/HM86
-
Video Memory:
-
Base on the RAM
-
Product Name:
-
Mini PC Computer
-
CPU:
-
In-tel Core i3-380M,3M Cache, 2.53 GHz,2 Cores 4 Threads,
-
Display port:
-
HD-MI*1 + VGA*1 Dual Display
-
Size:
-
194*185*40mm
-
Heat dissipation system:
-
Customized intelligent control fan
-
Material:
-
Metal chassis
-
Operation System:
-
Win7 Win10/Linux
-
Extension:
-
1* m-pcie slot for wifi module
-
Power Supply:
-
DC 12V
-
LAN Port:
-
RJ45*1,Realtek 8111X Gigabit NIC
Quick Details
-
Use:
-
For Business
-
Hard Drive Type:
-
SSD
-
Video Memory Type:
-
With the main memory
-
Processor Core:
-
Dual Core
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ultron
-
Model Number:
-
D3-1th ~ 4th gen
-
Operating System:
-
Win7/Win10/Linux
-
Chipset Type:
-
HM55/HM65/HM76/HM86
-
Video Memory:
-
Base on the RAM
-
Product Name:
-
Mini PC Computer
-
CPU:
-
In-tel Core i3-380M,3M Cache, 2.53 GHz,2 Cores 4 Threads,
-
Display port:
-
HD-MI*1 + VGA*1 Dual Display
-
Size:
-
194*185*40mm
-
Heat dissipation system:
-
Customized intelligent control fan
-
Material:
-
Metal chassis
-
Operation System:
-
Win7 Win10/Linux
-
Extension:
-
1* m-pcie slot for wifi module
-
Power Supply:
-
DC 12V
-
LAN Port:
-
RJ45*1,Realtek 8111X Gigabit NIC
①
In-tel Core i3-380M Processor,3M Cache, 2.53 GHz,2 Cores 4 Threads,TDP 35W
Intel Core i5-2520M Processor, 3M Cache, up to 3.20 GHz,2 Cores 4 Threads,TDP 35W
Intel Core i7-2670QM Processor, 6M Cache, up to 3.10 GHz, 4 Cores 8 Threads,TDP 45W
We have Intel Core up to 13th Gen CPU mini pc for optional, also AMD R5 R7,
Please contact us for more.
Intel Core i7-2670QM Processor, 6M Cache, up to 3.10 GHz, 4 Cores 8 Threads,TDP 45W
②1*DDR3L RAM, 2GB 4GB 8GB RAM,
Support
MSata SSD + 2.5" HDD
,32GB, 64GB,128GB,256GB,512GB SSD,etc.
③HD-MI*1 + VGA*1 Dual Display
④WIFI Module optional
⑤Customized intelligent control fan
⑥OS: Win7 Win10/Linux,etc
③HD-MI*1 + VGA*1 Dual Display
④WIFI Module optional
⑤Customized intelligent control fan
⑥OS: Win7 Win10/Linux,etc
Details Images
Intel Core i3 i5 i7 CPU+DDR3 RAM+mSATA SSD
We can provide a wide variety of mini pc solutions for different industries and applications. Please contact us with your requirements, we'll recommend you the configuration that suits you, at competitive prices.
WIFI Module Optional
Optional Built in WIFI. Easy to connect your network.

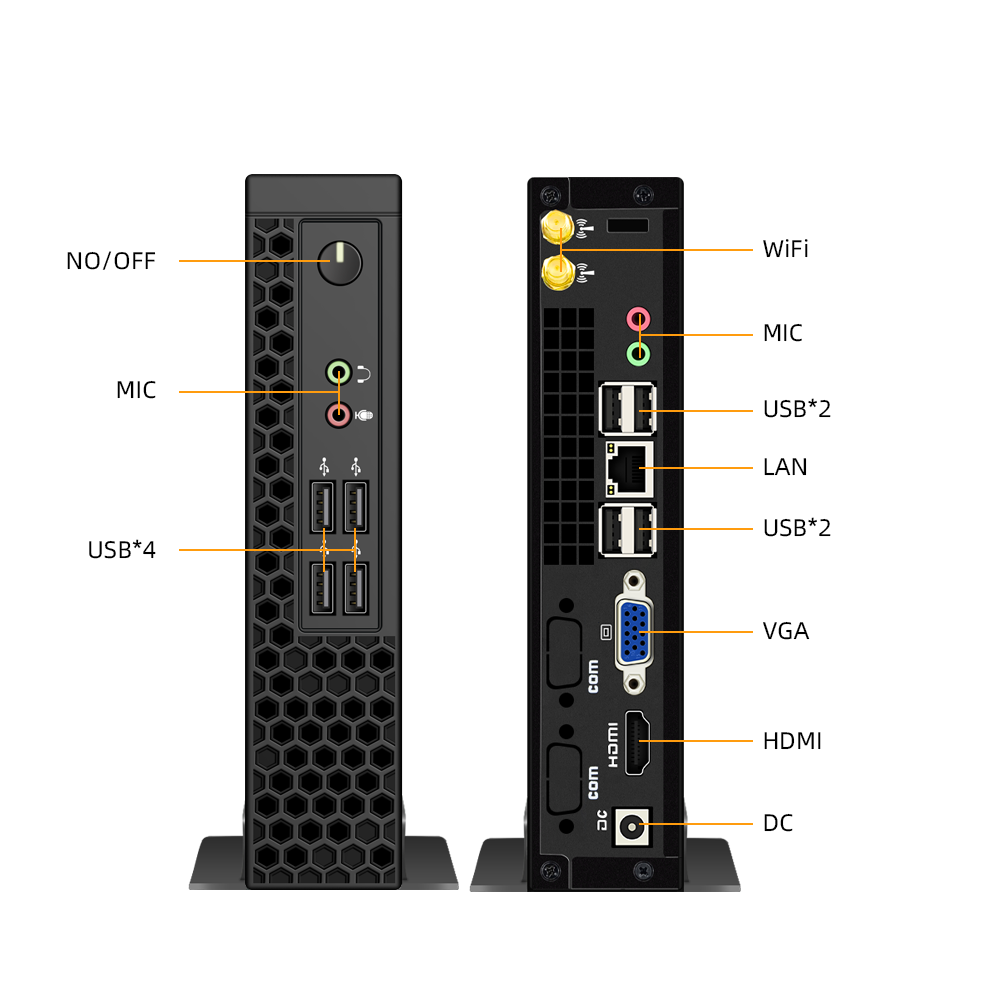

Rich Interfaces
Efficient Heat Dissipation
The customized intelligent control fan and all-metal chassis are conducive to help dissipate heat for the motherboard, and the vents on both sides of the case form the flow of wind, making CPU cooling more efficient.
100% testing before shipment
Ensuring that the products received by customers have excellent quality is our first priority.
Support VESA Mount
Save your Space. Please let us know if you need VESA mount.
Product Specification
|
Model Number
|
D3-1th~4th gen
|
|
Processor
|
In-tel Core i3-380M Processor,3M Cache, 2.53 GHz,2 Cores 4 Threads,TDP 35W
In-tel Core i5-560M Processor, 3M Cache, 2.66 GHz, 2 Cores 4 Threads,TDP 35W Intel Core i3-2350M Processor, 3M Cache, 2.30 GHz,2 Cores 4 Threads,TDP 35W Intel Core i5-2520M Processor, 3M Cache, up to 3.20 GHz,2 Cores 4 Threads,TDP 35W Intel Core i7-2640M Processor, 4M Cache, up to 3.50 GHz, 2 Cores 4 Threads,TDP 35W Intel Core i3-3110M Processor,3M Cache, 2.40 GHz, 2 Cores 4 Threads,TDP 35W Intel Core i3-3120M Processor, 3M Cache, 2.50 GHz, 2 Cores 4 Threads,TDP 35W Intel Core i5-3320M Processor,3M Cache, up to 3.30 GHz, 2 Cores 4 Threads,TDP 35W Intel Core i7-3520M Processor, 4M Cache, up to 3.60 GHz, 2 Cores 4 Threads,TDP 35W Intel Core i3-4100M Processor, 3M Cache, 2.50 GHz, 2 Cores 4 Threads,TDP 37W Intel Core i5-4310M Processor, 3M Cache, up to 3.40 GHz, 2 Cores 4 Threads,TDP 37W Intel Core i7-4610M Processor, 4M Cache, up to 3.70 GHz, 2 Cores 4 Threads,TDP 37W |
|
Chipset
|
HM55/HM65/HM76/HM86
|
|
Graphics card
|
In-tel HD Graphics /3000/4000
|
|
Memory
|
Types:1*DDR3L
Capacity：2GB 4GB 8GB RAM, 1th gen max to 4GB, others max to 8GB |
|
Hard Disk
|
Types：MSata SSD + HDD
Capacity：32GB 64GB 128GB 256GB 512GB SSD,etc.Please Contact US if you need HDD. |
|
Display
|
HD-MI*1 + VGA*1 Dual Display
|
|
LAN Port
|
RJ45*1,Realtek 8111X Gigabit NIC
|
|
Audio
|
Microphone input*1 /3.5mm earphone output*1(Realtek HD sound card)
|
|
I/O Interface
|
USB * 8
MIC*1 SPK*1 LAN*1 VGA*1 HD-MI*1 Power Switch*1 |
|
Extension
|
1* Half Height Mini PCIe slot for WiFi Module
|
|
Heat dissipation system
|
Customized intelligent control fan
|
|
Operating System
|
Win7 Win10/Linux
We install a win10 trial version for you by default. If you need some official version system, please contact us. For Linux OS, please provide the version you need, and we'll free install it for you. |
|
Materail
|
Metal chassis
|
|
VESA Mount or Bracket
|
Supported, Let us know if you need it.
|
|
Power Supply
|
DC 12V 5A/4A
|
|
Working Temperature
|
-0°C ~50°C
|
|
Working Humidity
|
30% ~ 98% RH
|
|
Dimension
|
185*194*40mm
|
|
OEM/ODM
|
Yes, please provide your specific requirement, including CPU, Port, Motherboard, Logo, color, system, package, etc. anything.
|
|
Warranty
|
1 year
|
Our Services
What Can We Do for Your Unique Requirement?
Basic Customization
: CPU, RAM, SSD, HDD,
Operating System
, Functions of Mini PC Setting, etc.
Logo C
ustomization
:
Free Booting Logo, Free Sticker Logo, Laser Logo, Silk Screen Printing Logo, etc.
More C
ustomization
: Customized Interfaces,
ITX Motherboard Design,
Mini PC Case Design,
Customized Packages, etc.
Kindly inquiry us for further information!
