Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
UNITE
-
Model Number:
-
U-256TPRO tire changer / U-689 wheel balancer
-
Warranty:
-
12 Months
-
turntable for tire changer(tire changer):
-
28"
-
External clamping(tire changer):
-
12~26"
-
Internal clamping(tire changer):
-
15~28"
-
Rim width(wheel balancer):
-
1.5~20"
-
Rim diameter:
-
10~24"
Quick Details
-
Motor Power:
-
0.75/1.1kw
-
Operating Pressure:
-
8-10 Bar
-
Power Supply:
-
110V/220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
UNITE
-
Model Number:
-
U-256TPRO tire changer / U-689 wheel balancer
-
Warranty:
-
12 Months
-
turntable for tire changer(tire changer):
-
28"
-
External clamping(tire changer):
-
12~26"
-
Internal clamping(tire changer):
-
15~28"
-
Rim width(wheel balancer):
-
1.5~20"
-
Rim diameter:
-
10~24"
Product Information
Product Description

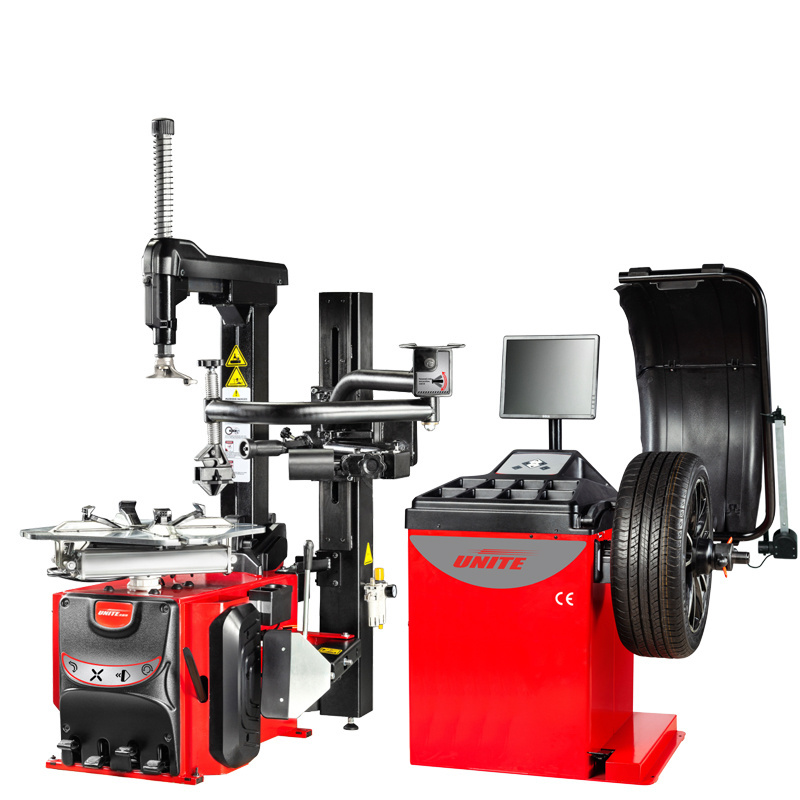

U-256PRO AUTOMATIC MOUNT/DEMOUNT HEAD TILTING TYPE TYRE CHANGER
The U-256PRO is a tilting type tyre changer with a 28" turntable, 12-26" external clamping, and 15-28" internal clamping. It
features an independent help arm system with a multi-functional design for bead pressing, lifting, loosening, and wheel
positioning. The tyre changer also has a plastic protector with triple protection to avoid scratches on the steel ring.
Features:
1.28" Turntable
2.12~26" External clamping
3.15~28" Internal clamping
4. Independent Help Arm System
The help arm is rich in functions and easy to operate, providing simultaneously 3-point bead pressing assistance.
The assist arm features a multi-function design, providing extra assistance of wheel positioning, bead pressing, bead lifting and
loosening, and other functions.
* roller-bead pressing
* roller-bead lifting
* 360° rotatable combination tyre pressing head-bead pressing
* 360° rotatable combination tyre pressing head - quick wheel clamping or off/on from the turntable
5. Plastic Protector
Triple protection, avoiding scratches on the steel ring
* plastic mount/demount head protector;
* plastic jaw protector;
* bead breaker shovel protector.
features an independent help arm system with a multi-functional design for bead pressing, lifting, loosening, and wheel
positioning. The tyre changer also has a plastic protector with triple protection to avoid scratches on the steel ring.
Features:
1.28" Turntable
2.12~26" External clamping
3.15~28" Internal clamping
4. Independent Help Arm System
The help arm is rich in functions and easy to operate, providing simultaneously 3-point bead pressing assistance.
The assist arm features a multi-function design, providing extra assistance of wheel positioning, bead pressing, bead lifting and
loosening, and other functions.
* roller-bead pressing
* roller-bead lifting
* 360° rotatable combination tyre pressing head-bead pressing
* 360° rotatable combination tyre pressing head - quick wheel clamping or off/on from the turntable
5. Plastic Protector
Triple protection, avoiding scratches on the steel ring
* plastic mount/demount head protector;
* plastic jaw protector;
* bead breaker shovel protector.
U-689 LASER WHEEL BALANCER
1.ELECTROMAGNETIC BRAKE
The electromagnetic brake functioncan automatically position the innerand outer unbalanced position.
2.AUTOMATIC POSITIONING OF UNBALANCE POINTS
The machine comes withan automaticpositioning feature that detects theunbalanced pointeliminating the needformanual hand-spinning of the tyre.
3.LASER POINTER
Point outthe unbalancingplace with laser automatically.
4.LED LIGHTING (Optional)
Equipped LED toilluminate the operating area.
5.AUTOMATIC MEASUREMENT
-Automatic distanceand wheeldiametermeasuring,allowingfasterdata input.
-The tracking stickingbalancing mode isparticularlysuitable forhigh-class wheelusesstickon weights only.
-Automatic widthmeasuring scale.
6.3D ANIMATION INTERFACE
-New patented software system.
-Easy to read balancing modes with innovative dynamic indicator light allows accurate and convenient operation.
-Easy-to-use button design with quick and understandable symbols to increase operation speec.
-Significantly improved wheel balancing accuracy.
7.MULTI-LANGUAGE SUPPORT
Currently supports 20 languages and customization in other languagesis accepted.
Product Paramenters
|
Model
|
U-689 tire balancer
|
|
Power supply
|
220V/380V 1PH
|
|
Motor power
|
0.24kW
|
|
Balancing speed
|
200r.p.m
|
|
Measuring time
|
8s
|
|
Balancingaccuracy
|
土lg
|
|
Product
|
U-256TPRO Fully-automatic tilt back tower
|
|
Product Code
|
U-256TPRO
|
|
External clamping
|
12~26"
|
|
Internal clamping
|
15~28"
|
|
N/G weight
|
285/330 kg (628/728 lbs)
|
|
Package dimension
|
1130*900*950mm (3.7*3.0*3.1ft)
|
|
Air supply pressure
|
8-10bar (116-145 psi)
|
|
Optional power supply
|
110V 1PH / 220V (1/3PH) / 380V 3PH
|
|
Noise Level
|
≤75 dB
|
