Quick Details
-
Core Components:
-
/
-
Weight (KG):
-
1400 KG
-
Name:
-
Wood Pallet Notching Machine
-
Working length:
-
800-1500mm
-
Wood thickness:
-
20-50mm
-
Wood height:
-
80-120mm
-
Notching depth:
-
Max. 65mm adjustable
-
Notching width:
-
Max. 228.6mm adjustable
-
Notching speed:
-
1200-1800pc/h
-
Machine dimension:
-
2450*1600*1550mm
-
Weight:
-
1400kg
-
Control system:
-
Siemens PLC
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Saifan
-
Machine Type:
-
Wood Pallet Notcher
-
Core Components:
-
/
-
Weight (KG):
-
1400 KG
-
Name:
-
Wood Pallet Notching Machine
-
Working length:
-
800-1500mm
-
Wood thickness:
-
20-50mm
-
Wood height:
-
80-120mm
-
Notching depth:
-
Max. 65mm adjustable
-
Notching width:
-
Max. 228.6mm adjustable
-
Notching speed:
-
1200-1800pc/h
-
Machine dimension:
-
2450*1600*1550mm
-
Weight:
-
1400kg
-
Control system:
-
Siemens PLC
Product Description

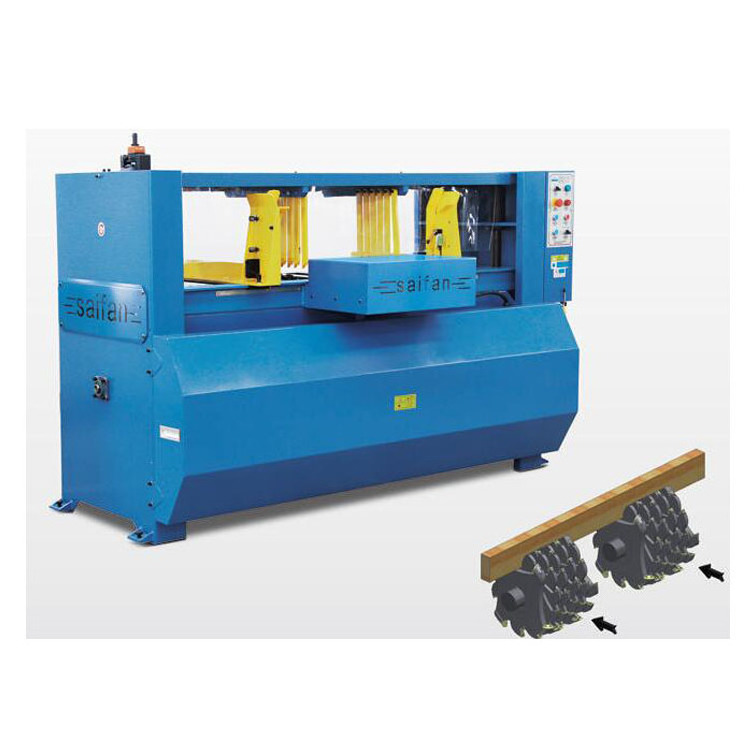

Automatic double head notching machine for wooden pallets.
Heavy duty and industrial model, design for longlife and reliable stable usage.
Heavy duty and industrial model, design for longlife and reliable stable usage.
|
Operator needed
|
1
|
|
Power
|
Cutter motor, 2*15kw=30kw Feeding motor, 0.75kw
|
|
|
Width adjustment motor,0.75kw Total power, 31.5kw
|
|
Voltage
|
380v 50hz 3phase
|
|
Wood length
|
800-1500mm
|
|
Wood thickness
|
20-50mm
|
|
Wood height
|
80-120mm
|
|
Notching depth
|
Max. 65mm adjustable
|
|
Notching width
|
Max. 228.6mm adjustable
|
|
Number of cutting blades
|
2pc side +14pc middle
|
|
Notching speed
|
1200-1800pc/h
|
|
Tolerance
|
≤1mm
|
|
Machine dimension L*W*H
|
2450*1600*1550mm
|
|
Net Weight
|
1400kg
|
|
Control system
|
Siemens PLC
|
|
Exhaust duct
|
2pc diameter 150mm
|
|
Cutter type
|
Indexable
|
|
Cutting arc
|
25.4mm
|
Detailed Images
