Quick Details
-
Power:
-
120w
-
Dimension(L*W*H):
-
930*560*1910mm
-
Weight:
-
107 KG
-
Product name:
-

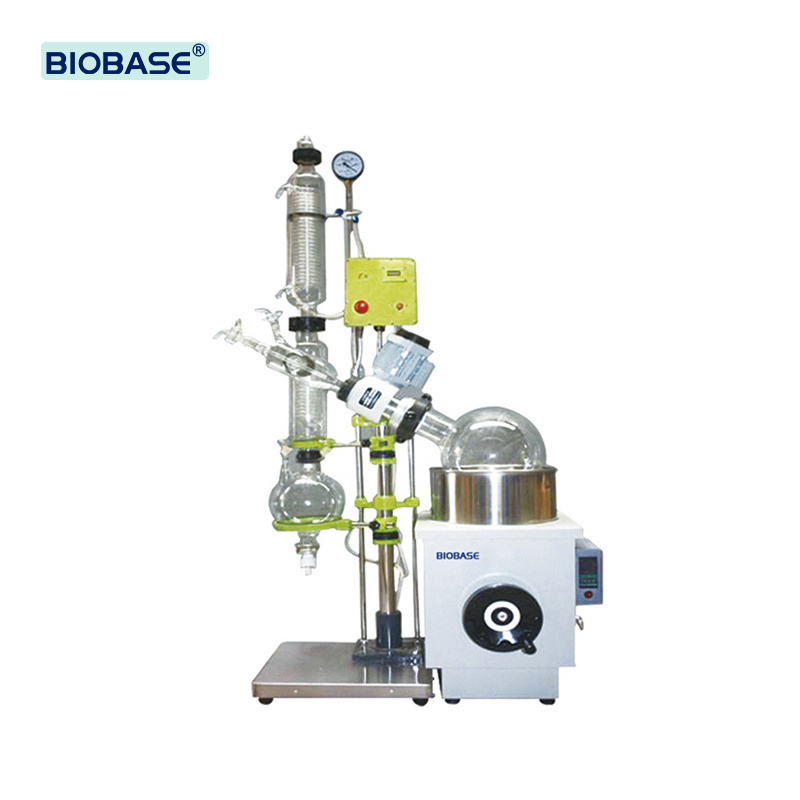

Rotary Evaporator
-
Rotary Bottle:
-
10L flange
-
Charging Valve:
-
34# (standard size)
-
Collecting Bottle:
-
5L
-
Rotating Speed:
-
0~120 rpm
-
Vacuum:
-
0.098Mpa
-
Temp. Range:
-
RT~180°C
-
Temp. Accuracy:
-
±1°C
-
Rotating Power:
-
120W
-
Shelf Material:
-
Stainless steel
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Voltage:
-
220v
-
Power:
-
120w
-
Dimension(L*W*H):
-
930*560*1910mm
-
Weight:
-
107 KG
-
Product name:
-
Rotary Evaporator
-
Rotary Bottle:
-
10L flange
-
Charging Valve:
-
34# (standard size)
-
Collecting Bottle:
-
5L
-
Rotating Speed:
-
0~120 rpm
-
Vacuum:
-
0.098Mpa
-
Temp. Range:
-
RT~180°C
-
Temp. Accuracy:
-
±1°C
-
Rotating Power:
-
120W
-
Shelf Material:
-
Stainless steel
Features
* Electronic stepless speed control.
* LED display
* Optional explosion-proof function.(eg. RE-301, RE-501, RE-1002, RE-3002, RE-5003)
Products Parameters
|
Model
|
RE-201D
|
RE-301
|
RE-501
|
RE-1002
|
RE-2002
|
RE-5003
|
|||||
|
Rotary Bottle
|
1L 24#(standard
mouth) |
3 L (flangeφ50)
|
5L (flangeφ50)
|
10 L (flange
φ95) |
20L(flange
φ95) |
50L (flange
φ125) |
|||||
|
Collecting Bottle
|
1L 35#( ball mill mouth)
|
2 L 35#(ball mill mouth)
|
3L 35# (ball mill mouth)
|
5L (flange φ60-50)
|
10L (flange φ60-50)
|
20L (flange φ60-50)
|
|||||
|
Condenser
|
Vertical φ85*430mm,35#
( ball mill mouth) |
Vertical
φ100*530mm |
Vertical
φ100*530mm |
Vertical three
backflowφ120*620mm(main), φ135*475mm (SUB) |
Vertical three
backflowφ130*700mm(main), φ160*530mm (SUB) |
Vertical three
backflowφ160*835mm(main), φ160*530mm (SUB) |
|||||
|
Charging Valve
|
19#(standard size）
|
|
|
34#(standard size）
|
|
40#(standard size）
|
|||||
|
Rotary Speed
|
0-120rpm
|
|
|
0-120 rpm
|
|
|
|||||
|
Vacuum
|
0.098 Mpa
|
|
|
0.095 Mpa
|
|
|
|||||
|
Temp. Range
|
RT~180℃
|
|
|
|
|
|
|||||
|
Temp.Accuracy
|
±1℃
|
|
|
|
|
|
|||||
|
Stroke Height
|
200mm
|
|
|
180mm
|
|
|
|||||
|
Rotary Power
|
40W
|
40W
|
|
120W
|
|
180W
|
|||||
|
Heating Power
|
1KW
|
2KW
|
|
3KW
|
5KW
|
8KW
|
|||||
|
Shelf Material
|
Stainless steel
|
|
|
Coating anticorrosive
|
|
|
|||||
|
Chamber Material
|
SS 245*140mm
|
SS 265*160mm
|
SS 280*170mm
|
SS 350*220mm
|
SS 450*260mm
|
SS 550*320mm
|
|||||
|
Plate size
|
280*330mm
|
350*330mm
|
|
534*504mm
|
474*474mm
|
550*320mm
|
|||||
|
Power Supply
|
AC220/110V±10%,50/60Hz
|
|
|
|
AC220V±10%,50/60Hz
|
AC380V/220V±10%,50Hz
|
|||||
|
External Size(mm)
|
700*330*785
|
740*330*970
|
760*330*1030
|
930*560*1910
|
1000*600*2130
|
1330*730*2340
|
|||||
|
Package Size(mm)
|
600*460*470
|
990*620*470
|
|
1320*780*755
|
1350*670*720;
680*680*790 |
1420*820*720;
830*730*910; |
|||||
|
Gross Weight
|
21 Kg
|
40Kg
|
42Kg
|
107 Kg
|
136 Kg
|
186Kg
|
|||||
|
Standard
Accessory |
1L Rotary bottle*1,
1L Collecting bottle*1 |
3L Rotary
bottle*1, 2L Collecting bottle*1 |
5L Rotary bottle*1,
3L Collecting bottle*1, |
10L rotary
bottle*1, 5L collecting bottle *1 |
20L rotary
bottle*1, 10L collecting bottle *1 |
50Lrotary
bottle*1, 20L collecting bottle *1 |
|||||
|
Optional Accessory
|
Transparent bath cover, Explosion-proof transducer
|
Explosion-proof transducer, Explosion-proof motor EX40W
|
|
Explosion-proof transducer, Double collection bottle, Auto-lifting, Explosion-proof motor EX120W
|
|
|
|||||
|
|
Vacuum pump, Recirculating chiller
|
|
|
|
|
|
|||||
