Quick Details
-
Brand Name:
-
HUGO
-
Fork Length:
-
1200mm, 1200mm
-
Fork Width:
-
550mm, 550/685mm
-
Overall Dimensions:
-
1200*550
-
Weight (KG):
-
50 kg
-
Product name:
-
Hand Pallet Jack
-
Material:
-
Stainless steel
-
Max. Lifting Height:
-
200mm
-
Certification:
-
ISO9001
-
Color:
-
Yellow red or others
-
Wheel:
-
Nylon or PU
-
Weight:
-
69-122 kg
Quick Details
-
Min. Lifting Height:
-
80mm, 80MM
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HUGO
-
Fork Length:
-
1200mm, 1200mm
-
Fork Width:
-
550mm, 550/685mm
-
Overall Dimensions:
-
1200*550
-
Weight (KG):
-
50 kg
-
Product name:
-
Hand Pallet Jack
-
Material:
-
Stainless steel
-
Max. Lifting Height:
-
200mm
-
Certification:
-
ISO9001
-
Color:
-
Yellow red or others
-
Wheel:
-
Nylon or PU
-
Weight:
-
69-122 kg
Product Description

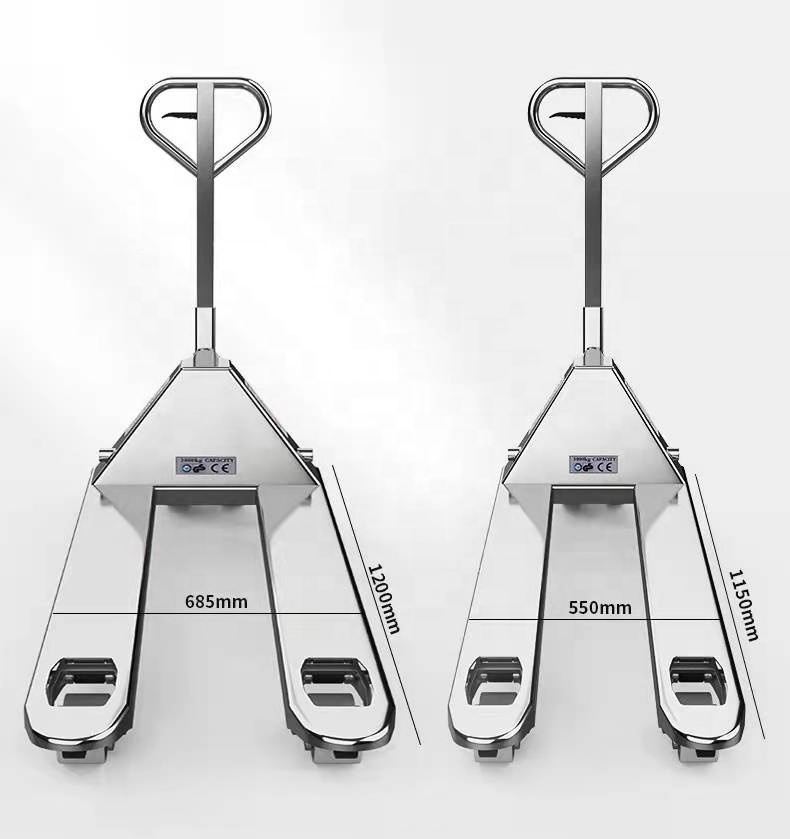

High Quality Customized Hydraulic Manual Pallet Truck Stainless Steel Hand Pallet Jack With CE
Specification
|
Capacity
|
Minimum height (mm)
|
Max lift height (mm)
|
Length(mm)
|
Width(mm)
|
Wheel type
|
Load wheel size(mm)
|
Steer wheel size(mm)
|
|
2
|
80
|
200
|
1150
|
550
|
Rubber/PU/Nylon
|
70*80
|
180*50
|
|
2
|
80
|
200
|
1220
|
685
|
Rubber/PU/Nylon
|
70*80
|
180*50
|
|
2.5
|
80
|
200
|
1150
|
550
|
Rubber/PU/Nylon
|
70*80
|
180*50
|
|
2.5
|
80
|
200
|
1220
|
685
|
Rubber/PU/Nylon
|
70*80
|
180*50
|
|
3
|
80
|
200
|
1150
|
550
|
Rubber/PU/Nylon
|
70*80
|
180*50
|
|
3
|
80
|
200
|
1220
|
685
|
Rubber/PU/Nylon
|
70*80
|
180*50
|
|
5
|
80
|
200
|
1220
|
685
|
Rubber/PU/Nylon
|
70*80
|
180*50
|
Product Details
|
1.Good sealing performance:Overall seal, avoid leaking 2.Each piston rod with chromium plating treatment 3.Overflow valve has overload protection 4.Whole overflow valve in view,so can be fixed easy Notice:The min lifting height is 85mm |
|
Reduce the whole pallet truck costs, affordable, with the following advantages: 1. Oil pump with manual slow down control valve, high safety 2. Three adjustable handle for easy operation 3. In the front of fork is cambered, easy to insert the pallet 4. C-type fork can support heavy load, durable 5. The fork can be manually adjusted to control the minimum height of the fork Notice:The min lifting height is 75mm |
The difference between the two:
AC oil pump is a pump, one-time casting molding.
DF oil pump is split pump is separate welded, the advantages of an integral pump is raised after loading effort,
The valve core is an integral whole, and the valve core has the advantages of long service life, little trouble and labor saving.
DF oil pump is split pump is separate welded, the advantages of an integral pump is raised after loading effort,
The valve core is an integral whole, and the valve core has the advantages of long service life, little trouble and labor saving.
PU Wheel
PU wheel (also called polyurethane wheel) Wear resistance, no indentation, mute, shock absorption, It is suitable for marble, paint and epoxy floor.
Nylon Wheel
The nylon wheel has low turning power, Light pulling, stable chemical properties and so on, Suitable for the use of cement ground
Our Advantages
Why Choose Us
Recommend Products
Packing & Delivery
6 sets/pallet in general
OEM Service
Customized Material
Customized Color
FAQ
1. Are you factory?
Yes, We are factory with more than 30 years of experience for manufacturing and exporting.
2. Do you have certificate?
Yes, we get CE certificate from TUV.
3. Can i get a samples?
Yes, we can provide samples for you to test our quality.
4. Can i customized my own LOGO on the product?
Yes, We provide OEM service.
5. What is your guarantee?
One-year after service.
