Quick Details
-
Application:
-
Workshop
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DragonPower
-
Model Number:
-
LK-BWT
-
Highest Working Temperature:
-
1100℃
-
Certificate:
-
REACH
-
Structure:
-
Three layers
-
Dimension:
-
Customized
-
Thermal conductivity:
-
25%-45%
-
warranty:
-
1 year
-
Package:
-
Export paper box or wooden case
-
Function:
-
Thermal Preservation
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Workshop
-
Design Style:
-
Modern
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DragonPower
-
Model Number:
-
LK-BWT
-
Highest Working Temperature:
-
1100℃
-
Certificate:
-
REACH
-
Structure:
-
Three layers
-
Dimension:
-
Customized
-
Thermal conductivity:
-
25%-45%
-
warranty:
-
1 year
-
Package:
-
Export paper box or wooden case
-
Function:
-
Thermal Preservation

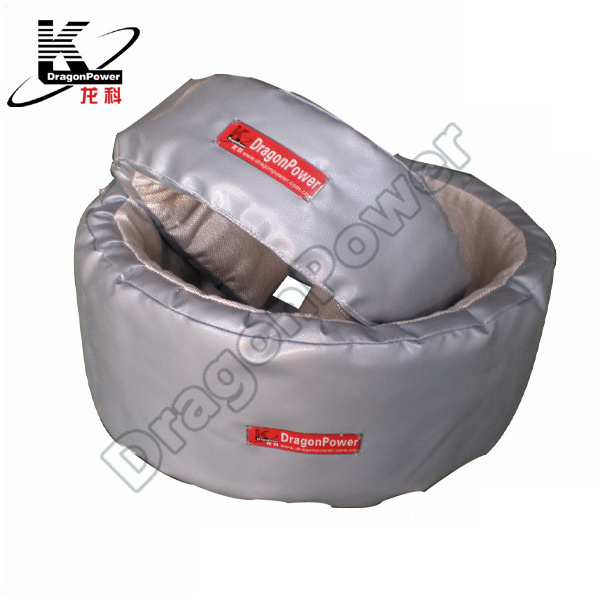

Industrial Thermal Insulation cover Blankets For Heater/Valve/Pipe/Tank/Turbine/Dryer/Elbow/Pump/Flange/Mould/Engine
It is mainly applied for barrel heaters on injection molding machine,molds&dies on injection/extrusion machines,as well as valves and pipes. It can also be used in heat preservation and insulation on pipes,elbows,flanges,heat exchangers,dryers and the exhaust pipe of engines. It is made of ceramic fiber and high temperature resistance silicon cloth. The jacket comprises three-layers-inner,insulation and protective layers(Grade A Incombustible material,GB8642-2006,Germany Standard DIN4102,Grade A1),
The working temperature can be up to 1100℃.It is excellent in insulation and cooling down the working environment.
Industrial Thermal Insulation cover Blankets For Heater/Valve/Pipe/Tank/Turbine/Dryer/Elbow/Pump/Flange/Mould/Engine
1)Barrel heater on injection molding machine, extruder etc.
2)Hoppers and dryers
3)Molds and dies
4) Flange, Pipe, Valve
5) Exhaust Elbow
6) Heater exchanger
7)Exhaust pipe of engine
8)Turbocharger
9)Chemical and food drum & IBC tanks
10)Any other applications needed to reduce heat loss
1. Save 25%-45% energy in general
2.The surface temperature can be lowered to 50℃, and thus safe to touch by hands
3.We support customized design to ensure 100% fit your application
4.Easy to install by buckles,by aligning the wiring terminals and thermocouple holes
5.Improve the Qualit of plastic products due to stable temperatue.
6. Short investment return period (with 25% energy-saving rate,it takes 4-5 months to recover the cost.The higher the rate is, the less time it takes)
7.Long usage life of jacket (also can extend the life of heater by preventing it from continuous heating.And thus extend the lives of barrel and screw)
8.Water and oil proof, multi-layer protection, anti-corrosion, easy to clean, easy to bend, pollution free and neat out looking.
1.Jacket Material
materials: Ceramic fibre/Glass Fibre/Silicon Rubber/Teflon Coating/...
Thermal Conductiviy(Normal temp): 0.035 W/MK-0.045 W/MK
±0.005
Temperature tolerance: -50℃~+1000℃ (4 types of material for choice)
1) Cold insulation type
2) Low temperature insulation type (below 300℃);
3) Average type (300 ~ 600℃).
4) High temp type (above 600 ℃).
Customer Feedbacks:
Dimensions, cut/ hole size are requried for quotations. Drawings and pictures are perfered.
