Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
AutoCAD, Coreldraw, Ps, etc
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Grentsun
-
Weight (KG):
-
50 KG
-
Core Components:
-
Laser source, Galvanometer, Lens, Mother board
-
Product name:
-

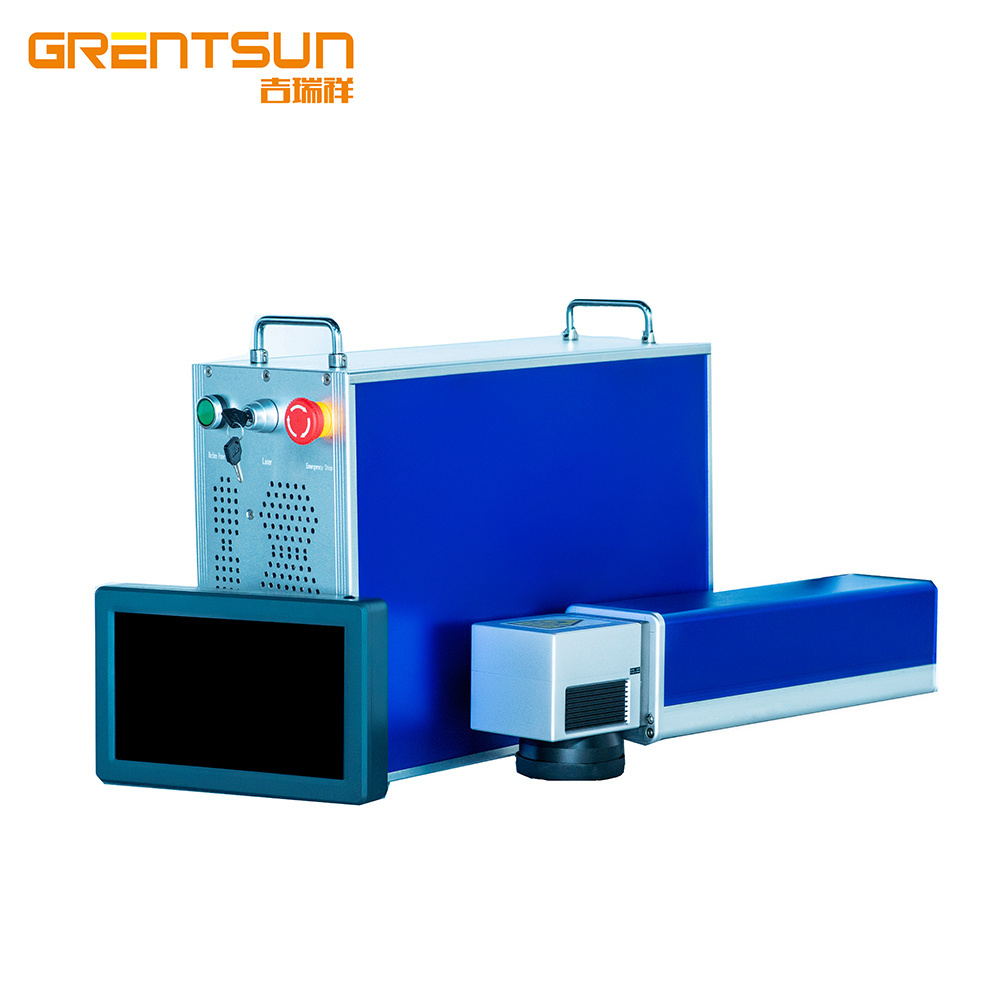

Portable desktop fiber metal gift laser printing
-
Laser power:
-
20W 30W 50W 100W
-
Marking speed:
-
≤7000mm/s
-
Frequency:
-
20KHZ-80KHZ
-
Marking area:
-
110mmx110mm
-
Cooling system:
-
Air cooling
-
Laser wavelength:
-
1064nm
-
Applicable material:
-
Metal plastic
-
Laser source:
-
Raycus/MAX
-
Marketing type:
-
Hot product 2023
Quick Details
-
Working Accuracy:
-
0.005mm
-
Graphic Format Supported:
-
BMP, DXP, PLT, AI, Dwg, LAS, SHX TTF
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
AutoCAD, Coreldraw, Ps, etc
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Grentsun
-
Weight (KG):
-
50 KG
-
Core Components:
-
Laser source, Galvanometer, Lens, Mother board
-
Product name:
-
Portable desktop fiber metal gift laser printing
-
Laser power:
-
20W 30W 50W 100W
-
Marking speed:
-
≤7000mm/s
-
Frequency:
-
20KHZ-80KHZ
-
Marking area:
-
110mmx110mm
-
Cooling system:
-
Air cooling
-
Laser wavelength:
-
1064nm
-
Applicable material:
-
Metal plastic
-
Laser source:
-
Raycus/MAX
-
Marketing type:
-
Hot product 2023
|
Name of Series
|
F6200/F6300/F6500/F6250
|
|
Product Name
|
JPT RAYCUS MAX metal 20w 30w 50w 100w laser engraving machine for jewelry ring necklace with rotary zippo lighter
|
|
Laser Power
|
20W/30W/50W/100W
|
|
Laser Wavelength
|
1064nm
|
|
Laser Beam Quality
|
M2:1.5
|
|
Repeat Frequency
|
20KHz-80KHz
|
|
Repeat Positioning Accuracy
|
0.005mm
|
|
Min.Linear Width
|
0.01mm
|
|
Marking Depth
|
0.01-5mm(varies with material)
|
|
Max.Marking Speed
|
7000mm/s
|
|
Standard Marking Area
|
175*175mm
|
|
Optional Marking Area
|
110*110mm/200*200mm/300*300mm/400*400mm
|
|
Ranted Power
|
<500W
|
|
Rated Voltage
|
220V/50Hz/15A & 110V/50Hz/15A
|
|
Cooling
|
Air Cooling
|
|
Lifetime of source
|
100,000hrs
|
|
Warranty
|
1 year for complete machine
|
|
Gross Weight
|
80kg
|
|
Dimension of Package
|
1000*780*780mm
|
|
Space Needed
|
1600*800*800mm
|
