Quick Details
-
Weight:
-
Other
-
Electric Energy:
-
37 Wh
-
Product name:
-
DC UPS
-
Battery Type:
-
Lithium Battery
-
output power:
-
18w
-
Feature:
-
wide AC voltage range 85vac -265vac
-
Keywords:
-

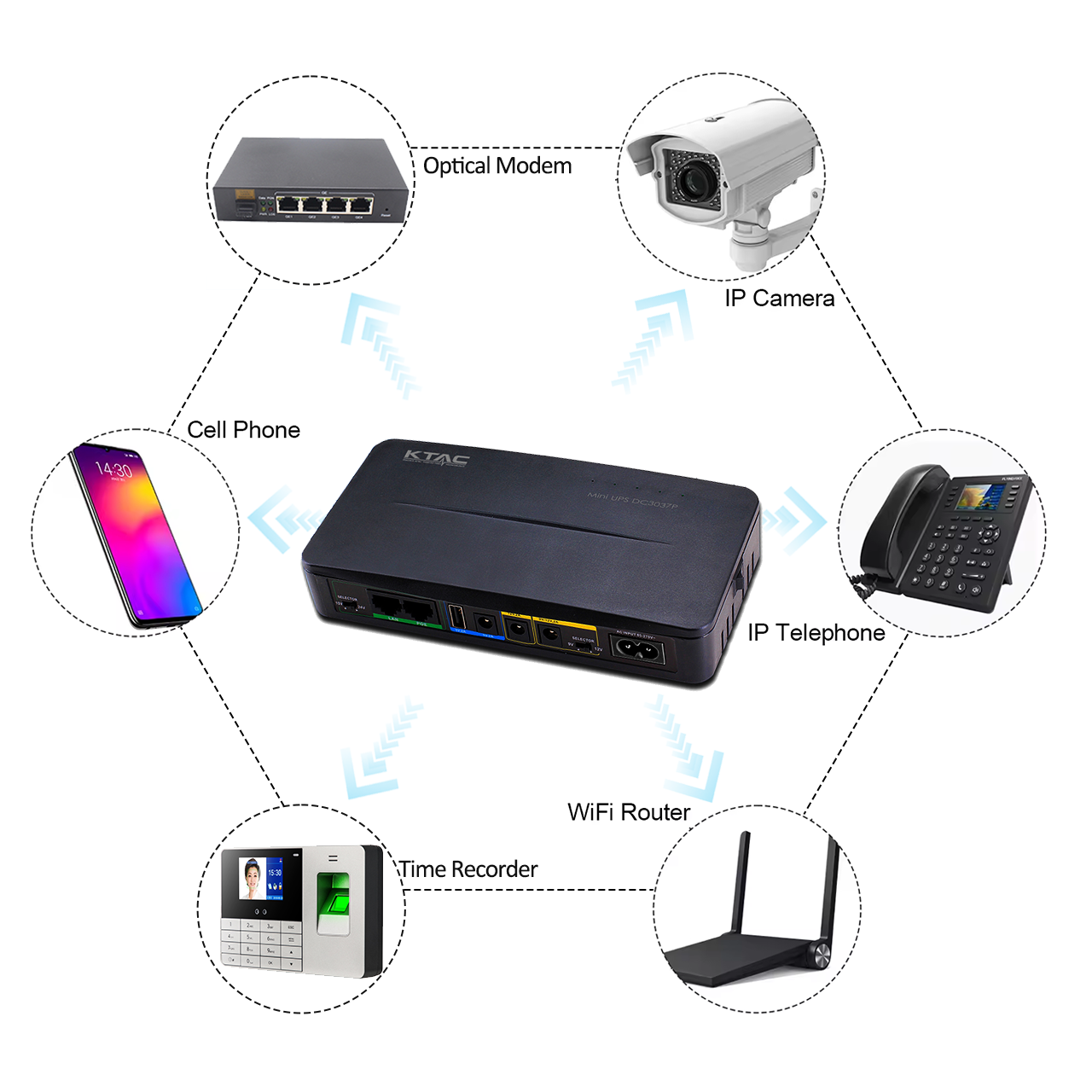

suitable for most digital device
-
DC Output:
-
5VUSB+5V/9V/12V
-
USB output:
-
5V/2A
-
Dimensions:
-
160*105*33mm
-
Protections:
-
overcharging/over discharging/short circuit
Quick Details
-
Place of Origin:
-
GUA
-
Brand Name:
-
Ktac
-
Model Number:
-
DC-1837
-
Weight:
-
Other
-
Electric Energy:
-
37 Wh
-
Product name:
-
DC UPS
-
Battery Type:
-
Lithium Battery
-
output power:
-
18w
-
Feature:
-
wide AC voltage range 85vac -265vac
-
Keywords:
-
suitable for most digital device
-
DC Output:
-
5VUSB+5V/9V/12V
-
USB output:
-
5V/2A
-
Dimensions:
-
160*105*33mm
-
Protections:
-
overcharging/over discharging/short circuit
| KTAC MINI UPS 3637 | VS | COMPETITORS'36w mini UPS | |
| POWER | Real 36W full power for constant usage. | maximum power 30W for a few seconds, cannot power 36W at all, continuous power 28W | |
| Output Voltage |
Output votlage of all ports are stabilized, for example, 12V, it
always keep 12V
output from the beginning till the protection
port, the lowest voltage at 2A load is recorded as 11.85V at the end of discharge |
Output voltage not stabilized, take 12V for example, the output voltage drops quickly from 12V to 10.72V at 75% battery capacity
level. it even goes as low as 9.39V at the end of discharge. |
|
| Application combination | It can support 4 combination of different voltage rated modem and router: 9V+12V, 5V+12, 5V+9V, 12V+12V | It only supports maximum 3 combination of different voltage rated modem and router: 9V+12V, 5V+12, 5V+9V | |
| Battery | Brand new 26650 Lithium battery 5000mAH*2 | Recycled 18650 lithium battery 4*2600mAH | |
| Backup time | Take 28W power load for example, it constantly output 12V, and backup time is 56 minutes |
Take 28W power load for example, its voltage drops quickly to 10.72V and 9.39V till the end of the discharge. backup time is 62
minutes |
|
| Output DC cables | 2 seperate DC cables, Each cable can carry minimum 18W |
1 DC cable with 2 ports(which means if 2 devices connnected, the total power cannot exceed 12W)because the 12V output maximum
current is 1A. |
|
