Quick Details
-
Voltage:
-
CUSTOMIZED
-
Power:
-
315KW
-
Dimension(L*W*H):
-
4000*2500*1500mm
-
Weight (KG):
-
13000
-
Key word:
-
Wood chip machine
-
Power Type:
-
315kw
-
Feed size:
-
1100*530mm
-
Output:
-
15-25t
-
Hammer:
-
YG8
-
Rotary/Fixed knife:
-
55sicr
-
Chip size:
-
30-1100
-
Main motor:
-
With current protection
-
Final product:
-
Wood chips, 3-5mm in length and width, with a thickness less than 5mm
-
Suitable material:
-
Branches, trunks, bamboo, hemp stems, tobacco stems, straw
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Bolida&Rotex
-
Marketing Type:
-
Hot Product 2024
-
Voltage:
-
CUSTOMIZED
-
Power:
-
315KW
-
Dimension(L*W*H):
-
4000*2500*1500mm
-
Weight (KG):
-
13000
-
Key word:
-
Wood chip machine
-
Power Type:
-
315kw
-
Feed size:
-
1100*530mm
-
Output:
-
15-25t
-
Hammer:
-
YG8
-
Rotary/Fixed knife:
-
55sicr
-
Chip size:
-
30-1100
-
Main motor:
-
With current protection
-
Final product:
-
Wood chips, 3-5mm in length and width, with a thickness less than 5mm
-
Suitable material:
-
Branches, trunks, bamboo, hemp stems, tobacco stems, straw

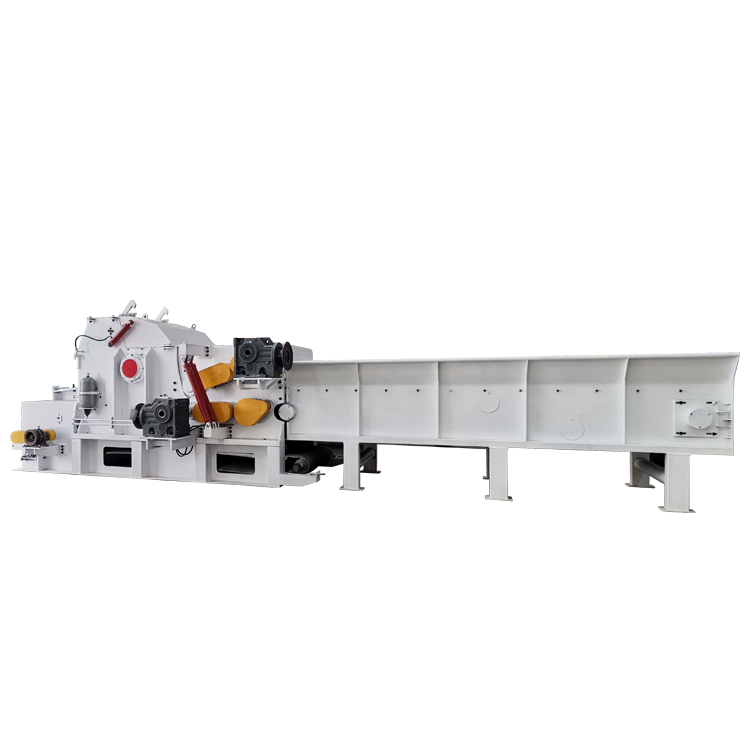

The drum type wood chip machine is composed of machine base, knife roller, up and down feeding mechanism, feeding device and hydraulic buffer system. Mainly used for round wood, small diameter wood, branches, branches, bark, Lath, bamboo and other materials broken.The wood crusher mainly relies on the
impact energy to complete the cru shing of wood.
Comprehensive hammer crusher is working,the motor drives the rotor high-speed rotation,wood evenly into comprehensive cr usher cavity,high-speed rotary hammer impact,shear timber wood is broken,torn and wood s own gravity to make wood from the high-speed rotating hammer head to the body panel,
screen,at the bottom of the rotor and sieve plate,crushing wood smaller than the screen mesh size fraction. Through the sieve plate,is greater than the screen hole size of wood resistance continues to hit by the hammer on the sieve plate and grinding.
| Item | Value |
| Place of Origine | Shandong, China |
| Brand Name | Bolida&Rotex |
| Condition | New |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Warranty of core components | 1 Year |
| Core Components | Motor |
| Voltsge | CUSTOMIZED |
| Power | 315 KW |
| Dimension(L*W*H) | 4000*2500*1500mm |
| Warranty | 1 Year |
| Key Selling Points | Easy to Operate |
| Applicable Industries | Manufacturing Plant, Farms, Other, Industrial wood mill |
| Showroom Location | None |
| Weight(KG) | 15000 |
The blade type wood chip machine is equipped with a 50 * 50mm sieve to cut regular wood chips, with a length of about 3-5mm and a thickness of less than 5mm.
1.Technical guidance, according to your capacity and raw material ,recommend a most suitable model
2.Visit to our factory and have an investigation and performance test
3.Engineers avialable to service machinery overseas.
4.Warranty 1 year,quality gurantee, except wear parts and wrong operation.
