Quick Details
-
Brand Name:
-
YANGYI
-
Model Number:
-
Vi-1DLi
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
2CFM
-
Cable Length:
-
0 mm
-
Power:
-
300W
-
Battery Output Voltage:
-
18V
-
battery Output Current:
-
2A
-
Motor:
-
DC Brushless Motor
-
Package:
-
Aluminum case packing
-
Function:
-
Vacuum
-
Certification:
-
ce
Quick Details
-
Application:
-
Automotive Industry, Family Homes, HVAC OEM, Other
-
Pressure:
-
High Pressure
-
Warranty:
-
1 Year, 1 Year
-
Brand Name:
-
YANGYI
-
Model Number:
-
Vi-1DLi
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
2CFM
-
Cable Length:
-
0 mm
-
Power:
-
300W
-
Battery Output Voltage:
-
18V
-
battery Output Current:
-
2A
-
Motor:
-
DC Brushless Motor
-
Package:
-
Aluminum case packing
-
Function:
-
Vacuum
-
Certification:
-
ce
Description
Scope Of Application

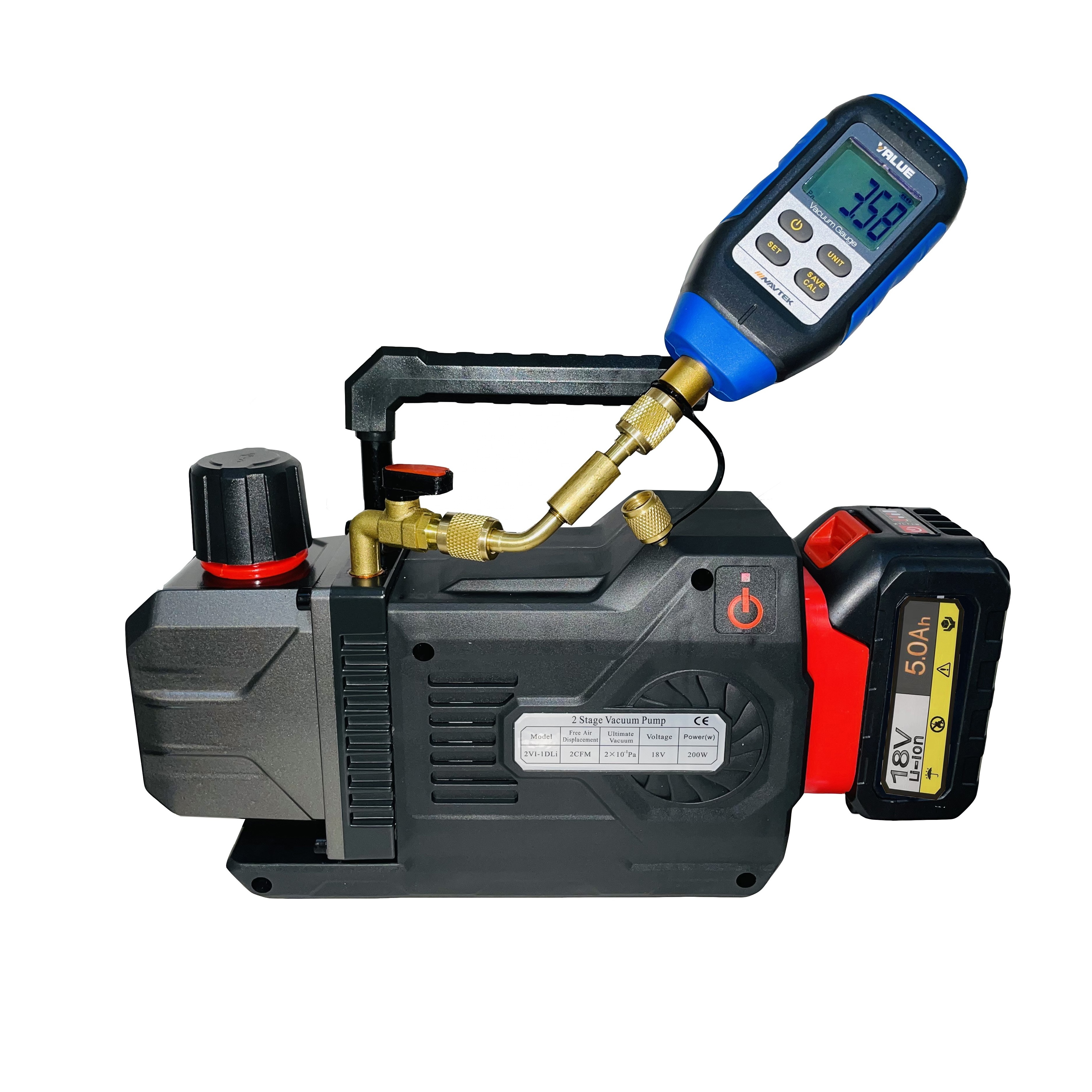

Brushless series rotary vane vacuum pump is the basic equipment used to get vacuum by pumping gas out of the sealer. This product is suitable for refrigeration maintenance (Refrigerant includes CFC,HCF and HFC,such as R12/ R22/ R32/ R410a/ R134a/ 1234YF), printing machinery, vacuum packaging, gas analysis, thermoplastics molding and other industries, and can also be used as the front stage pump of various high vacuum equipment.
Technical Data
|
Model
Item Name
|
Brushless Series Vacuum Pump
|
|
|
|
|
Vi-1DLi
|
2Vi-1DLi
|
|
|
Voltage
|
18V-5.0AH
|
|
|
|
Ultimate Vacuum（Pa）
|
2
|
2×10
-1
|
|
|
Input Power（W）
|
150
|
200
|
|
|
Flow Rate
|
2CFM 1L/s（3.6m³/h）
|
|
|
|
Diameter (mm)
|
274×92×196 mm
|
|
|
|
Weight (Kg)
|
3.2
|
3.65
|
|
|
Inlet Diameter
|
1/4" SAE
|
1/4" SAE
|
|
Instructions for Battery and Charger
For Charging Time
When the charging indicator is red, it means charging; when it is green, it means full charge;
1.
Please charge the battery indoors;
2.
The battery is only suitable for 18V, 5Ah lithium battery;
3.
Ensure that the power supply voltage is consistent with the input voltage of the charger;
4.
When the charging indicator is red, it means charging; when it is green, it means full charge;
5.
In the process of charging, the slight heat of battery shell is normal;
6.
Please fully charge the battery before using the vacuum pump, so as not to affect the normal use of the vacuum pump;
7.
After the battery has been used for a long time, please cool the battery before charging.
(the above requirements only apply to vacuum pump with lithium battery)
Safety Warning
1.Before using, check the charger, wire and plug. If any fault is found, please do not use charger. Non professional personnel should not open charger or carry out maintenance. If necessary, please contact our service organization in time;
2.Do not let charger rain or soak in water, water will increase the risk of electric shock;
3.Do not use charger on flammable material surface or flammable environment;
4.Before any maintenance or cleaning, please unplug the power plug of charger to avoid the danger of electric shock.
Packing and Shipping
For Packing:
Each machine is under carefully packing.
We can pack the goods into quality carton box, pallets or wooden box with shipping mark.
