* The axial flow type 7pcs fan blade structure is uniquely made from nylon-fiber-aluminum, to upgrade the fan system with better performance at quieter operation!
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SIPL
-
Voltage:
-
24V
-
Fan Type:
-
axial flow type, roof mount ventilation low voltage ceiling fan
-
Power Supply:
-
50W/24V mono solar panel, tilting & adjustable, glass laminated
-
Fan Motor:
-
brushless DC motor, operation voltage 9-24V per PV input
-
Fan Blades:
-
14 inch, 7 blades
-
Air Duct:
-
dia.368mm (14'')
-
Fan Base:
-
600*600mm galvanized steel (can change into Aluminum)
-
Casing Material:
-
galvanization steel, with anti-UV powder coating finished
-
Product Size:
-
600x600x255mm (when solar panel is placed flat)
-
Work Time:
-
day-time, nonstop as long as sunlight is available
-
Size Options:
-
yes, 12'' / 14'', 40W / 50W / 60W
Quick Details
-
Mounting:
-
Roof / Ceiling / Attic / Gable / Wall Fan
-
Power:
-
50W
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SIPL
-
Voltage:
-
24V
-
Fan Type:
-
axial flow type, roof mount ventilation low voltage ceiling fan
-
Power Supply:
-
50W/24V mono solar panel, tilting & adjustable, glass laminated
-
Fan Motor:
-
brushless DC motor, operation voltage 9-24V per PV input
-
Fan Blades:
-
14 inch, 7 blades
-
Air Duct:
-
dia.368mm (14'')
-
Fan Base:
-
600*600mm galvanized steel (can change into Aluminum)
-
Casing Material:
-
galvanization steel, with anti-UV powder coating finished
-
Product Size:
-
600x600x255mm (when solar panel is placed flat)
-
Work Time:
-
day-time, nonstop as long as sunlight is available
-
Size Options:
-
yes, 12'' / 14'', 40W / 50W / 60W
What is Solar Attic Fan, and Why?
Solar Attic Fan is a kind of roof mounted air exhaust fan , to take out indoor heat for bringing down the interior air temperature. Since it's powered by solar panel , it doesn't consume grid electricity, correspondingly, there is no need to bother from cabling with the electric grid, and there is no economic burden for future maintenance.
A commonly used device has been Turbine Air Blower, but since wind turbo is non-power, while solar attic fan contains a solar panel to generate energy for motor to run / fan blades to rotate actively, the performance of solar attic fan is absolutely much stronger, so it is in fact an irreversible solution to adopt Solar Attic Fans!
SIPL Comprehensive & Innovative Solar Ventilation Exhaust Fans
Having been a strong & experienced & of far sight seeing solar manufacturer in the ventilation industry since from 2012, we make our solar fans into a comprehensive series that they cover your different demands either for roof / wall / ceiling mounting, or for day time heat extraction / day-night time continuous air circulation, or for home / factory / greenhouse / poultry farm / water tank / dome tent / storage container heat exhaust use, etc.
And, to better suit such various ventilation demands, our solar fan series include different size / power options that a smaller power one is enough for a small space application, while a bigger power one or more pieces together is recommended for a large space application!
Product Details
SN2016010
: 40W/21V polycrystalline solar panel (495x495x25mm),
IP68 brushless DC motor,
14'' Nylon-Fiber-Aluminum compound fan blades (air duct dia. 368mm),
dia.530mm Round shape fan cover,
600*600mm square shape fan base,
fan case material: galvanization steel, size: 600x600x255mm
The
solar powered attic fan
(also
solar power roof vent /
roof air
exhaust fan / factory exhaust fan
/
industrial roof extractor fan /
motor ventilation technology factory manufacturer greenhouse glass roof vent /
flat glass coating machine heat extractor circulation fan
/
solar ventilation fan
BLDC blower
/
solar air blower / extractor fan blower /
roof sunlight ceiling solar blower /
home solar system /
adjustable fan for farming / attic fans for sale / hot water extractor
, etc.)
here belongs to a big size / power version, and it suits almost every application places covering residential, industrial, commercial even agricultural. But if you prefer an even bigger one, please take its biggest power version as 14'' 50W:
SN2018026
: 14'' 50W/22.5V
, PV adjustable
SN2014004-50
: 14'' 50W/22.5V, PV detachable
"We are 100% Reliable Manufacturer and Look High into the Product Qualities & Utilities!"
Professional Product Design:
* Patented Ventilation Structure:
Our Solar Attic Fan is an axial flow type roof ventilator, but it is made with a 360-degree swirl turbin air ventilation structure to guarantee no backward air flow from the exterior. This is essential & beneficial:
Wind Guide Baldes + Fan Blades
* The wind guide cone with 24pcs wind guide blade structure is held a patent by us, to effectively support the interior hot air be extracted out at less counterforce!
* The axial flow type 7pcs fan blade structure is uniquely made from nylon-fiber-aluminum, to upgrade the fan system with better performance at quieter operation!
* The axial flow type 7pcs fan blade structure is uniquely made from nylon-fiber-aluminum, to upgrade the fan system with better performance at quieter operation!
* Unique Brushless DC Motor:
Our solar attic fan will start and keep running once sunlight is available, own to it is equipped with a best motor. This engine is IP68 waterproof, to assure the fan be suitable to install anywhere:
High Efficiency + Unique Waterproof
* The high energy efficiency feature in our motor supports the fan start running once solar panel input reaches 9V in the morning, and the fan keep running until solar panel output drops down to 9V in the afternoon!

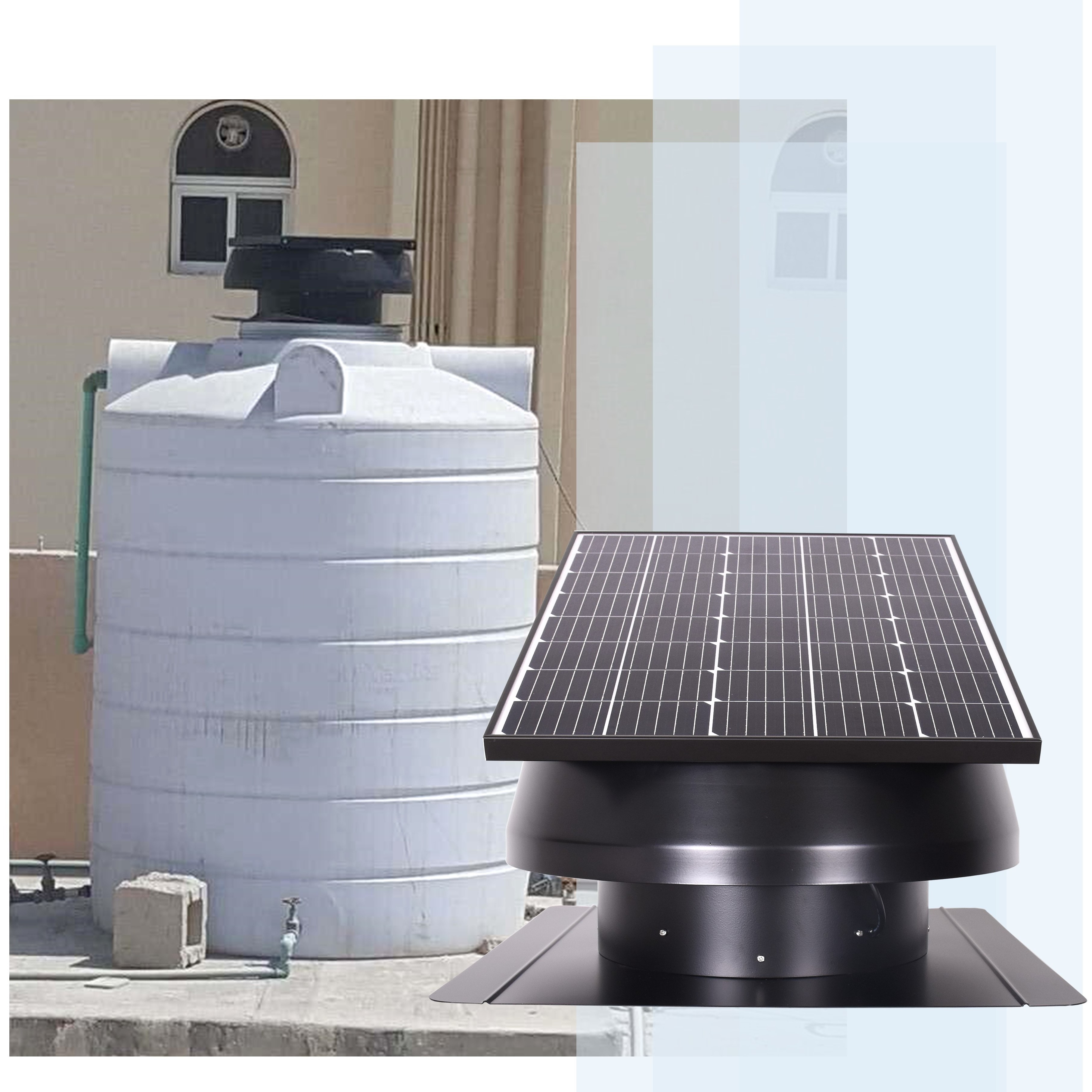

* Since IP68 waterproof, our product is guaranteed to work well in a long run, even for greenhouse / water tank applications, while other similar items can not do!
* Since IP68 waterproof, our product is guaranteed to work well in a long run, even for greenhouse / water tank applications, while other similar items can not do!
Reliable Product Performance at Easy Installation:
Being a self-contained solar ventilation attic fan, our equipment will work friendly & reliably after you put it onto the building roof. Moreover, own to good product strucure and off-grid solar feature, our solar attic fans would effectively reduce the possible maintenance trouble for you in future.
Standardized Production with High Consistency:
Our solar fan productions run on a well scheduled line, with each fan part be tested before assembly & the fully assembled unit be
futher 100% tested before package. This standardized production guideline brings our products a high consistency.
Practical Product Applications:
Our solar attic roof fan can work for anywhere that needs air ventilation, heat extraction, etc.
Customization Serivce
Flexible Customization Possibilities Make the Fan Most Fit:
*
Different Fan Base
, to make the solar fan installation easily fit to the roofing profile
*
Fan Guard
, to protect fan blades or to prevent small animals entering into the house
*
Thermostat
or
Cable Cord with Switch
or
Remote Controller
, to run/stop the solar fan
*
AC/DC Adapter
or
Solar Battery Kit
, to run the solar fan nonstop even at night
AC/DC Adapter
* to support the solar fan runs nonstop under grid electricity supply during sunless periods
* AC input is suitable 100~240V
* DC output is maximum 18V 1.5A
* an inbuilt Smart Controller will be added into the solar fan to handle automatic power shifts between solar panel & this AC/DC adapter
* shall be plugged to a wall socket
* AC input is suitable 100~240V
* DC output is maximum 18V 1.5A
* an inbuilt Smart Controller will be added into the solar fan to handle automatic power shifts between solar panel & this AC/DC adapter
* shall be plugged to a wall socket
i.e.
SN2016010
+SN2013016
Solar Battery Kit
* to support the solar fan runs nonstop under battery supply during sunless periods
* 9.6Ah battery is charged by an independent 40W/19.5V solar panel
* battery output is maximum 16V 0.5A
* an inbuilt Smart Controller will be added into the solar fan to handle automatic power shifts between solar panel & this battery kit
* 9.6Ah battery is charged by an independent 40W/19.5V solar panel
* battery output is maximum 16V 0.5A
* an inbuilt Smart Controller will be added into the solar fan to handle automatic power shifts between solar panel & this battery kit
* shall be put onto the building roof to receive sunshine
i.e.
SN2016010
+SN2015024
Remote Controller
* to turn off/on the solar fan immediately
* can turn off the solar fan automatically after a set 2hrs/4hrs operation time
* an inbuilt Smart Controller will be added into the solar fan and code-match with this remote controller to realize its remote manual settings
* can turn off the solar fan automatically after a set 2hrs/4hrs operation time
* an inbuilt Smart Controller will be added into the solar fan and code-match with this remote controller to realize its remote manual settings
* each time of remote setting is valid for 12 hours only
, which means the fan will automatically resume running ever after
Quality & Warranty
|
Solar Panel
|
designed lifespan > 25 years
|
warranty: 15 years
|
|
Fan Casing
|
designed lifespan > 20 years
|
warranty: 15 years
|
|
Fan Motor & Fan Blades
|
designed lifespan > 10 years
|
warranty: 5 years
|
|
other electronic components
|
designed lifespan > 10 years
|
warranty: 5 years
|
|
if AC/DC Adapter
|
designed lifespan > 10 years
|
warranty: 2 years
|
|
if Solar Battery Kit
|
designed lifespan > 10 years
|
warranty: 2 years
|
|
if Remote Controller
|
designed lifespan > 10 years
|
warranty: 2 years
|
* the above warranty terms are based on the products be used in normal environments, no corrosive substance surrounded
