1. The product pictures are for reference only.
2. Copyright @ NINGBO GUBO ELECTRIC CO.,LTD and GTE GROUP LTD. All right reserved.
3. Main parameters are according to versions as following:
*Dimension and Voltage: single color at AC110V or 220V, RGB/RGBW at DC24V
4. All parameters are measured at 25℃ ambient temperature, 35% humidity experimental environment.
5. Tolerances of power and luminous flux are ±10%, tolerance of color rendering index is ±5.

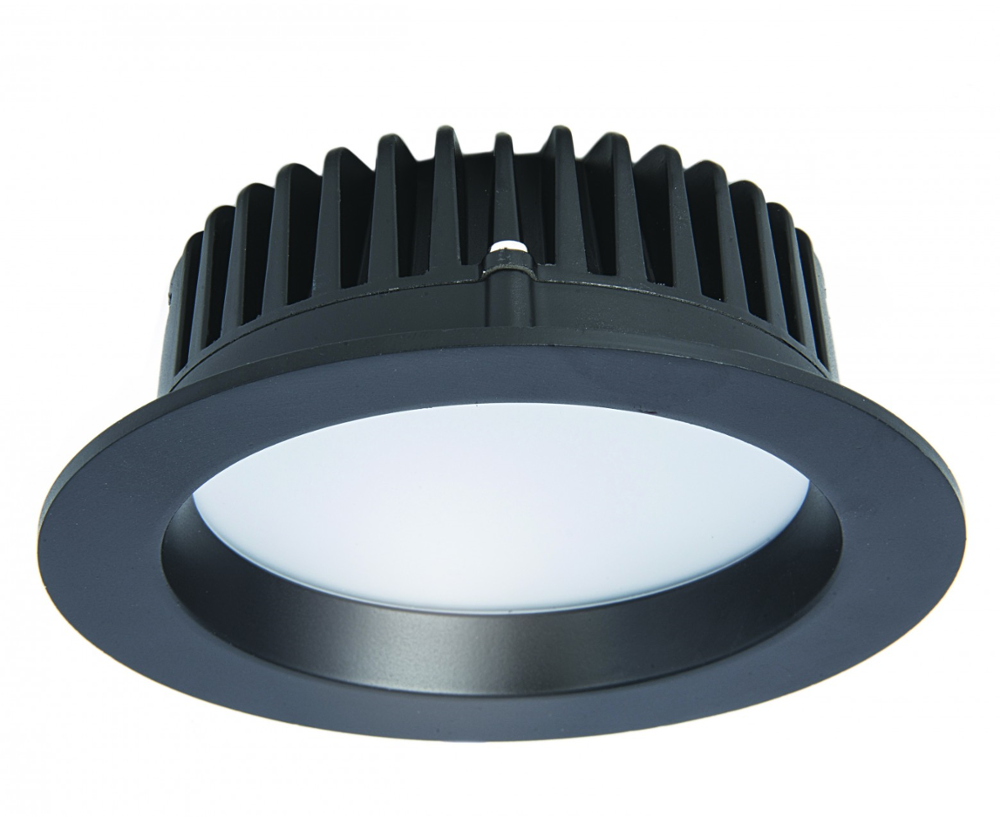

GUBO has developed luminaires with special housing designs and high-quality optical components specifically for demanding visual tasks to provide enhanced visual comfort. Lighting design based on surface-mounted downlights need not be a workaround. The Compact downlight combines brilliant light with the robustness of outdoor luminaires. Compact as a surface-mounted downlight is the perfect solution for illumination in existing buildings, where recessed mounting is not possible. Extra wide flood and oval flood as different light distributions enable its use in passageways and arcades as well as on the terrace of a private residence. Compact can just as easily be used for vertical illuminance through wallwashing.
The luminaires in the GUBO product range cover a wide variety of lumen categories and therefore offer an appropriate solution for a large number of lighting tasks.
These Ceiling-mounted light, with tempered safety glass, high efficiency PMMA lens, extruded aluminum body and ceiling support made from injected aluminum.
High lumen packages for very high illuminances. Large luminaire spacing for wallwashing. Efficient photometrics allow specific luminaires to be spaced unusually far apart at up to 1.5 times the offset from the wall.
This will provide downward lighting and is great if you do not wish to install recessed downlights into your ceiling. Use in singles or multiples as preferred. Ideal for installing in exteriors and interiors, such as cornices, porches, sheds, kitchens, living room etc.
|
Setting Information
|
|
|
|
Item No.
|
GTR1701D-24W
|
|
|
Rated Voltage
|
AC100-277V, 50/60HZ
|
|
|
Rated Power
|
24W
|
|
|
Light Color
|
2200K/3000K/40000K/6000K
Amber/Red/Green/Blue
|
|
|
installation
|
False Ceiling Recessed
|
|
|
Protection Class
|
IP65
|
|
|
Electric Class
|
Class Ⅰ&Ⅱ&Ⅲ
|
|
|
Warranty
|
3/5 years
|
|
Optimized Waterproof Structure
Widely Reconization By Application Since 2009Y
Advanced LED Technology
Uniform Comfortable Illumination
Color Rendering Index Ra＞90
Long Lifespan ＞50,000hours
Glare protection lens board: coated matt black, matt white, matt gold, matt silver or matt champagne
LED Branding: EPISTAR
Driver Branding: GUBO
Housing: Die-casted Aluminum Housing
Housing: GTE’ Patent Aluminum Radiator
Diffuser: Frosted Tempered Glass Diffuser
[DP] Diffuser: Opal PC Diffuser
Emergency Modular, Motion Sensor Modular
Designed and Manufactured to Comply with TUV/GS/CE/RoHS/EMF/SAA/Erp/cUL
IP65 Protection, Class Ⅲ Electric
Round beam 5°/ 10°/15°/25°/30°/60°/90°/120° are available, rotationally symmetrical light distribution for general lighting.
Axially symmetrical light distribution for linear lighting. 10°x45°, 20°x60°, 30°x65° are vailable.
Asymmetrical light distribution for highly uniform wallwashing. Round beam 10°/15°/25°/30°/60° at Polarized 15°, and symmertrical10°x45°, 20°x60°, 30°x65° at Polarized 15° are vailable.
