Quick Details
-
Weight (KG):
-
0.01 KG
-
Product name:
-

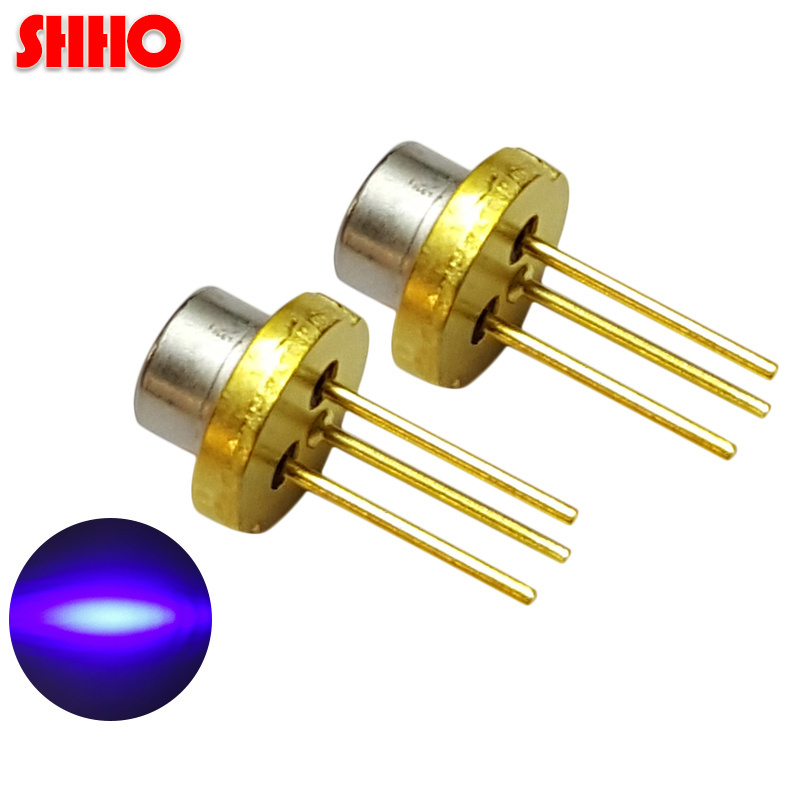

405nm 350mw blue violet diode
-
Power:
-
350mw
-
Size:
-
Diameter 5.6mm
-
Description:
-
405nm 350mw laser diode
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Spare Parts Type:
-
TO-18
-
Brand Name:
-
SHHO
-
Weight (KG):
-
0.01 KG
-
Product name:
-
405nm 350mw blue violet diode
-
Power:
-
350mw
-
Size:
-
Diameter 5.6mm
-
Description:
-
405nm 350mw laser diode
|
Category
|
Description & parameters
|
Category
|
Description & parameters
|
|
Type
|
SLD450350TM-A
|
Operating Voltage
|
4.5 (V)
|
|
Output wavelength
|
405±10 （nm）
|
Max operating Current
|
< 400 (mA)
|
|
Maximum output power
|
<350（mw）
|
Suggested operating current
|
Around 325（mA）
|
|
Package Dimensions
|
T0-18/φ5.6 mm
|
Diode pins connection method
|
Pin are shown in Figure
B
below
|
|
Service life
(Continuous use)
|
> 10000 hours
|
Photodiode （PD have or no）
|
No
|
|
Shell material
|
Metal
|
Operating Temperature
|
0℃~+50℃
|
|
Surface treatment
|
Gold-plated
|
Storage Temperature
|
-40℃~+85℃
|
---------------------------------------------------------------------------------------------------------------------------------------
Zhongshan Shuanghong Electronics Co., Ltd., a company with 20 years of R & D and production experience in laser industry, will give you a different purchasing experience！
Technology and customer service: Ted su E-mail：707687238@qq.com Tel&Wechat：+86-13432120064
Zhongshan Shuanghong Electronics Co., Ltd., a company with 20 years of R & D and production experience in laser industry, will give you a different purchasing experience！
Technology and customer service: Ted su E-mail：707687238@qq.com Tel&Wechat：+86-13432120064
---------------------------------------------------------------------------------------------------------------------------------------
1.
The diode is not recommended to be connected to the power supply directly according to the current and voltage parameters, but in order to ensure its safety and not easy to damage, it is recommended to weld the drive circuit board.
2.
The higher the power of the diode, the faster its own work heat, so if need to work for a long time, you should pay attention to heat treatment.
3.
Correct use of welding equipment, welding joint modulation at 300 ℃, welding time is recommended not to exceed 5 seconds.
4.
If the diode is damaged, it cannot be repaired.
5.
Because of the particularity of the diode, it will affect its life after use, so it cannot be returned.
Application of laser :
With the development of science and technology, the application of laser is more and more widely. Now the most common applications are: intelligent robot, home intelligent products, PM2.5 detector, sweeping robot, laser rangefinder, sighting device, game equipment, installation equipment, marking instrument, laser sensor, night vision, sewing and cutting machine, tire positioning, mechanical sheet metal marking, cutting machine marking, textile clothing Sewing positioning, golf correction positioning, SMT positioning, freeze frame, steel plate printing positioning, stone cutting marking, sawing marking, woodworking machinery marking, stone bridge cutting machine positioning, shoe machine positioning, knot machine, printing machine and other applications. It can also be used for friends who love to make small products by themselves or for experimental teaching and product development in school educational institutions and research institutions.
With the development of science and technology, the application of laser is more and more widely. Now the most common applications are: intelligent robot, home intelligent products, PM2.5 detector, sweeping robot, laser rangefinder, sighting device, game equipment, installation equipment, marking instrument, laser sensor, night vision, sewing and cutting machine, tire positioning, mechanical sheet metal marking, cutting machine marking, textile clothing Sewing positioning, golf correction positioning, SMT positioning, freeze frame, steel plate printing positioning, stone cutting marking, sawing marking, woodworking machinery marking, stone bridge cutting machine positioning, shoe machine positioning, knot machine, printing machine and other applications. It can also be used for friends who love to make small products by themselves or for experimental teaching and product development in school educational institutions and research institutions.
