- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Mingyang
-
Model Number:
-
CS-A/CS-B/CS-C
-
Weight (KG):
-
1200
-
Power (kW):
-
2.2
-
Product name:
-
barbed wire making machine
-
Strand wire diameter:
-
1.6-3.0mm
-
barbed wire diameter:
-
1.6-2.8mm
-
Raw material:
-
Galvanized steel wire
-
Motor power:
-
2.2kw/3.0kw
-
Twisted number:
-
3-5
-
Production:
-
70kg/h
-
weight:
-
1200kg
-
Dimension:
-
1950*950*1300mm
-
Advantage:
-
Fast Speed
Quick Details
-
Wire Diameter (mm):
-
1.5 - 3 mm
-
Marketing Type:
-
Hot Product 2024
-
Production Capacity:
-
30 Sets/Month
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Mingyang
-
Model Number:
-
CS-A/CS-B/CS-C
-
Weight (KG):
-
1200
-
Power (kW):
-
2.2
-
Product name:
-
barbed wire making machine
-
Strand wire diameter:
-
1.6-3.0mm
-
barbed wire diameter:
-
1.6-2.8mm
-
Raw material:
-
Galvanized steel wire
-
Motor power:
-
2.2kw/3.0kw
-
Twisted number:
-
3-5
-
Production:
-
70kg/h
-
weight:
-
1200kg
-
Dimension:
-
1950*950*1300mm
-
Advantage:
-
Fast Speed
New fashionable stylish positive negative twist south africa barbed wire machine for sale

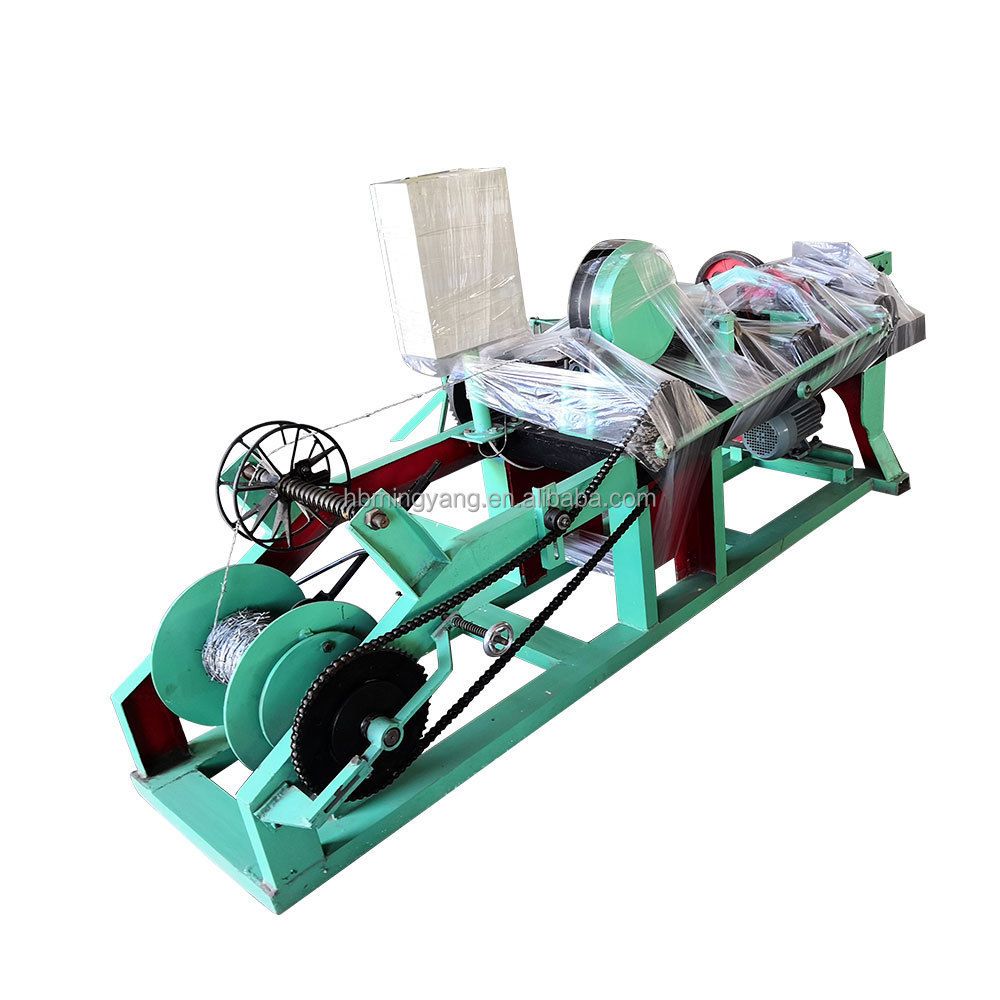

The small scale barb wire machine is divided into Normal strand small scale barb wire machine (CS-A), single strand small scale barb wire machine (CS-B), Positive and negative twist small scale barb wire machine ( CS-C ) , blade razor Factory Spick Wire Galvanized Barbed Wire Machine.
| Mode Items | CS-A | CS-B | CS-C |
| Coil wire diameter | 1.5-3.0mm | 2.2-3.0 | 1.5-3.0mm |
| Barbed wire diameter | 1.6-2.8mm | 1.6-2.8mm | 1.4-2.8mm |
| Barbed space | 75-153mm | 75-153mm | 75-153mm |
| Motor power | 2.2kw/3kw | ||
| Twisted number | 3-5 | 7 | |
| Raw material |
Galvanized wire or PVC coated wire |
||
| Drive speed |
402 r/min |
355 r/min |
355 r/min |
| Total weight | 1200kg | 1000kg | 1000kg |
| Dimension | 1950*950*1300mm | 3100*1000*1150mm | 3100*1000*1150mm |
| 1760*550*760mm | |||
Normal Twisted small scale barb wire machine CS-A
Single strand small scale barb wire machine CS-B
Reverse Twist small scale barb wire machine CS-C
|
||
|
hot-dipped galvanized low carbon steel wire and low-strength steel wire as material wire |
There are start button, stop button and emergency stop button on the electric box. The counter can set the output automatically |
Take up reel can be customized according to customer requirements, including the size and diameter of the reel |
|
Traverse device can automatically move the position to make the take-up more uniform and beautiful |
The mechanical parts are made of alloy steel to ensure the long-term operation and overall service life of the machine |
The screw thread system has the advantages of simple structure, convenient operation and easy replacement of twisted head |
| CS-A | CS-B | CS-C |
Barbed Wire Making Machine produces barbed wire, barbed wire widely used in military field, prisons, detention houses, government buildings, national security facilities, and fencing of residences, villa wall and windows, express way, railway, national border lines
