- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
ptfe sheet
-
Thickness:
-
0.01mm~0.9mm
-
Size:
-
non standard
-
Product name:
-
PTFE sheet
-
Color:
-
White
-
Application:
-
insulating
-
Certificate:
-
ROHS REACH MSDS
-
Surface:
-
Smooth; clear; purity
-
Density:
-
2.1-2.3g/cm3
-
Width:
-
1-1220mm
-
Length:
-
1-2000mm
-
Property:
-
Chemical free / high temperature resistance
-
Company Type:
-
Factory
Quick Details
-
Processing Service:
-
Cutting, hot-pressing
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
dechengwang
-
Model Number:
-
ptfe sheet
-
Thickness:
-
0.01mm~0.9mm
-
Size:
-
non standard
-
Product name:
-
PTFE sheet
-
Color:
-
White
-
Application:
-
insulating
-
Certificate:
-
ROHS REACH MSDS
-
Surface:
-
Smooth; clear; purity
-
Density:
-
2.1-2.3g/cm3
-
Width:
-
1-1220mm
-
Length:
-
1-2000mm
-
Property:
-
Chemical free / high temperature resistance
-
Company Type:
-
Factory
OUR PTFE Semi-Finished Products
Do you manufacturer PTFE parts yourself or are you looking for PTFE semi-finished products? As an expert in PTFE filed, we could recommend the suitable material size and guarantee quality for you.

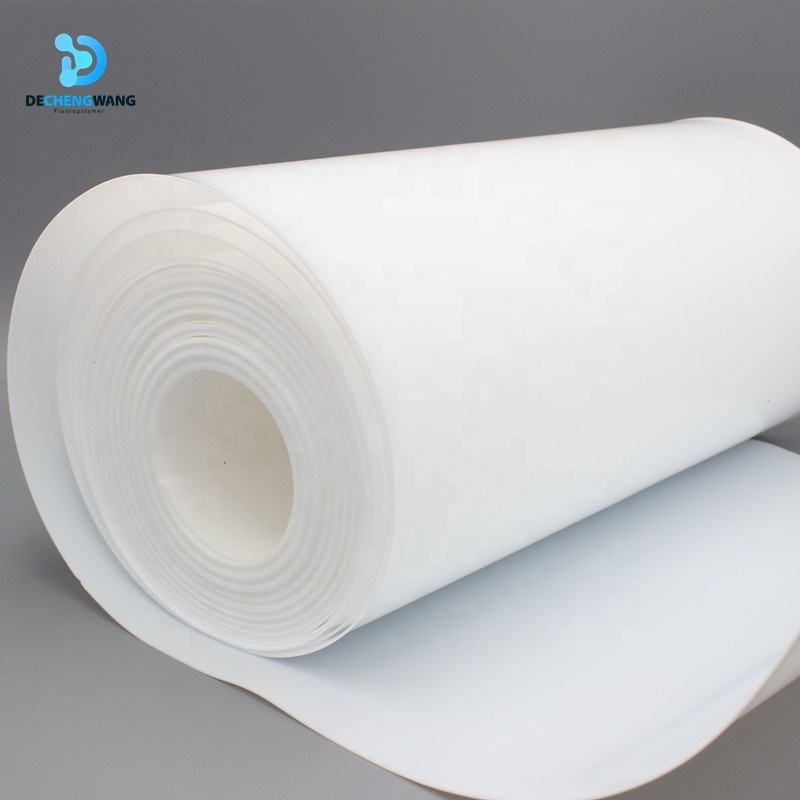

PTFE Sheet and Film Description
PTFE sheet is available in various sizes and thicknesses ranging from 1 to 60 mm (<6mm will be skived). Skived film is skived from large PTFE blocks (round) . Molded PTFE sheet is process with Molding method to get a thicker thickness.
* PTFE Film and Sheet: Thickness: <6mm skived PTFE Film Thickness: ＞6mm PTFE Molded Sheet
* PTFE Etched Film: For applications in which the PTFE film needed be bonded, we recommend a one side etched (or two side) etched PTFE film.
* PTFE Film and Sheet: Thickness: <6mm skived PTFE Film Thickness: ＞6mm PTFE Molded Sheet
* PTFE Etched Film: For applications in which the PTFE film needed be bonded, we recommend a one side etched (or two side) etched PTFE film.
|
PTFE Sheet Type
|
Thickness
|
Width Range
|
Material Option
|
|
PTFE Skived Film
|
Up to 6mm
|
Range from 100 to 2000mm
Roll PackageRegular in 10~50 Meters
|
PTFE
PTFE Compounds |
|
PTFE Molded Sheet
|
Up to 70mm
|
Standard Block size
250 x 250
300 x 300
500 x 500
600 x 600
800 x 800
1000 x 1000
1200 x 1200
1200 x 1800
1500 x 1500
1000 x 2000
|
PTFE
PTFE Compounds |
PTFE Molded Sheet
PTFE Skived Film
PTFE Extched Film
FLOW CHART
OUR MATERIALS
|
Material Name
|
Main Properties
|
Compliant
|
Temperature Range
|
|
PTFE
|
This synthetic fluoropolymer of tetrafluoroethylene is known for being one of the most versatile plastics available. Being
hydrophobic, non-wetting, high density and resistant to high temperatures, it is a material with a wide variety of applications across a range of different industries. |
FOOD CONTACT AVAILABLE, RoHS, REACH
|
-180°C to 260°C
|
|
Modified PTFE
|
Modified PTFE or TFM, is a high-density copolymerized material. It has low gas permeation and reduces cold flow. Often used in the medical field and in other applications where biocompatibility is required.
|
FOOD CONTACT AVAILABLE, RoHS, REACH
|
-180°C to 260°C
|
|
PTFE Compounds
|
PTFE compounded with fillers like glass fibers, carbon, graphite, bronze, MoS2, PEEK etc. to improve physical, mechanical,
thermal, wearing, electrical and chemical properties. |
FOOD CONTACT AVAILABLE, RoHS, REACH
|
-70°C to 250°C
|
|
PEEK
|
PEEK is a high-performance engineering plastic with outstanding chemical resistance, excellent mechanical strength and dimensional stabilization.
|
FOOD CONTACT AVAILABLE, RoHS, REACH
|
-70°C to 250°C
|
|
PEEK Compounds
|
Standard PEEK virgin grade is suitable for laboratory and medical use. After being reinforced with glass fibers and carbon, its
expansion rate is significantly reduced and the flexural module is increased. This makes it ideal for applications requiring increased stability, strength and rigidity at temperatures above 300°F. |
FOOD CONTACT AVAILABLE, RoHS, REACH
|
-70°C to 250°C
|
|
PFA
|
PFA has most of the physical and chemical properties of PTF, which is commonly used as material for piping and fittings, as well as corrosion-resistant lining of vessels.
|
FOOD CONTACT AVAILABLE, RoHS, REACH
|
-200°C to 260°C
|
|
PVDF
|
PVDF is a special material in fluoropolymer. Maximum purity, strength, and resistance to solvents, acids, bases and heat, all those characteristics make PVDF popular in some critical applications.
|
FOOD CONTACT AVAILABLE, RoHS, REACH
|
-50°C to 150°C
|
|
PCTFE
|
PCTFE (polychlorotrifluoroethylene) is a fluoropolymer material with exceptional strength, rigidity and stability in dimensions.
|
FOOD CONTACT AVAILABLE, RoHS, REACH
|
-400°C to 150°C
|
DCW PRODUCTION EQUIPMENT
INSPECTION STANDARD
TOP 5 Advantage of DCW
PACKAGE
