Quick Details
-
Rated Power:
-
Standard
-
Diameter:
-
Standard
-
D/C:
-
Newest
-
Tolerance:
-
±10%,±20%
-
Resistance Tolerance:
-
±10%,±20%
-
Operating Temperature:
-
-55℃~+125℃
-
Mounting Type:
-
Through hole
-
Actuator Length:
-
Standard
-
Length:
-
Standard
-
Power (Watts):
-
Standard
-
Temperature Coefficient:
-
Standard
-
Max. Operating Voltage:
-
Standard
-
Description:
-
Trimmer
-
Resistance:
-
10Ω to 2MΩ
-
Cross Reference:
-
Please contact us
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Original
-
Model Number:
-
Please contact us
-
Rated Power:
-
Standard
-
Diameter:
-
Standard
-
D/C:
-
Newest
-
Tolerance:
-
±10%,±20%
-
Resistance Tolerance:
-
±10%,±20%
-
Operating Temperature:
-
-55℃~+125℃
-
Mounting Type:
-
Through hole
-
Actuator Length:
-
Standard
-
Length:
-
Standard
-
Power (Watts):
-
Standard
-
Temperature Coefficient:
-
Standard
-
Max. Operating Voltage:
-
Standard
-
Description:
-
Trimmer
-
Resistance:
-
10Ω to 2MΩ
-
Cross Reference:
-
Please contact us

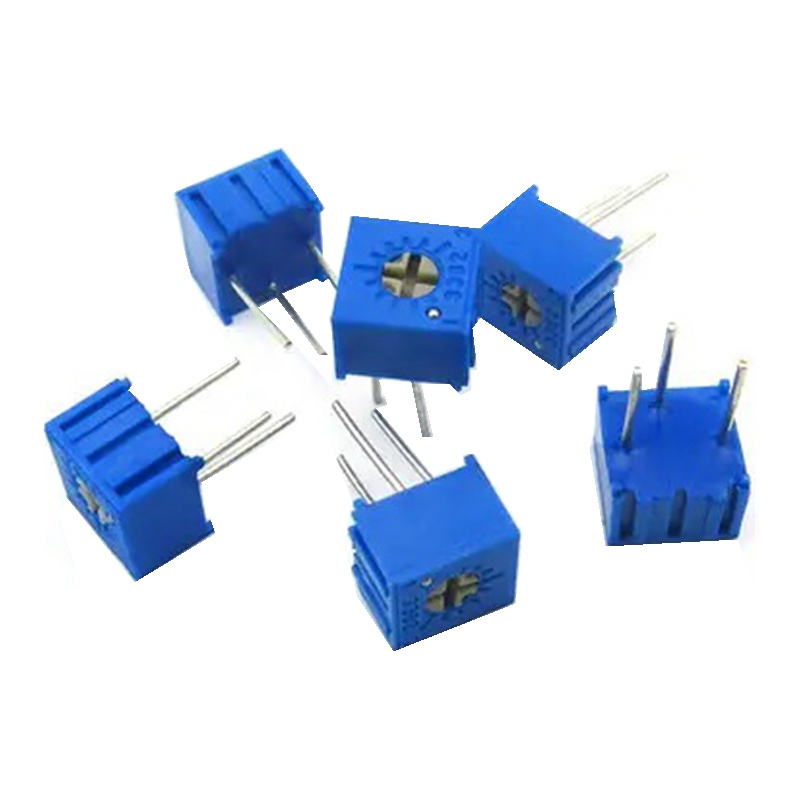

String Digital Potentiometer 500 Ohm 1/2W +/-10% 3362W-1-501LF Potentiometer Knob
Electrical Characteristcs
R ange of normal resistance:10 Ω—2MΩ
Resistance tolerance:±5%,±10%
Termial resistance:≤5%R or 5Ω
Contact resistance variation:CRV≤5%R or 5Ω
Winthstand Voltage: 101.3kPa 500V,8.5kPa 315V
Insulation resistance:Ri≥1GΩ(100Vac)
Effective electrical travel:210°±10°
Environment Characteristics
Rated Power ( (315V max):0.5W 70 ℃,0W 125℃
Temperature range:-55℃~+125℃
TCR: ± 100ppm/℃, ± 250ppm/℃
Temperature variation: Δ R≤ ± ( 2%R+0.1 Ω ), Δ (Uab/Uac)≤ ± 1%R
Collision: 390m/S 2 ,4000cycles ΔR ≤± 1%R
Electrical endurance at 70℃: 0.5W,1000h ΔR≤ ± 10%R Δ(Uab/Uac)≤10%
Mechanical Endurance: 200 cycles, Δ R≤ ± 10%R
Steady damp-heat: Δ R≤ ± 3 %R,R1≥100MΩ
| Color | White,blue and other colors |
| Resistance | 10 Ω to 2MΩ |
