Quick Details
-
Frequency:
-
50/60Hz
-
Welding Area:
-
12.5mm X 2
-
Usage:
-
HDPE, LDPE, PVC,EVA,PP,PVC welding
-
Weight (KG):
-
8.5 KG
-
Power (kW):
-
800w
-
Product name:
-
Plastic HDPE Geomembrane Welding Machine
-
Color:
-
Customer's Requirement
-
Function:
-
Welding
-
Application:
-
Portable Ultrasonic Spot Welding
-
Keyword:
-
HDPE Geomembrane Welding Machine
-
Type:
-
Welding Equipment
-
Machine Type:
-
Plastic Bag Making Machine
-
MOQ:
-
1 Set
-
For Application Range:
-
Plastc Welder
-
Material:
-
Stainless Steel
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Dajin
-
Voltage:
-
220V/110V
-
Frequency:
-
50/60Hz
-
Welding Area:
-
12.5mm X 2
-
Usage:
-
HDPE, LDPE, PVC,EVA,PP,PVC welding
-
Weight (KG):
-
8.5 KG
-
Power (kW):
-
800w
-
Product name:
-
Plastic HDPE Geomembrane Welding Machine
-
Color:
-
Customer's Requirement
-
Function:
-
Welding
-
Application:
-
Portable Ultrasonic Spot Welding
-
Keyword:
-
HDPE Geomembrane Welding Machine
-
Type:
-
Welding Equipment
-
Machine Type:
-
Plastic Bag Making Machine
-
MOQ:
-
1 Set
-
For Application Range:
-
Plastc Welder
-
Material:
-
Stainless Steel

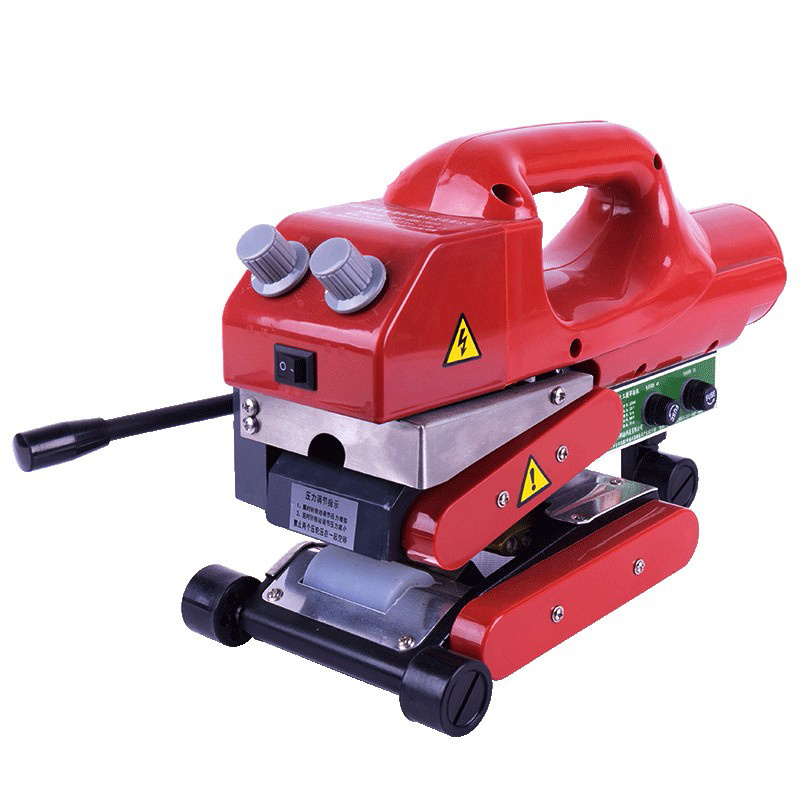

Plastic HDPE Geomembrane Welding Machine
Geomembrane welding machine is our new developed products,which can weld geomembrane of various thickness and are applicable for welding of all thermal-fused material such as LDPE,PVC,HDPE,EVA,PP and so on.
The control of this series of welding machine adopts PID automatic thermostatic control with high control accuracy and low temperature fluctuation;speed control adopts PWM automatic voltage and speed regulation circuit,driven by DC servo motor,with great output torque and the operating is stable.It can maintain a constant speed on the condition of creeping,vertical creeping and variable road load.Also this series of welding machine is stable in performance despite of external temperature and voltage variation.
This series of welding machine is excellent in performance and easy for operating,with high welding speed and good work quality.It is extensively used in engineering projects such as expressways,tunnels,reservoirs,waterproof of construction and so on.
1. Technical parameters
Voltage (V): 220V
Frequency (Hz): 50Hz
Power (P): 800W
Welding speed (V): 0.8-6m/min
Heating temperature (T): 0-450 ℃
Thickness of material to be welded: 0.2mm-2.0mm
Overlap width: 100mm
Welding width: 12.5mm×2, interior cavity 12mm
Seam strength: ≥85% base material (tensile resistant in shear direction),complete machine
Dimensions: L32 x W 15cm x H22cm
Net Weight: 4.8kg
Gross Weight: 8.5kg
Insulation class: class II
Aquaculture projects:fish ponds,shrimp ponds,industrialized aquaculture ponds,etc.
Environmental protection projects:Landfill,sewage treatment plants,power plant regulating pools,industrial and hospital solid wastes,etc.
Agriculture: Seepage control of reservoirs, reservoirs, irrigation systems, etc.
Petrifaction: Chemical plant,refinery,storage tank seepage control,chemical reaction tank,etc.
