Quick Details
-
Brand Name:
-
HE
-
Voltage:
-
220V 380V
-
Dimension(L*W*H):
-
7*0.6*0.5meter
-
Weight (KG):
-
2000
-
Power (kW):
-
5
-
Product Name:
-
Plastic Pelletizer Machine
-
Raw material::
-
stainless steel cooling belt
-
Keywords::
-
Mini Granulator Extruder Machine
-
Kw::
-
wax granulator making machine
-
Key word::
-
depilatory wax granules
-
Usage::
-
Sulfur, paraffin wax, petroleum resin, alcali sulphide
-
Application material:
-
paraffin wax, bee wax,resin,sulphur,asphalt,etc
-
Granule size:
-
4-8mm
-
Function:
-
wax pellet making machine
-
Name:
-
granulator machine
Quick Details
-
Output (kg/h):
-
100
-
Place of Origin:
-
Henan, China
-
Marketing Type:
-
Hot Product 2022
-
Brand Name:
-
HE
-
Voltage:
-
220V 380V
-
Dimension(L*W*H):
-
7*0.6*0.5meter
-
Weight (KG):
-
2000
-
Power (kW):
-
5
-
Product Name:
-
Plastic Pelletizer Machine
-
Raw material::
-
stainless steel cooling belt
-
Keywords::
-
Mini Granulator Extruder Machine
-
Kw::
-
wax granulator making machine
-
Key word::
-
depilatory wax granules
-
Usage::
-
Sulfur, paraffin wax, petroleum resin, alcali sulphide
-
Application material:
-
paraffin wax, bee wax,resin,sulphur,asphalt,etc
-
Granule size:
-
4-8mm
-
Function:
-
wax pellet making machine
-
Name:
-
granulator machine
Plastic Pelletizer Machine
Brief introduction of the Paraffin wax granule machine:
Rotary belt condensation granulator is using low melting point characteristic of the material (50 ℃ to 300 ℃)
Molten material through the special distributing device . Then distributing it on moving steel belt . Use the cooling device which at the bottom of steel belt . Then make the material condensation , solidification . granulation .
Feature:
1. Granulator size can be choose between 4mm -12mm . Shapes can make granule, strip and flake.
2.Equipment adopts frequency control, can choose a suitable speed according to the nature of the material.
3.Product uniform particles, and beautiful, forming rate above 95%.
4.Widely used van, melting point of material between 50 ℃ to 300 ℃, all can granulation forming, toxic materials can be closed.
Use scope:
This machine can be producing ,paraffin wax, palm wax, depilatory wax, petroleum resin, beeswax, alcali sulphide, rosin,C5, C9 resin, C5C9 polymer resin; Asphalt, maleic anhydride, hot melt adhesive, rubber and plastic additives, antioxidant, antiager, all kinds of additives, etc.
The technical parameters of the Mini Granulator Extruder Machine Sulphur Wax Granules Making Machine Urea Melting Granulation Machine
|
Model |
HZ-40 |
HZ--60 |
HZ--120 |
|
Steel belt |
Width:0.4m, Length 14m |
Width:0.4m, Legnth 24mm |
Width:0.6m,Length28m |
|
Machine width |
600mm |
600mm |
800mm |
|
Machine length |
7m |
12m |
14m |
|
Size of mold |
1.8-2.5 mm |
1.8-2.5 mm |
1.8-2.5 mm |
|
Size of products |
4-12mm (adjust) |
4-12mm (adjust) |
4-8mm (adjust) |
|
Product's shape |
hemispherical |
hemispherical |
hemispherical |
|
Capacity |
50-100kg/h |
100-300kg/h |
400-600kg/h |
|
Motor |
5kw+1.5kw |
5kw+1.5kw |
4kw+1.5kw |
|
Voltage |
110v/220v/380v |
110v/220v/380v |
110v/220v/380v |
These are different products this machine can granulate.

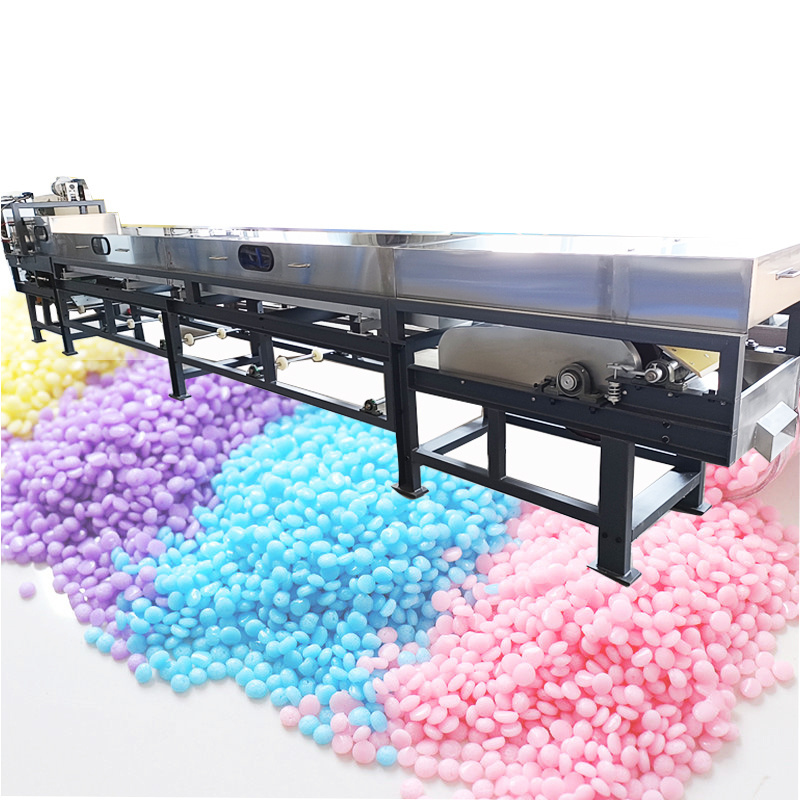

Paraffin wax machine mini granulator wax granules making machine photos :
Supporting equipment:
Reactor+
Heat conduction oil furnace+Heat conduction oil pump
Schematic diagram
Installation site :
